Chapter 2: Installation
2-13
Installing and Removing DIMMs
2-5 System Memory
CAUTION
Exercise extreme care when installing or removing
DIMM modules to prevent any possible damage.
How to Install SO DIMMs
1. Insert the desired number of SO DIMMs into the memory slots, starting with
DIMMA1, then DIMMB1. Pay attention to the notch along the bottom of the
module to prevent incorrect DIMM module installation.
2. Insert each SO DIMM module vertically and snap it into place. Repeat step 1
to install DIMMB1 if needed. See instructions on the next page.
Memory Support
The X10SLV/-Q Motherboard supports up to 16GB of unbuffered DDR3 non-ECC
SODIMMs (up to 1600 MHz in 2 SODIMM slots).
Note: Check the Supermicro website for a list of memory modules that
have been validated with the X10SLV/-Q Motherboard.

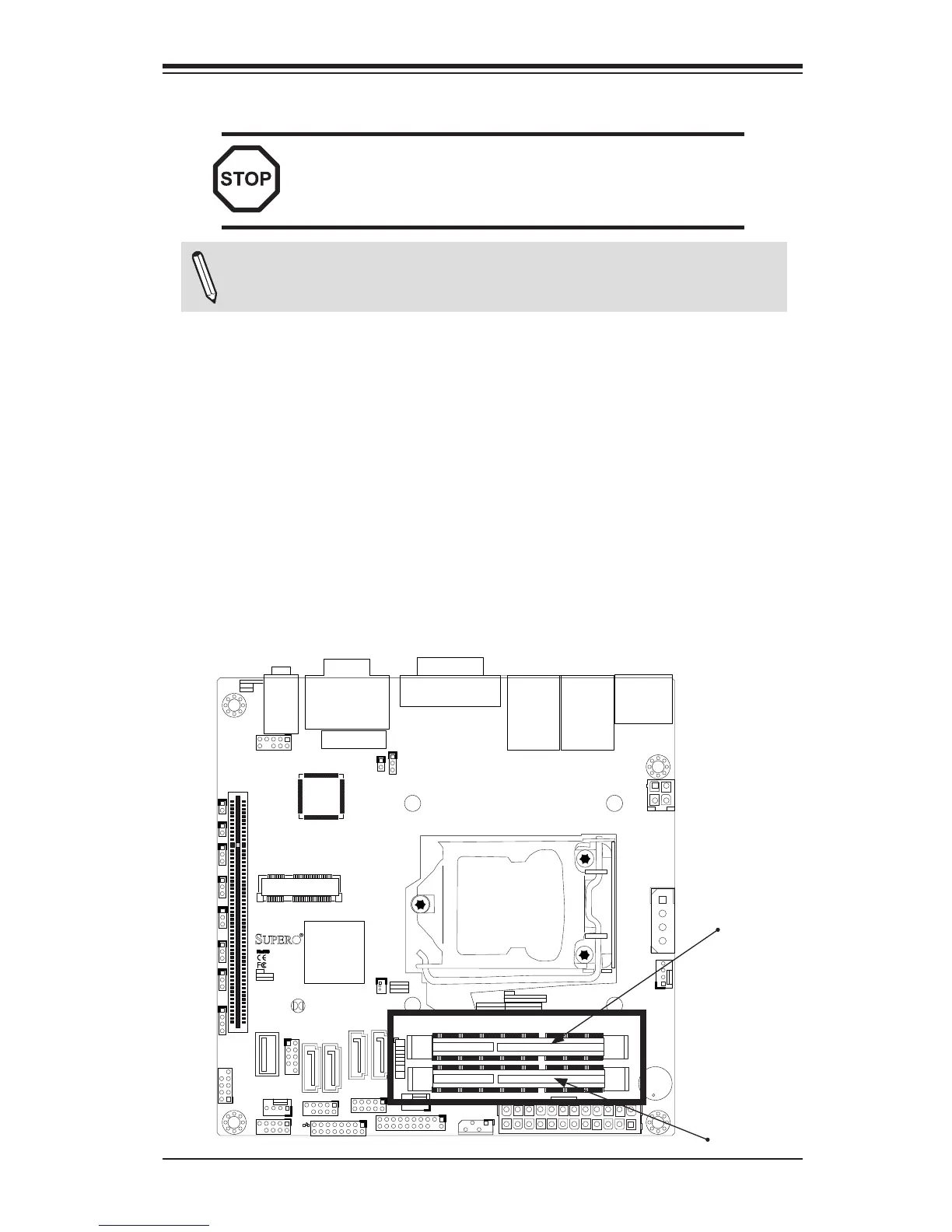

DIMMA1
DIMMB1
To Next Page
