6.4 System Installation

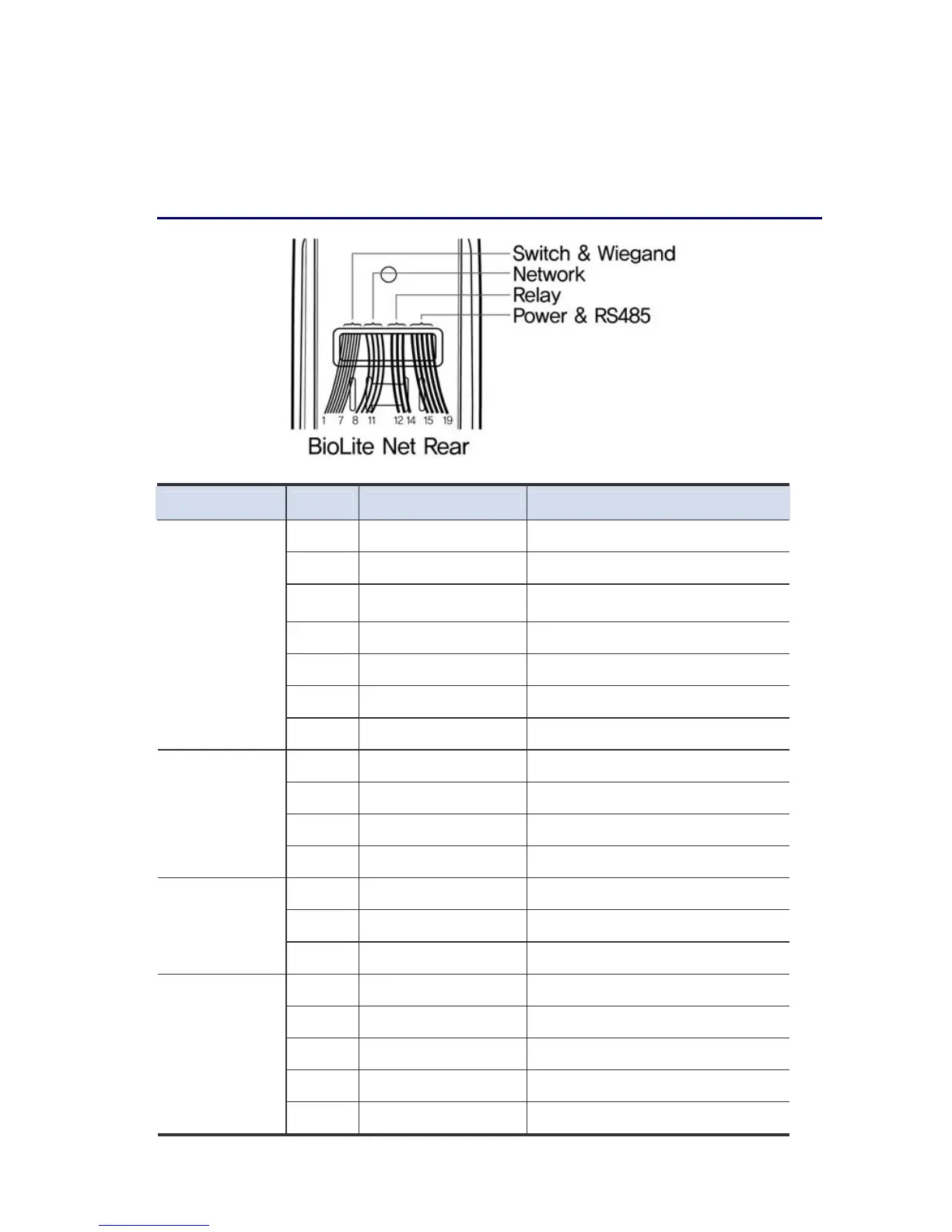

6.4.1 Cable specifications
Type No. Name Color
1 SWIN0 Purple
2 GND Gray
3
SWIN1 Brown
4 GND Gray
5 W-DATA0 Green
6 W-DATA1 White
Switch
&
Wiegand
7 W-GND Black
8 ERX - Yellow
9 ERX + Blue
10 ETX - Orange
Network
11 ETX + Pink
12 Relay Normal Close Orange (White String)
13 Relay Common Green (White String)
Relay
14 Relay Normal Open Gray (White String)
15 Power 12V Red
16 Power Ground Black
17 RS485 Ground White (Black String)
18 RS485 + Blue (White String)
Power
&
RS485
19 RS485 - Yellow (Black String)
