66

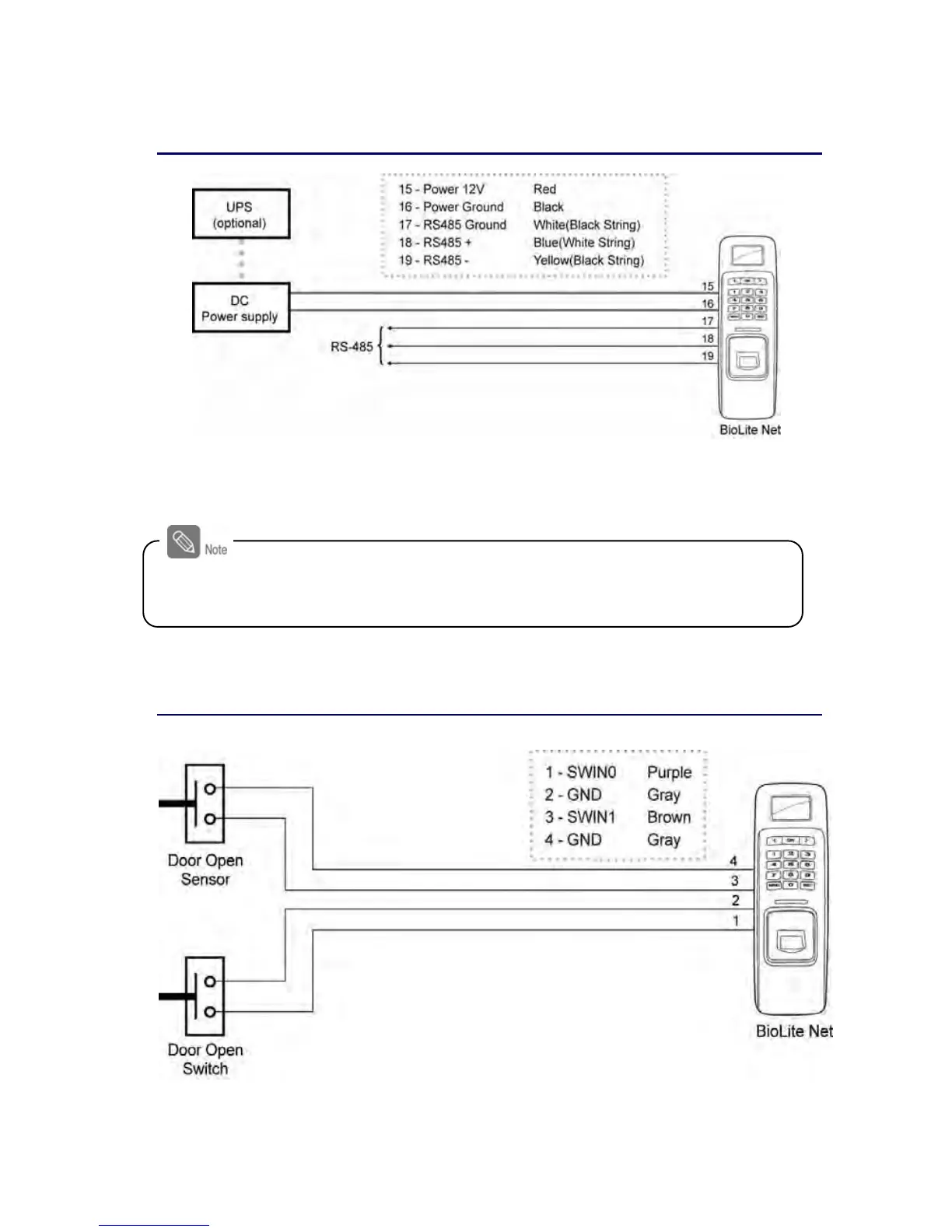

6.4.3 Connecting Power & RS-485
※RS-485 is used for connecting to another device
(e.g. PC, BioStation, BioEntry Plus, BioLite Net, Secure I/O, etc.).
6.4.4 Connecting the switch
For power supply, use a product of DC 12V (± 10%) and minimum 500mA.
To share the power adapter with another device, the required current sum of terminal (500mA)
and another device must not exceed the current capacity.
