5. Fuel Injection System
5-53

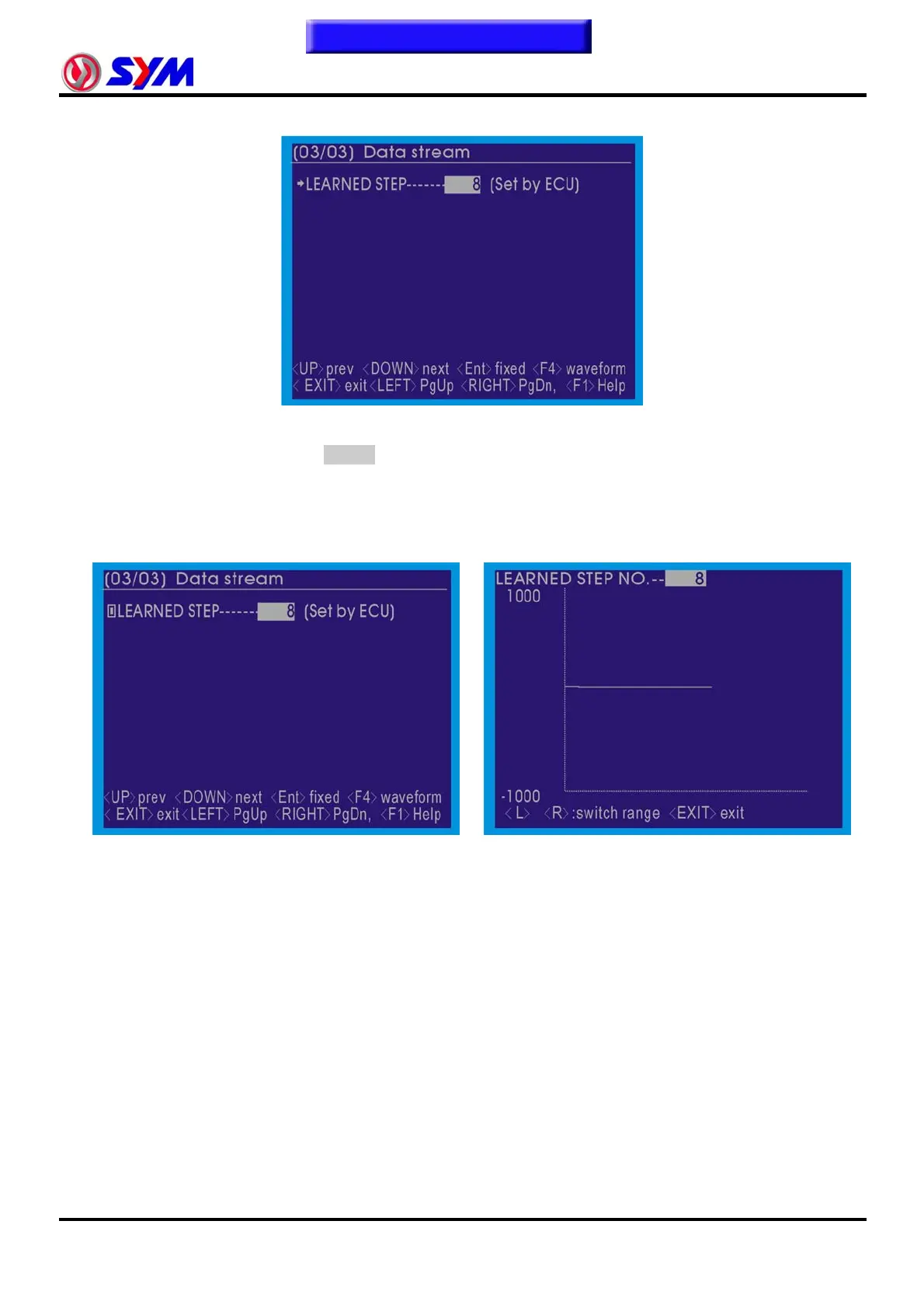

Data stream (3/3)
The screen showed the ECU captured by the engine of the state immediately.
The following data for the benchmark idling state:
● LEARNED STEP--------------- (Set by ECU) →Idle Air Control Valve stepper motor learning
step
In the "DATA STREAM" of the screen use "▲" "▼" button to move the left side of the project "→"
symbol selected items, press the "ENTER" buttom lock of the project, and press the "F4" button
showed that the wave of projects.
Able to use "◄ left" and "right ►" button, can transform View wave numerical size.
Numerical analysis of images (3 / 3), the waveform can be displayed as shown in the following items:
y LEARNED STEP NO.
