6. Loosen the allen screw on the lower die (see
Figure 5.6), then lift the inner core out of the
die.

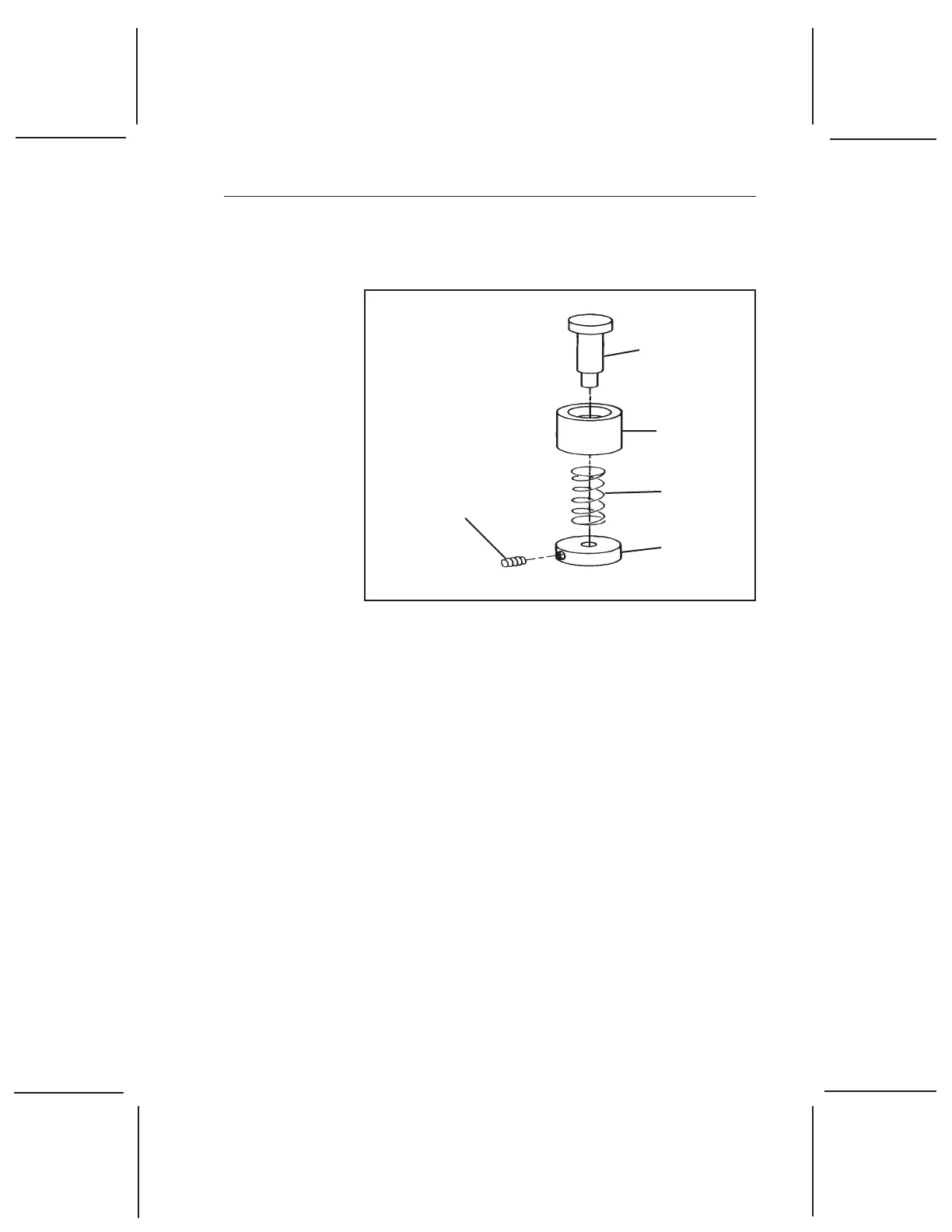

Figure 5.6
Removing the
Inner Core from
the Lower Die
7. Insert the new inner core (included with the
Autosampler CEsee Figure 5.7) into the
die. Retighten the allen screw.
ALLEN SCREW
BASE
SPRING
OUTER SHAFT
INNER CORE
Installing the Crimping Die
