Calibrating the Autosampler CE
4–12 TA I NSTRUMENTS DSC A UTOSAMPLER CE

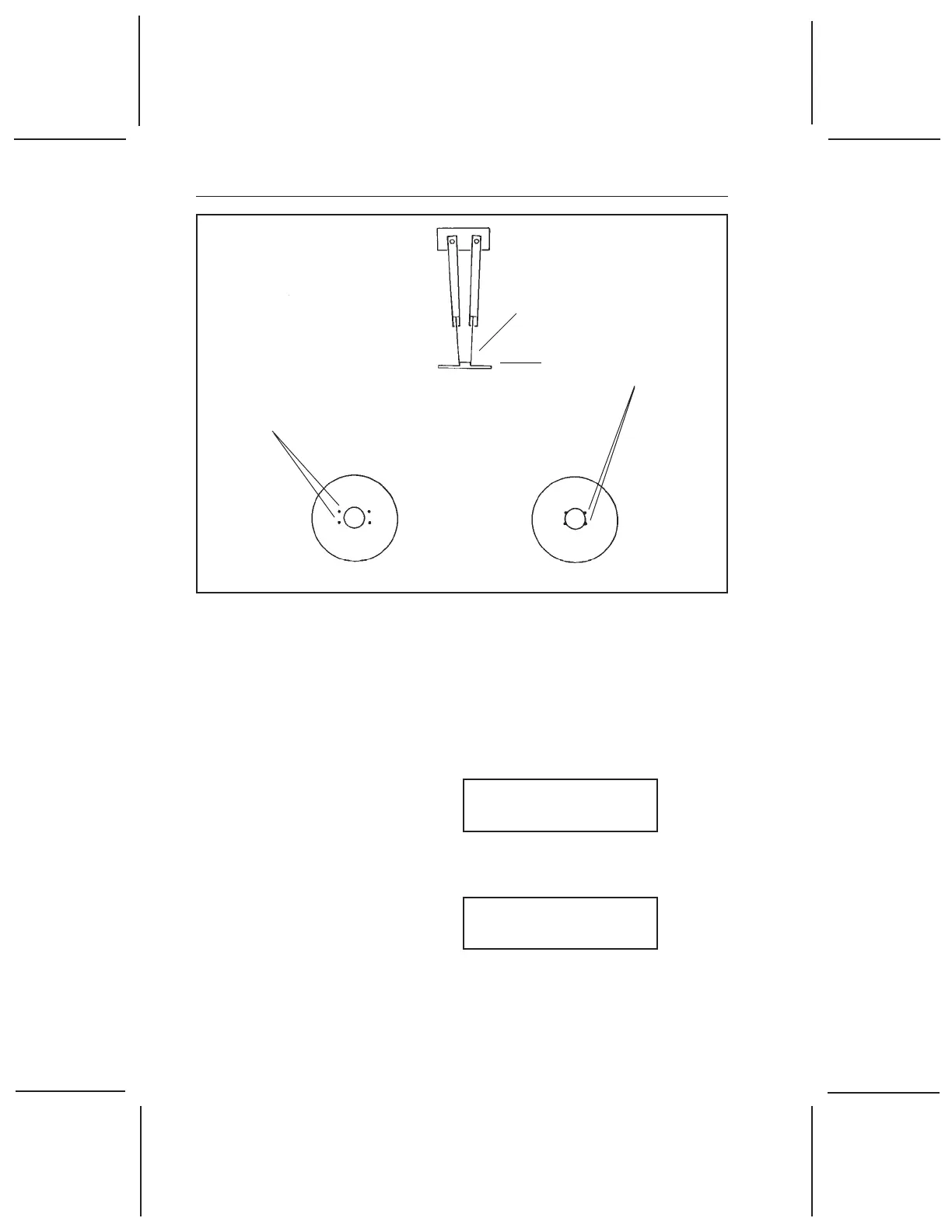

Figure 4.1
Calibrating a
Cell Lid Position
8. When you are satisfied that the lid is prop-
erly positioned, press the CALIBRATE key
until you see the correct cell lid position on
the display:
Calibrate/Verify
Lid #1 Cell
9. Press ENTER. The screen displays:
Verify (1) or
Store (2) ? 1
LID
IN OPEN
POSITION,
FINGERS
SHOULD BE
EQUIDISTANT
FROM THE
KNOB ON
THE LID.
ALL FOUR
FINGERS
SHOULD
CONTACT
THE LID
AT THE
SAME TIME
WHEN YOU
PRESS THE
GRIP KEY.
GRIPPERS
SIDE VIEW
TOP VIEW
