Calibrating the Autosampler CE
4–22 TA I
NSTRUMENTS
DSC A
UTOSAMPLER
CE

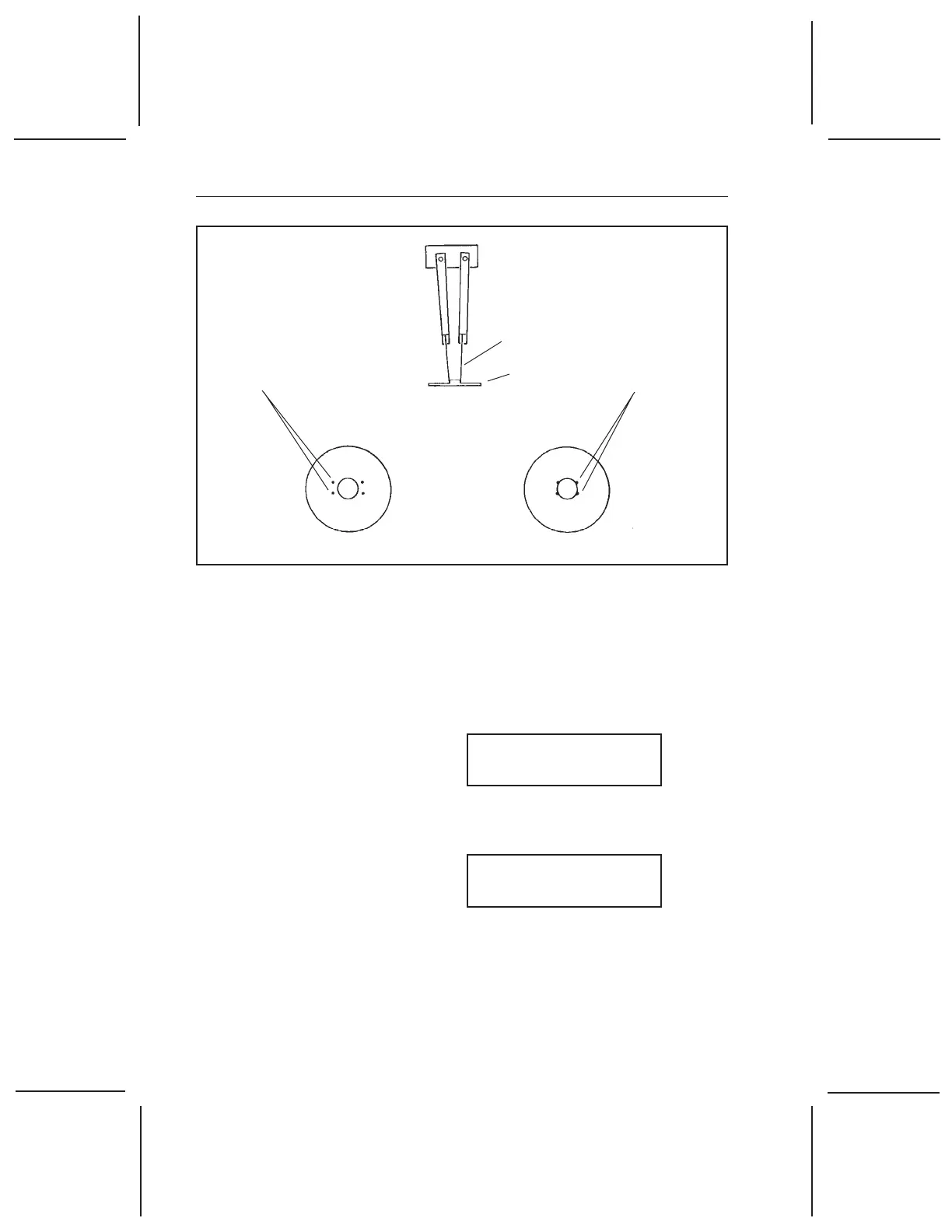

Figure 4.3
Calibrating a Lid
Storage Position
5. Press the CALIBRATE key repeatedly until
you see the correct lid storage position on
the display:
Calibrate/Verify
Lid #1 Storage
6. Press ENTER. The screen displays:
Verify (1) or
Store (2) ? 1
7. Select option 2 (Store) to store the calibra-
tion position (press the 2 key, then press
ENTER).
GRIPPERS
LID
SIDE VIEW
TOP VIEW
IN OPEN POSITION,
FINGERS SHOULD BE
EQUIDISTANT FROM
THE KNOB ON
THE LID.
ALL FOUR FINGERS
SHOULD CONTACT
THE LID AT THE
SAME TIME WHEN
YOU PRESS THE
GRIP KEY.
