Calibrating the Autosampler CE
4–26 TA I NSTRUMENTS DSC A UTOSAMPLER CE

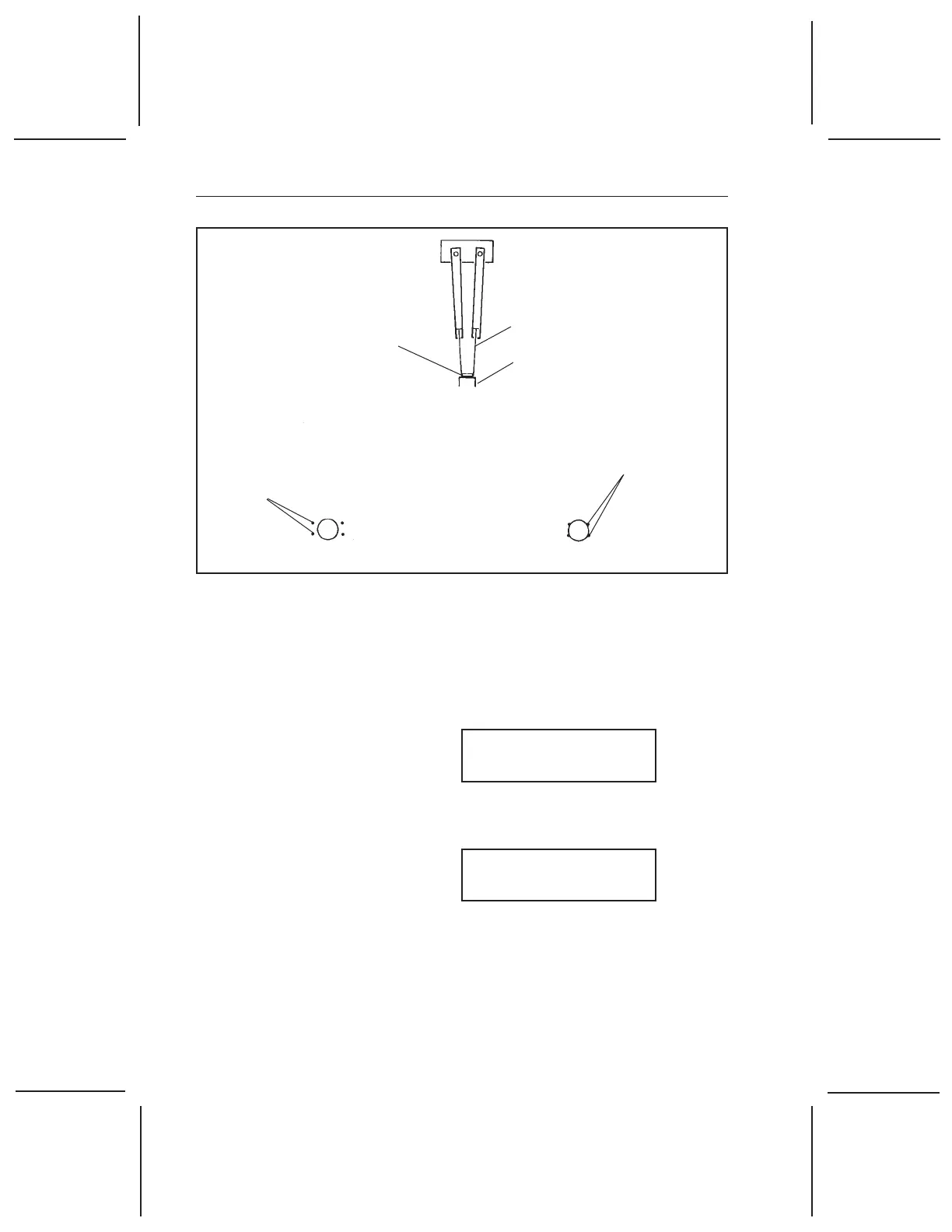

SIDE VIEW
SAMPLE TRAY
PEDESTAL
GRIPPERS
PAN
TOP VIEW
IN OPEN POSITION,
FINGERS SHOULD BE
EQUIDISTANT FROM
THE PAN.
ALL FOUR FINGERS
SHOULD CONTACT
THE PAN AT THE
SAME TIME WHEN
YOU PRESS THE GRIP
KEY.
Figure 4.4
Calibrating a Tray Position
6. Press the CALIBRATE key repeatedly until
you see the correct tray position on the
display:
Calibrate/Verify
Tray Pos. #1
7. Press ENTER. The screen displays:
Verify (1) or
Store (2) ? 1
