Starting the RSA-G2
When all of the connections have been made between the test station, oven, power supplies, network, and
any environmental system accessory; and the transducer and motor are unlocked, you can turn the power
on.
NOTE: Ensure that the router is on first before powering on the RSA-G2; this is so an IP address can be
generated for the RSA-G2.
1 If necessary, plug the power cord from the lower power supply module into the power source for the room.
2 Turn the power switch on the back of the lower power supply module to the On position (|). After this
is done, the LED near the Standby button on the keypad should be solid red.
3 Press the standby button on the test station front panel (shown in the figure below). The instrument power
status light blinks until the instrument comes up to full power. The light shows a steady green when the
instrument is ready to be used. When the instrument is powered up, the motor becomes energized and
automatically moves to its zero position. Do not impede its movement while this is happening.
See Chapter 3
for basic information on using the RSA-G2. For additional details, refer to TRIOS software
Help.

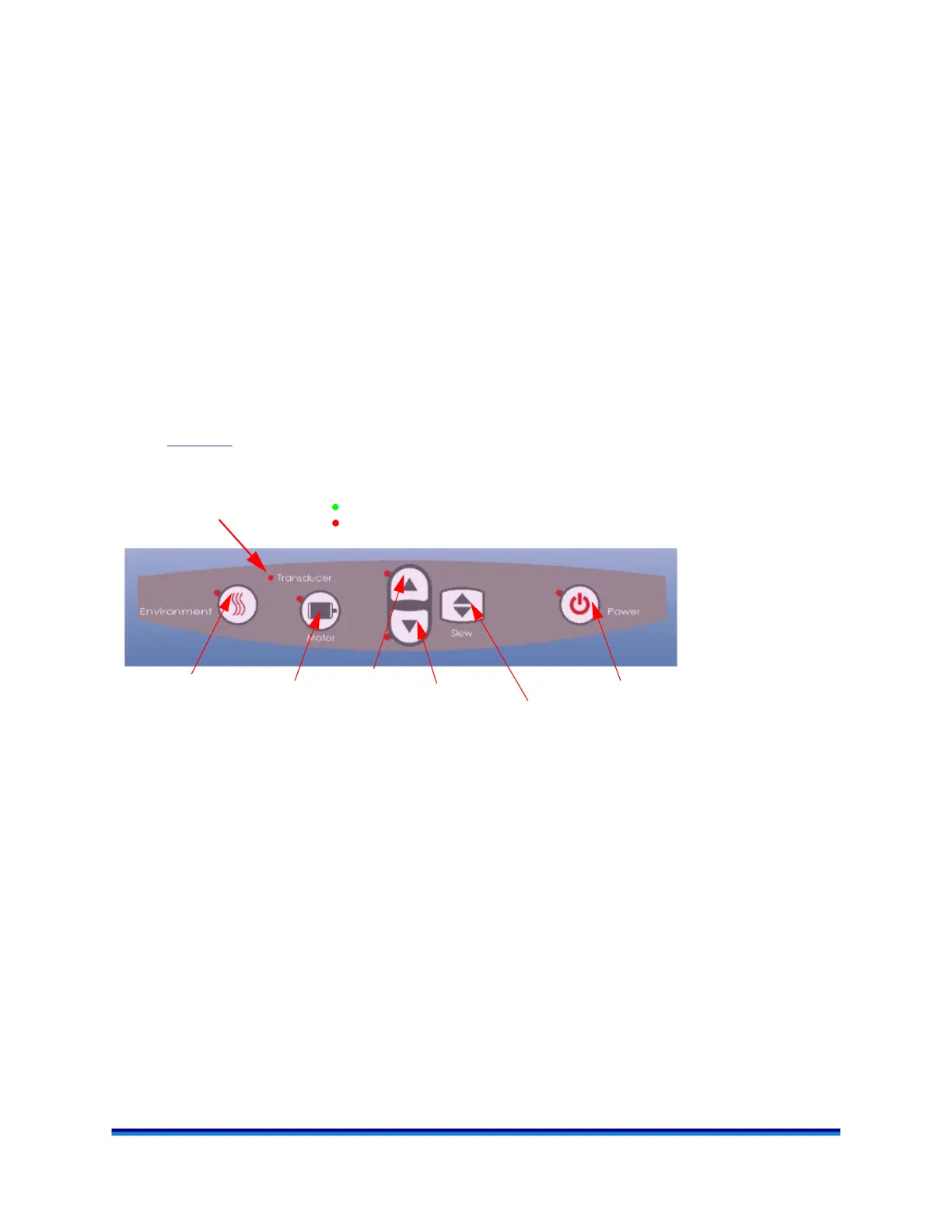

Figure 35 RSA-G2 keypad.
Environment
Motor button
button
Stage up
Stage down
Slew button
Standby button
Indicator lights:
Red—function is off
Green—function is on
Transducer light
