RSA-G2 Getting Started Guide Page 42
Test Station (Lower) Power Controller
To connect the power supply, follow these steps:
1 Using the grip holds to move the test station power supply, place it on the floor close to the RSA-G2.
Make sure you have access to the rear of the power supply and the RSA-G2. See the figure below. (The
connections are already made in the figure.)

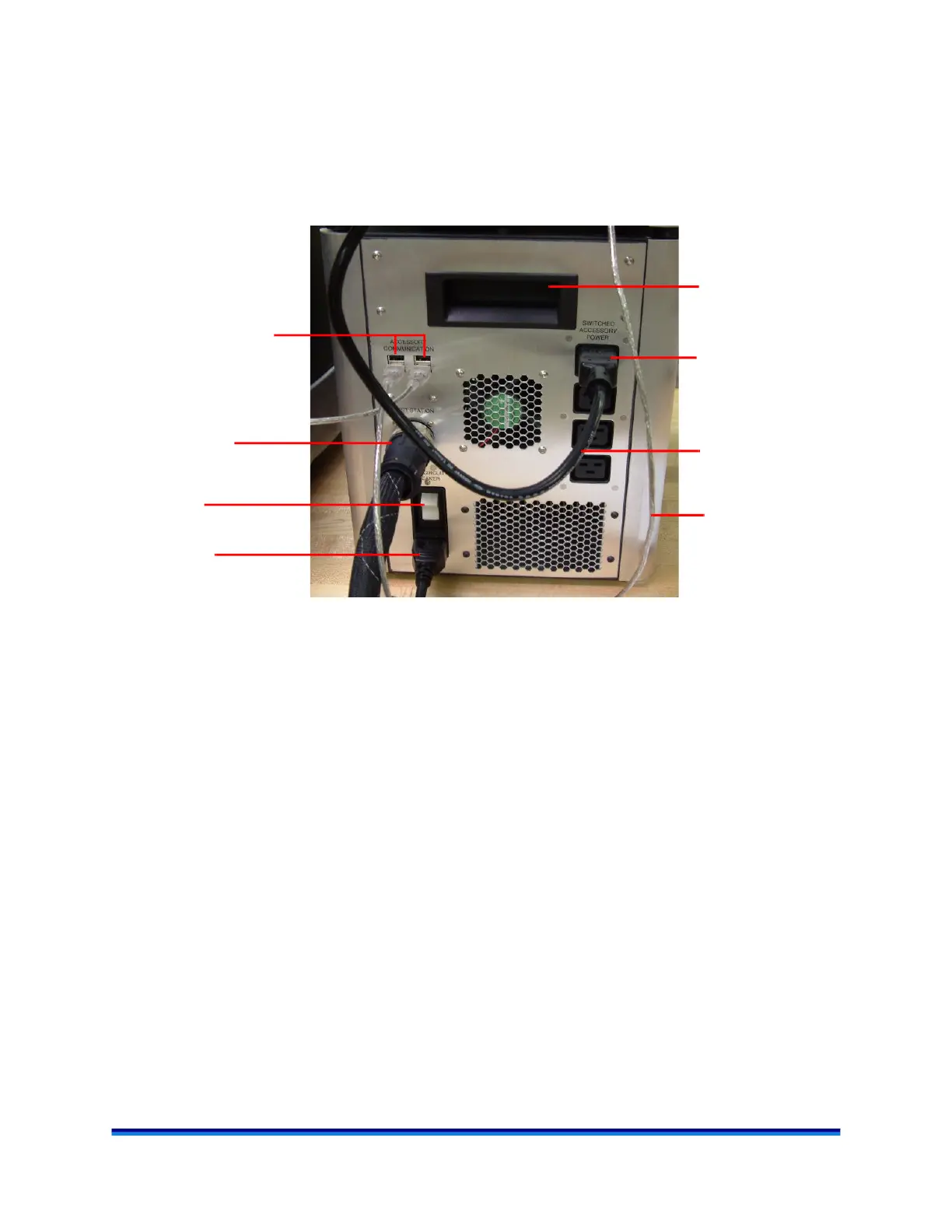

Figure 23 Test station power supply.
2 Obtain the accessory cable(s) from the accessory kit(s). Connect each cable to any of the four accessory
connections. These will be connected to the upper power supplies (up to four upper power supplies can
be connected).
3 Connect one end of the large multi-pin cable to the test station connector. The other end will be connected
to the RSA-G2 test station later in this manual.
4 Plug in up to four accessory power cables to any of the switched accessory power outlets. These will be
connected to the upper power supplies (from one to four upper power supplies can be connected).
5 Connect a power cable to the connector below the power switch, but do not connect this cable to the
main power supply at this point.
6 Install any optional upper power supply units, such as the FCO or environmental control power supplies.
Accessory connections
Connection to the
RSA-G2 test station
Power switch
Power cable to
main source
Grip hold
Switched accessory
power outlets (4)
Power cable to FCO
power supply
Accessory cable to
FCO power supply
