Accessories
Revision G Issued May 2022

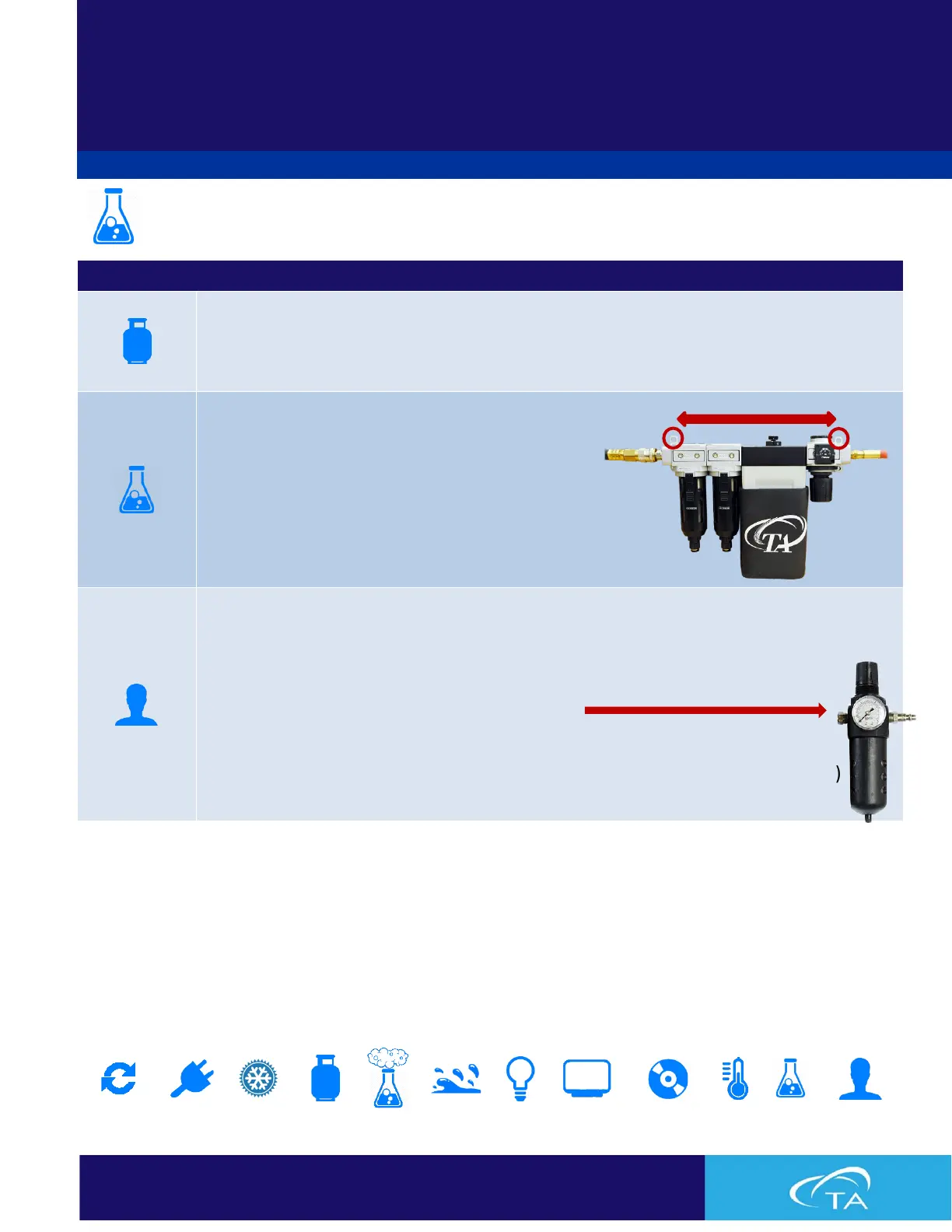

AIR DRYER REQUIREMENTS
• Inlet air: 100–130 psig (0.7–0.9 MPa); air temperature ~ 20°C; Relative Humidity
of 70% or less at RT with particle size of 5 microns (0.0002 in) or less
• Air source into dryer should be oil-less compressed air
• The dryer weighs 3.2 kg (7 lbs).
• It has two mounting holes 22.3 cm (8.8 in)
apart
• Must be mounted upright to the wall
within 183–244 cm (6–8 ft) of the air
source
• Means to connect to a 3/8” NPT male connector on the inlet hose (provided by
TA Instruments) of the air dryer
• Gauge to monitor the air into the air dryer
• Water trap if there is excessive moisture levels that result in immediate
condensation into water (installed by Customer’s maintenance personnel)
Circulator Power Cooling Gas LN
2
Fluid Light Hardware Software Temp Lab Customer
