Accessories
Revision G Issued May 2022

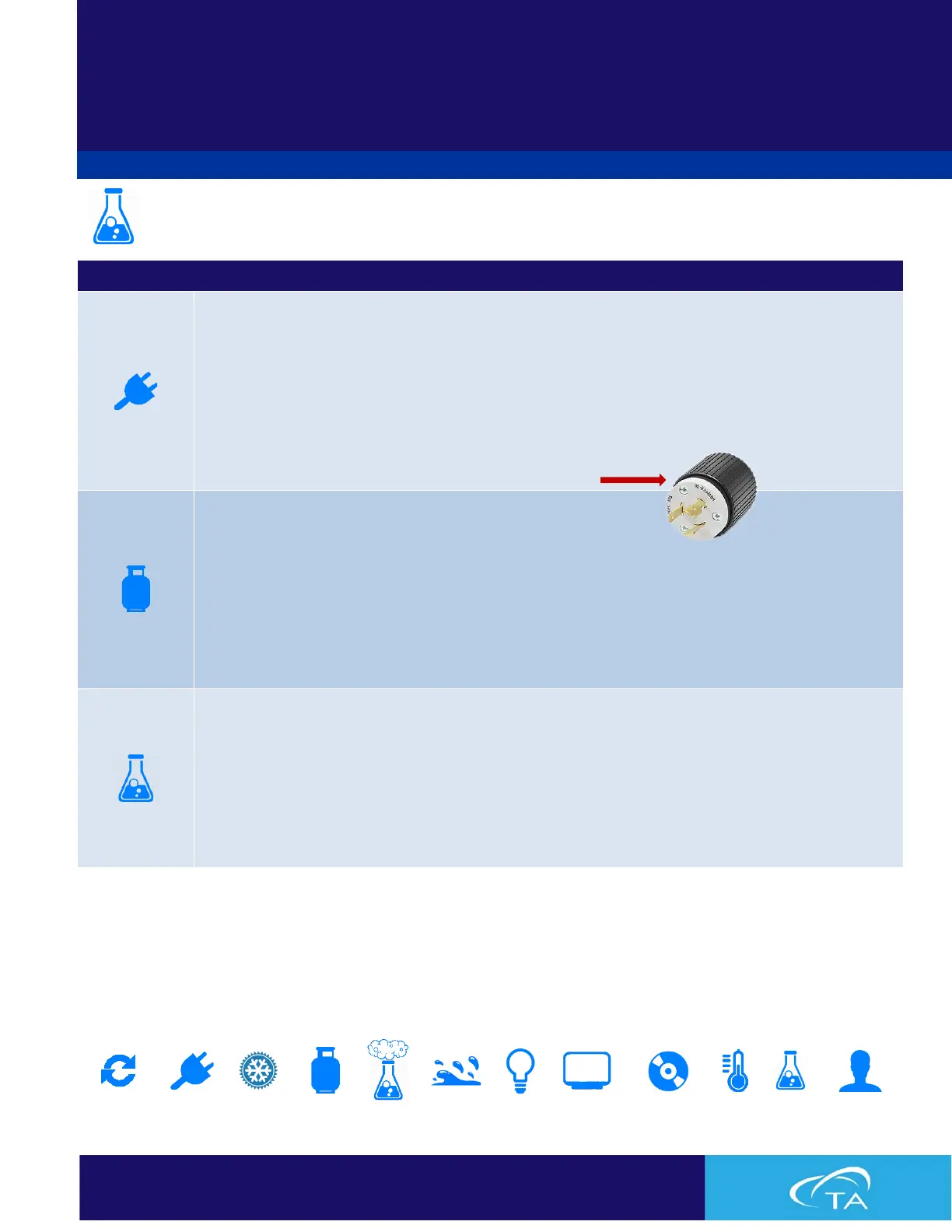

AIR COOLING SYSTEM REQUIREMENTS
• 50 Hz: 207–252 VAC (refer to the serial number plate on the rear of the unit. The
ACS is line frequency specific.)
• 60 Hz: 216–252 VAC (refer to the serial number plate on the rear of the unit. The
ACS is line frequency specific.)
• 8A, 9A, 9.1A, or 11A (refer to the serial number plate on the rear of the unit)
• US sites require an L6-20 single-phase outlet
• Gas:
• Air or nitrogen
• Pressure: 6.9 bar (100 psig)
• Flow rate: 200 L/min
• Temperature: 20–30°C
• Dew point: Must not exceed the ambient air temperature by more than 5°C.
Specified at operating pressure.
• Lab Environment: (must be below 25°C):
• 12°C–21°C = Acceptable
• 21°C–24°C = Ideal
• Leave 20 cm (8 in) of space in the front and back of the ACS for ventilation.
• 4 ft
2
required floor space for the ACS.
Circulator Power Cooling Gas LN
2
Fluid Light Hardware Software Temp Lab Customer
