RSA-G2 Getting Started Guide Page 16
RSA-G2 Touch Screen
The RSA-G2 has an integrated touch screen display for local operator control. Interactive functions such as
gap zeroing, sample loading, and setting temperature can be performed at the instrument. The functions
shown on the screen change depending upon the menu being used. This section briefly describes the
interactive functions shown on the touch screen displays.
NOTE: For detailed information on the functions performed with the touch screen not found in this
manual, see TRIOS software online help.
The RSA-G2 Instrument Touch Screen
The Instrument tab of the touch screen displays the main instrument functions and gauges. This allows
you to monitor the motor position, normal force, gap, temperature, and data zones and points. Buttons on
the screen are available to perform gap control, set the temperature, and stop the test.

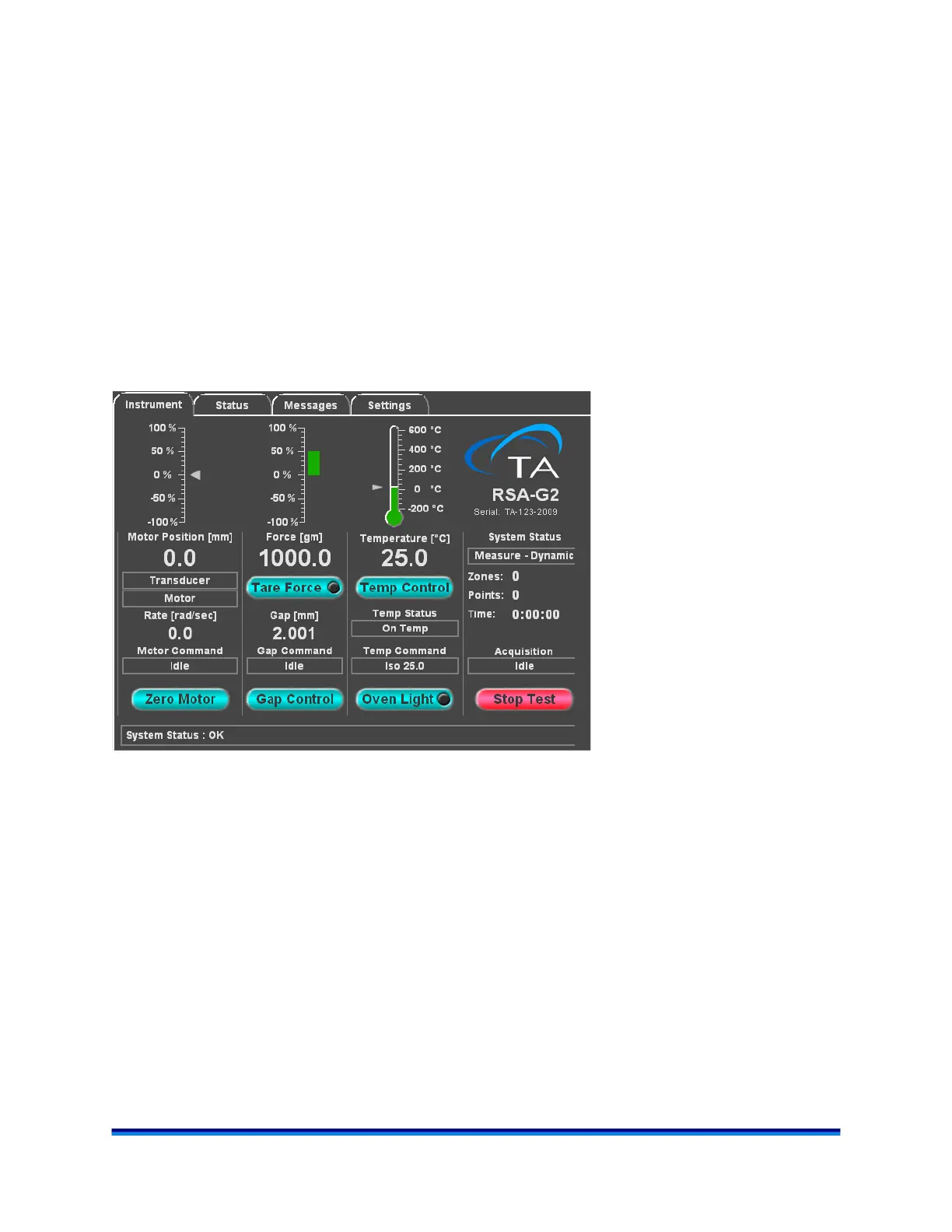

Figure 3 RSA-G2 Instrument touch screen.
