RSA-G2 Getting Started Guide Page 18
The RSA-G2 Settings Touch Screen
The Settings tab is used to identify your RSA-G2 instrument, its location, and network (IP) address infor-
mation. In addition, you can adjust FCO camera focus and light and calibrate the touch screen.

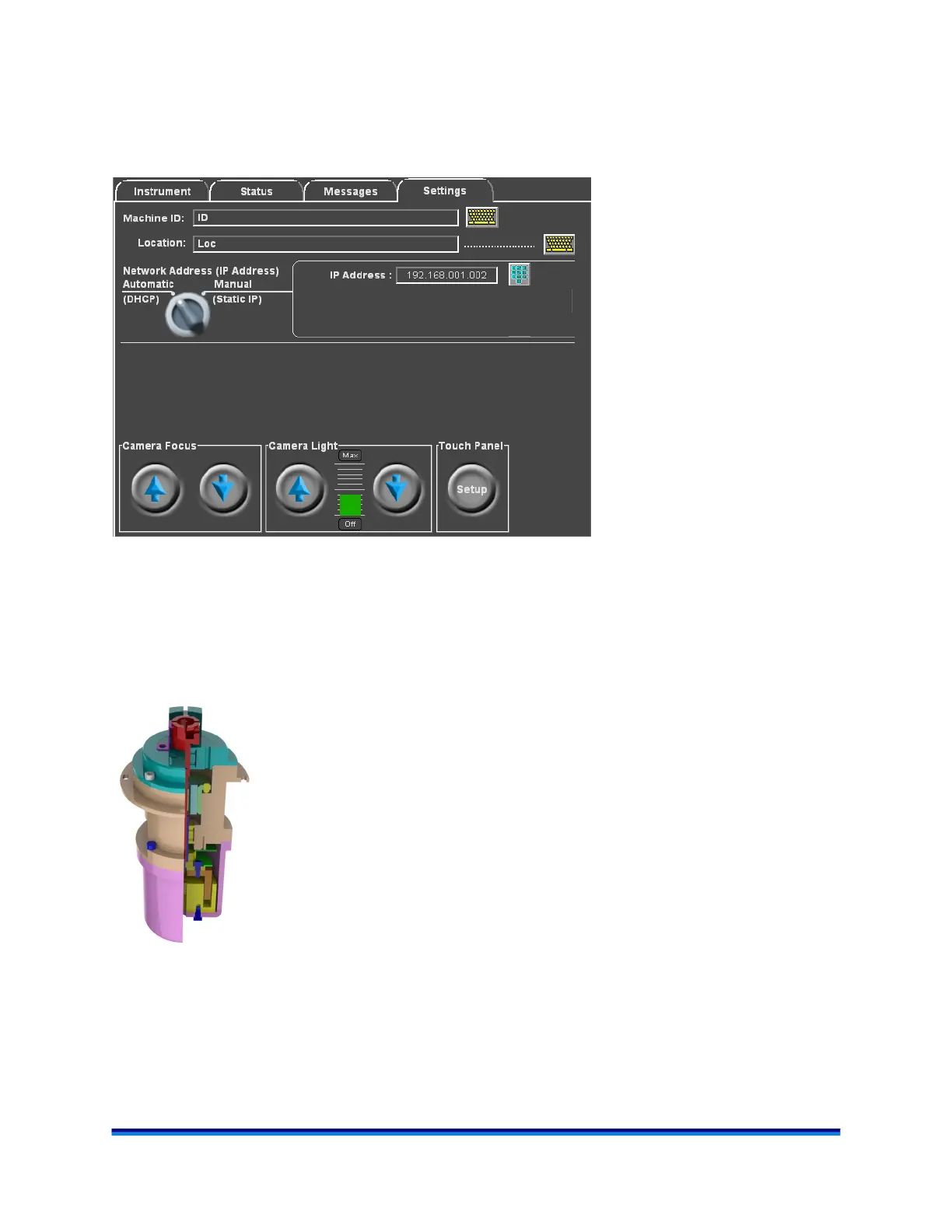

Figure 6 RSA-G2 Settings touch screen.
Linear Transducer
The RSA-G2 utilizes a Force Rebalance Transducer (FRT), shown below, to measure axial force generated
by the sample.
Figure 7 RSA-G2 linear transducer.
