RSA-G2 Getting Started Guide Page 43
FCO Controller Power Supply
To connect the FCO power supply, follow these steps:
1 Place the FCO controller power supply on top of the test station (lower) power supply or on top of a
previously installed environmental control power supply within the limit of the cable length. Make sure
you have access to the rear of the power supply and the RSA-G2. See the figure below.
2 Obtain the loose end of one of the accessory cables that has already been connected to the lower power
supply (see step 2
on the previous page), and insert it into the accessory port on the FCO power supply.

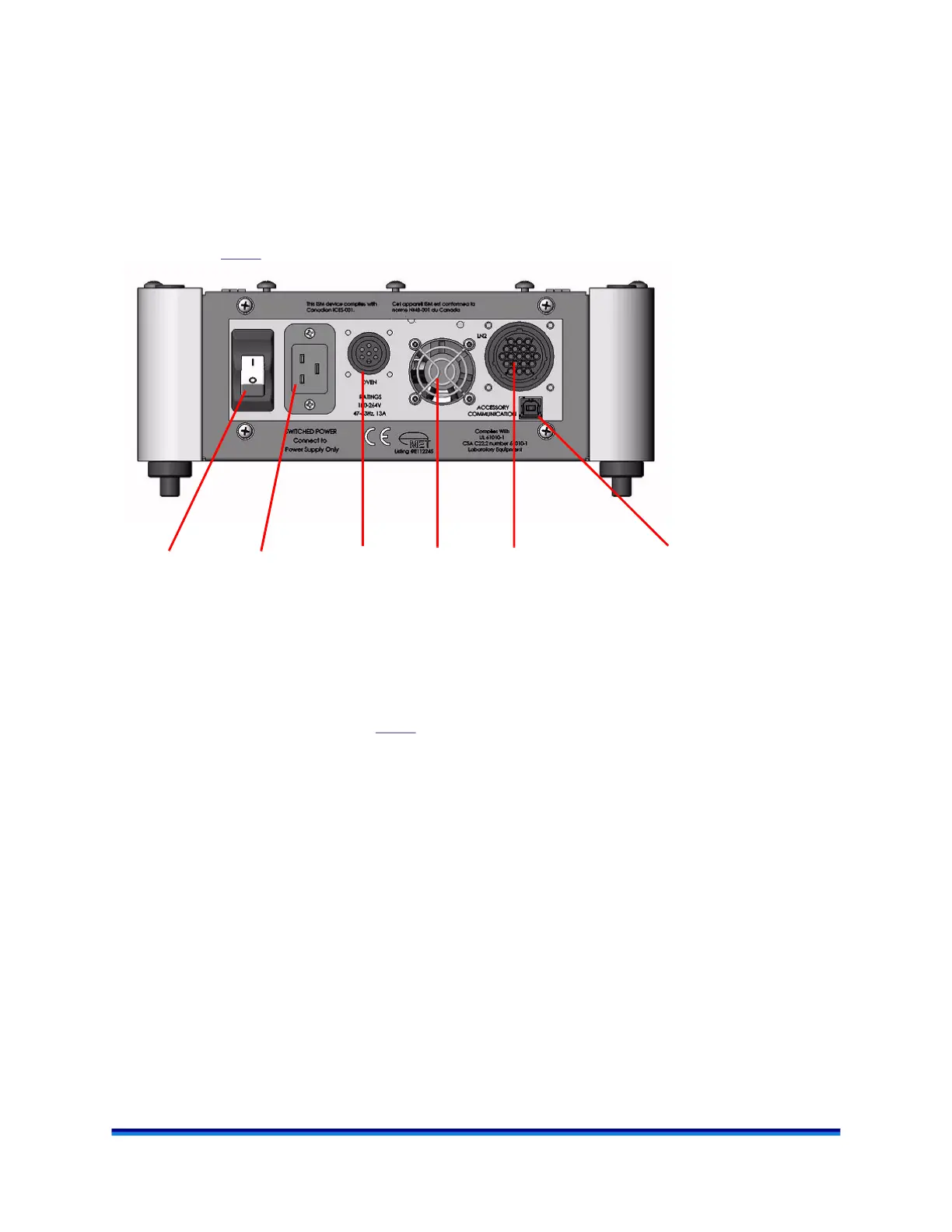

Figure 24 FCO controller power supply.
3 Oven: Connect the power cable from the oven to the connector to the left of the fan.
4 Obtain the loose end of one of the power cables that are already connected to a switched accessory power
outlet on the lower power supply (step 4
in the previous section). Connect this to the power inlet next
to the power switch on the FCO power supply.
5 Using the grip handles, position the power supplies as desired. (They may be placed on the floor or on
the table top.)
6 Proceed to the next sections to connect the LN2 accessory and/or another power supply box, if applicable.
DO NOT switch on the power supply at this point.
Power
switch
Accessory
power cord to
switched mains
Power
cable to
oven
Fan
Power cable to
LN2 Controller
Accessory
communication
to test station
power supply
