RSA-G2 Getting Started Guide Page 48
Leveling the RSA-G2
The RSA-G2 is leveled using the feet, or levelers (shown below), located on each corner. Note that the
right-rear leveler is fixed in position; do not attempt to adjust this leveler.
Clockwise rotation of the leveler extends it, raising the instrument at its location.
Counterclockwise rotation of the leveler retracts it, lowering the instrument at its location.

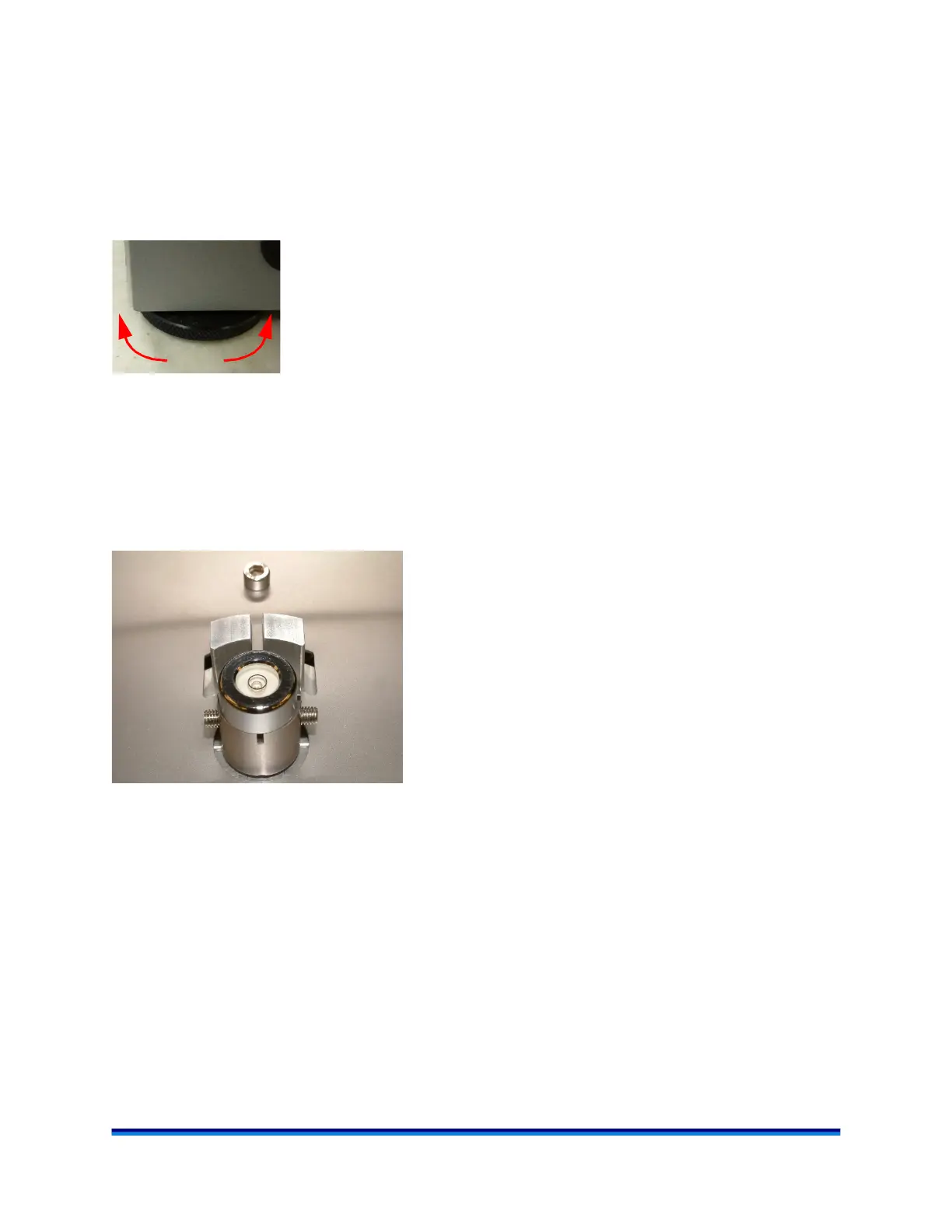

Figure 30 RSA-G2 leveler.
Follow the instructions below to perform this procedure.
1 Make sure that the air is on and the motor is unlocked.
2 Place the supplied bull’s eye level on top of the motor mount.
Figure 31 Bull’s eye level placed on lower geometry.
3 Retract all three (3) levelers by turning them counterclockwise until the instrument is lowered as far as
possible.
Clockwise
Counterclockwise
