RSA-G2 Getting Started Guide Page 45
Setting Up System Communication
The instrument and controller (computer) will be connected to a router. Make the cable connections
described below to set up the router.
This section also covers how to connect the system to a LAN.

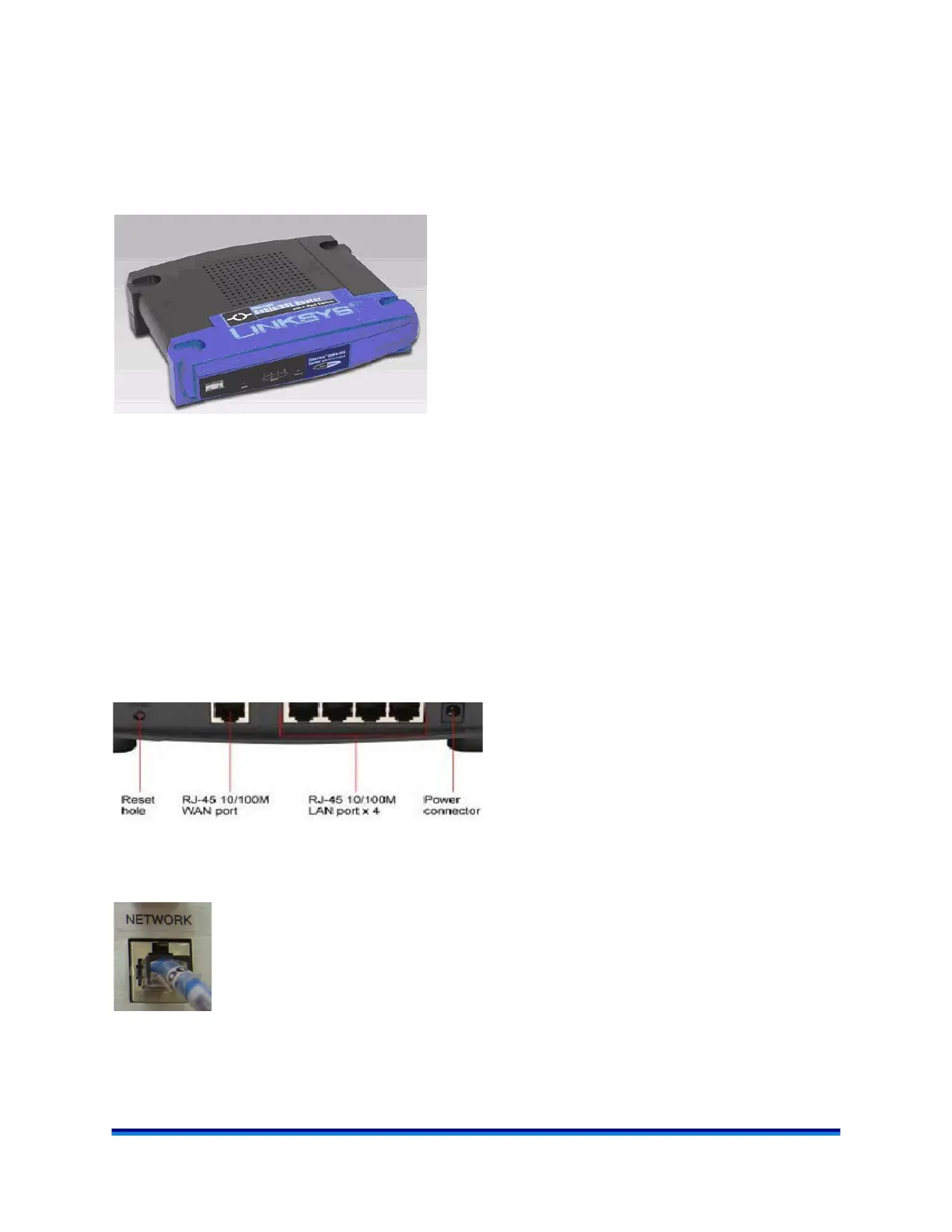

Figure 26 Router.
1 On the RSA-G2 touch screen display, press the Display Settings tab and ensure that the software knob
is set for DHCP.
2 Using keyboard icons, enter the Machine ID and Location.
3 Power down the RSA-G2.
4 Make sure the host computer LAN is set for DHCP.
5 Ensure that TRIOS Instrument Control Software is installed on the controller computer.
6 Connect Ethernet cables to two of the router LAN ports. For this configuration, no connection is made
to the routers WAN port.
Figure 27 Router ports.
a Connect one Ethernet cable to the RSA-G2 NETWORK port.
Figure 28 Ethernet connection.
b Connect the other Ethernet cable to the host computer Ethernet port.
To Next Page
