5:2 (8), 0-004-7614-0 (GB) TAC AB, 1998-10-23
TAC 2413 Handbook Installation
The controller can be mounted in three different ways:
• Directly on a wall
• On a norm rail EN 500 22 (TS 35 mm)
• In a panel, with or without a backplate

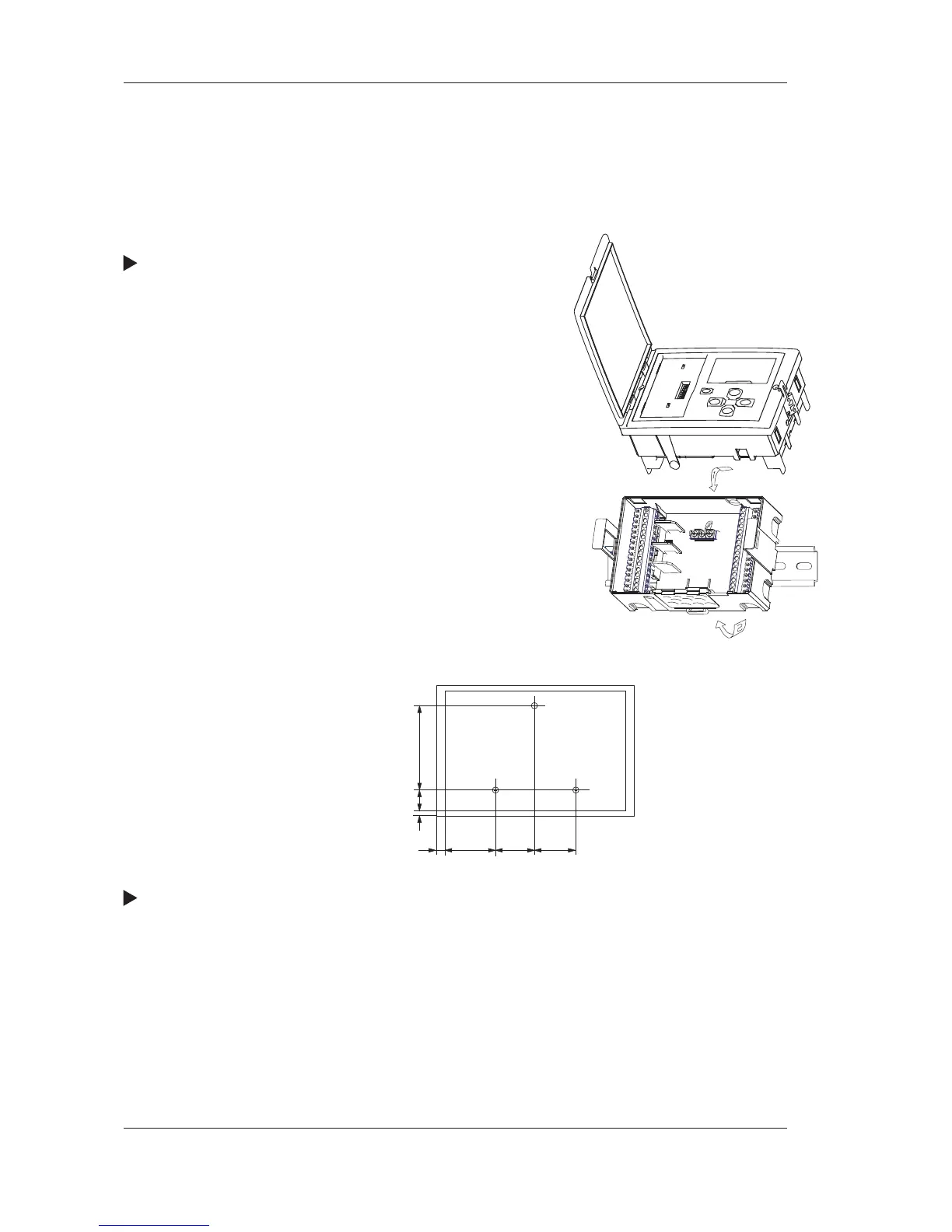

Procedure for mounting controller on a norm rail
EN 500 22:
1 Place the backplate of the
controller with the metal brace
on the upper side of the rail
(arrow 1).
2. Turn it downwards until it snaps
onto the rail (arrow 2).
3. Press on the electronic part. Secure
the controller into the metal brace
with the fastening device for panel
mounting.
4. To remove, place a screwdriver in
the lock on the bottom of the
controller and pull down. It is then
possible to lift the controller
diagonally upwards and off the
rail.
Procedure for mounting controller on a wall:
1. Drill holes for the three screws as shown in the adjacent scale
drawing.
2. Remove the backplate from the electronic part.
3. Mount the backplate and the metal brace.
4. Connect the cables.
5. Push the electronic part onto the backplate and secure the
controller into the metal brace with the fastening device for
panel mounting.
30
30
65
37
13
3
5
