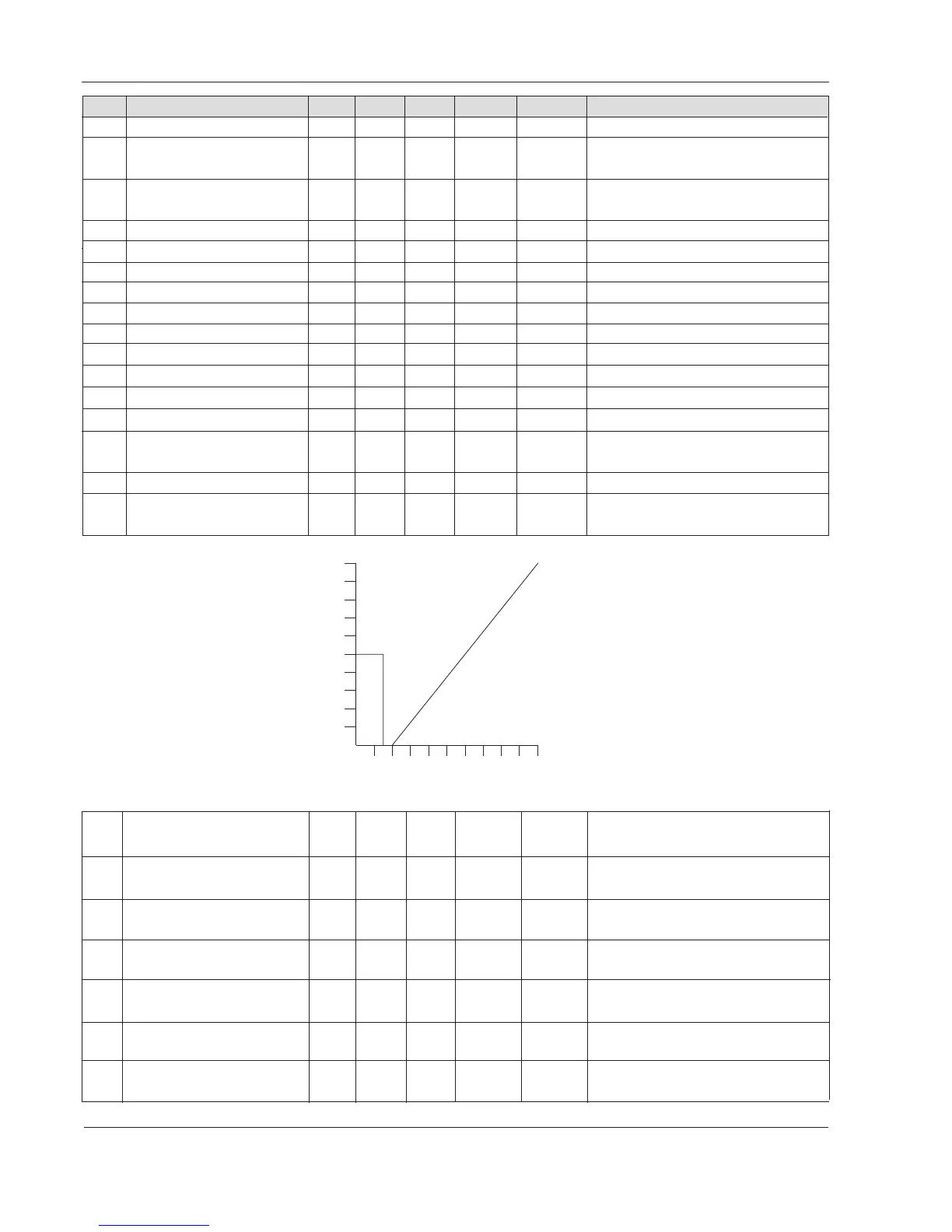

TAC 2413 Handbook Commissioning protocol/List of parameters
App:4 (6), 0-004-7614-0 (GB) TAC AB, 1998-10-23
P 59 I time supply air controller 1 min 20 min 1 min 4 min
during HEX control
P 60 P band supply air controller 1 °C 100 °C 0,1 °C 25 °C (0,5x at 1/1 speed)
during heating control
P 61 I time, supply air controller 1 min 20 min 1 min 4 min
during heating control
P 62 Return limitation controller 0 °C 50 °C 0,1 °C 12 °C
setpoint for heating coil
P 63 P band, return limitation 1 °C 100 °C 0,1 °C 25 °C
control
P 64 I time, return limitation 1 min 20 min 1 min 4 min
control
P 65 Holding controller setpoint 0 °C 50 °C 0,1 °C 25 °C
for heating coil
Setpoint adjustment effect (°C)
123
4
5678910
-4,0
-3,0
-2,0
-1,0
0,0
1,0
2,0
3,0
4,0
5,0
SPC signal (V)
P No. Parameter Min. Max. Step Default Change Comment
P 43 Min outd. temp. for night cool. 0 °C 50 °C 0,1 °C 12 °C
P 44 Max. time to next normal 0 h 20 h 1 h 10 h 0 = disabled function
operation period
P 45 Disabling of Y1, Y2 after 0 min 300 min 1 min 180 min
night cooling
P 46 Choice of summer time 1 0 = not active, 1 = March to October
P 47 Start month of summer period 1 12 1 5
P 48 Start month of winter period 1 12 1 10
P 49 Start winter compensation –20 °C 20 °C 0,1 °C 10 °C
P 50 Max. winter compensation –20 °C 20 °C 0,1 °C 0 °C
P 51 Stop winter compensation –30 °C 20 °C 0,1 °C –20 °C
P 52 Start summer compensation 0 °C 50 °C 0,1 °C 25 °C
P 53 Max. summer compensation –20 °C 20 °C 0,1 °C 0 °C
P 54 Stop summer compensation 5 °C 50 °C 0,1 °C 40 °C
P 55 SPC/CO
2, choice 0 0=no function, 1=SPC, 2=CO2
P 56 SPC effect at 0 °C 32 °C 0,1 °C 0 °C
2 and 10 V (– or +)
P 57 CO
2 setpoint 0 V 10 V 0,1 V 4 V
P 58 P band supply air controller 1 °C 100 °C 0,1 °C 25 °C
during HEX control
