Takeuchi TB215R - Removing the Track Roller; Installing the Track Roller; Removing the Idler and Track Adjuster; Installing the Idler and Track Adjuster

DISASSEMBLY AND ASSEMBLY
TRAVEL SYSTEM
2
4
TRAVEL SYSTEM 4C0AX00

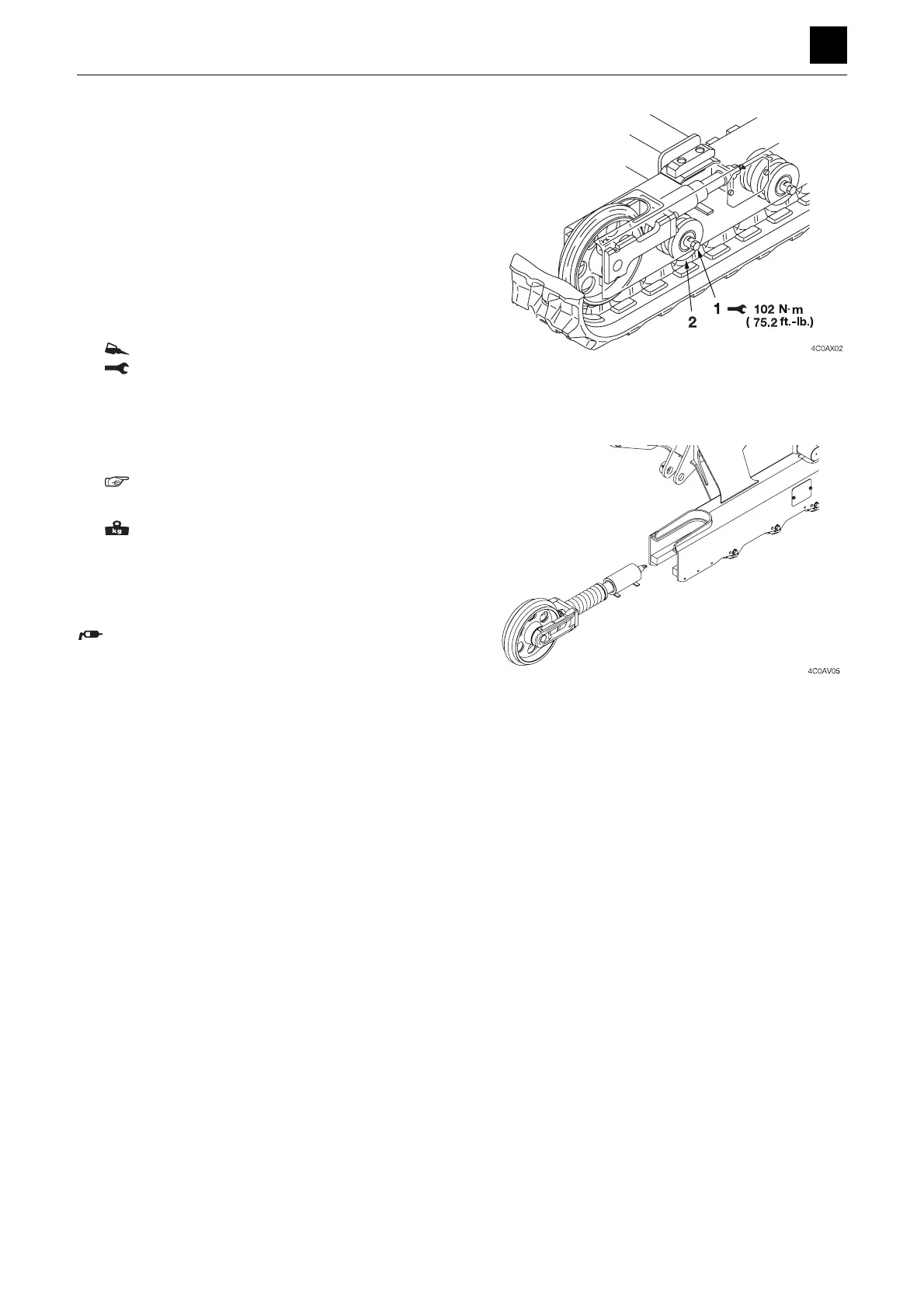

Removing the track roller
1. Loosen the crawler tension.
2. Loosen the roller bolt (1) slightly (about one turn).
3. Lift up the machine, take out the bolt (1), and remove
the roller (2).
Installing the track roller
1. Temporarily secure the roller (2) in place by tighten-
ing down the bolt (1).
2. Tighten the bolt (1) to the stipulated torque.
Bolt: ThreeBond #1324
Bolt: 102 N·m (75.2 ft.-lb)
3. Lift up the machine, and adjust the crawler tension.
Removing the idler and track adjuster
1. Remove the crawler.
“Removing the crawler"
2. Pull out the idler and the track adjuster.
Idler and track adjuster: 21 kg (46.3 lb)
Installing the idler and track adjuster
To install, follow the same procedures as for removal but
in the reverse order.
Apply on the sliding surfaces of the track adjuster
piston and cylinder.
