DISASSEMBLY AND ASSEMBLY
PILOT VALVE
1
4
PILOT VALVE
4K2AQ00
PILOT VALVE

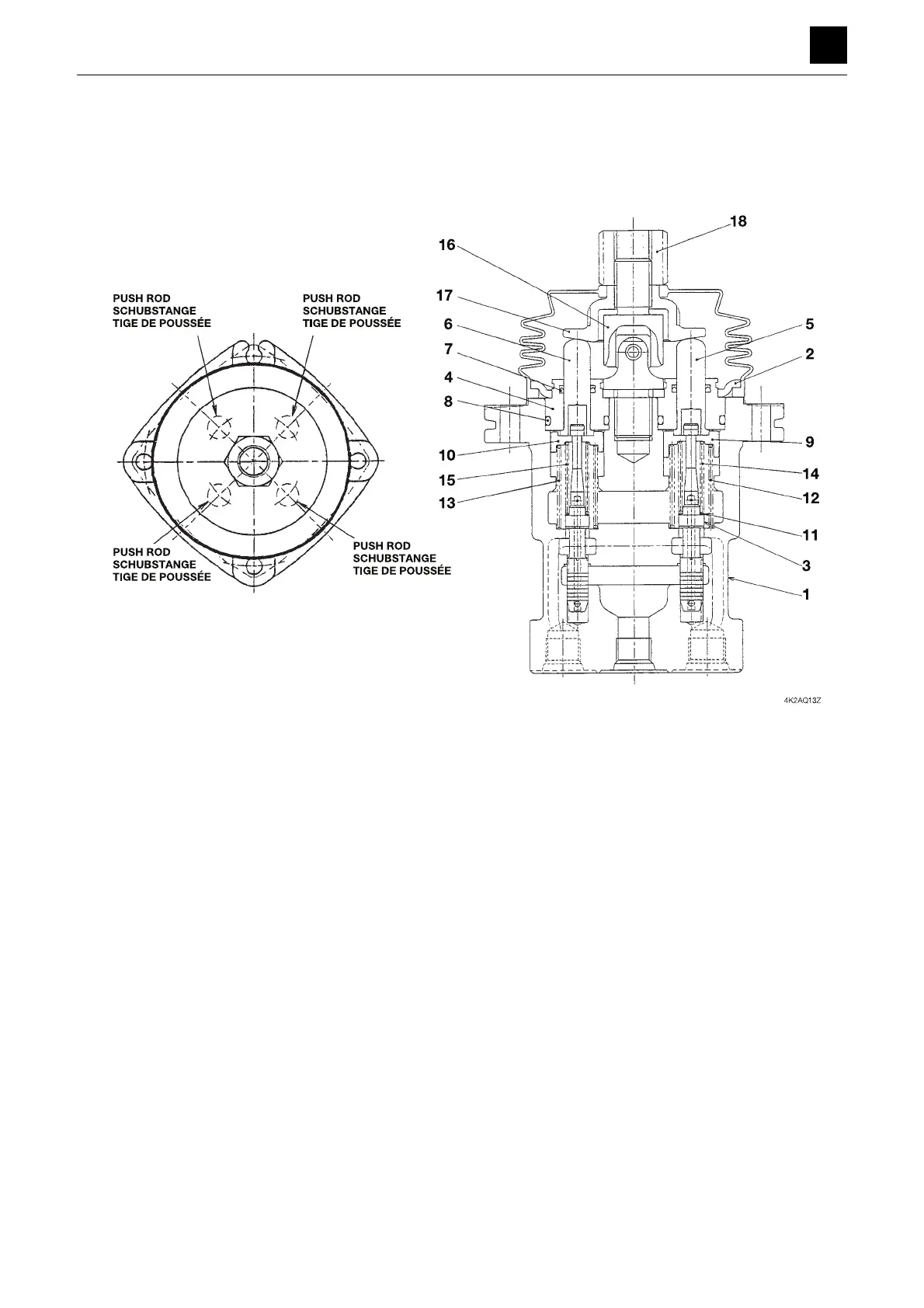

Construction
1.
Casing
7.
Seal
13.
Spring
2.
Plate
8.
O-ring
14.
Spring
3.
Spool
9.
Spring seat
15.
Spring
4.
Plug
10.
Spring seat
16.
Joint
5.
Push rod
11.
Washer 2
17.
Cam
6.
Push rod
12.
Spring
18.
Adjusting nut
159
