7
4
CONTROL V
AL
VE
DISASSEMBL
Y AND ASSEMBL
Y
4J0AX00
CONTROL V
AL
VE

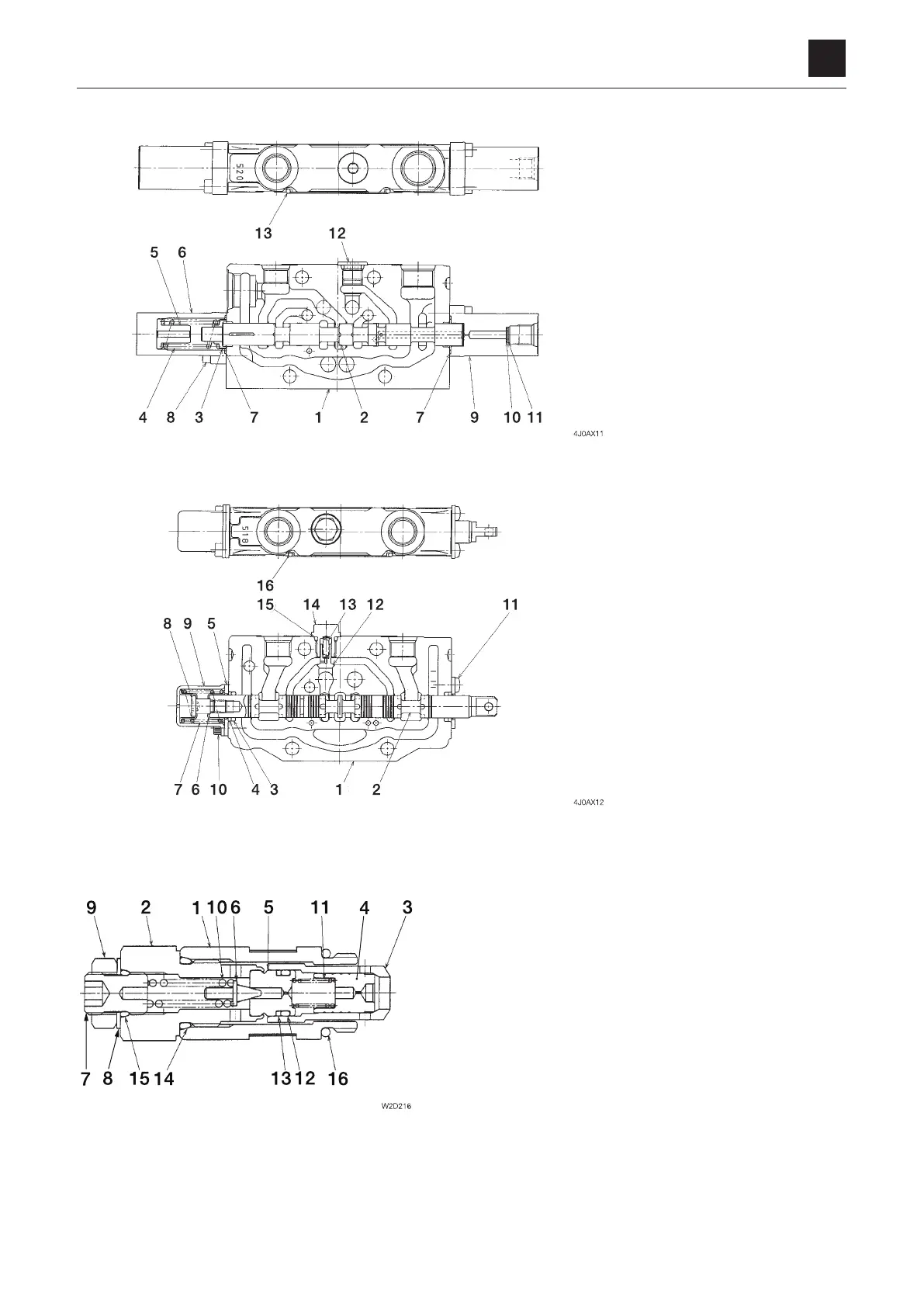

Main relief valve
1.
Housing
2.
Plug
3.
Sleeve
4.
Main poppet
5.
Piston
6.
Needle valve
7.
Setscrew
8.
Washer
9.
Lock nut
10.
Spring
11.
Spring
12.
O-ring
13.
Backup ring
14.
O-ring
15.
O-ring
16.
O-ring
Switch valve
1.
Housing
2.
Spool
3.
Spring holder
4.
Spring
5.
Spring holder
6.
Cover
7.
O-ring
8.
Cap screw
9.
Cover
10.
Filter
11.
Washer
12.
Plug
13.
O-ring
Auxiliary section
1.
Housing
2.
Spool
3.
O-ring
4.
W
iper
5.
Seal holder
6.
Spring holder
7.
Spring
8.
Screw
9.
Cover
10.
Cap screw
11.
Screw
12.
Poppet
13.
Spring
14.
Plug
15.
O-ring
16.
O-ring
152
154
