Takeuchi TB215R - Settings Selection Screen

MONOCHROME LCD CLUSTER PANEL DISPLAY AND LCD SPECIFICATIONS (WITHOUT A CAN)
SETTINGS SELECTION SCREEN
6
12
SETTINGS SELECTION SCREEN 6S3AY00
SETTINGS SELECTION SCREEN

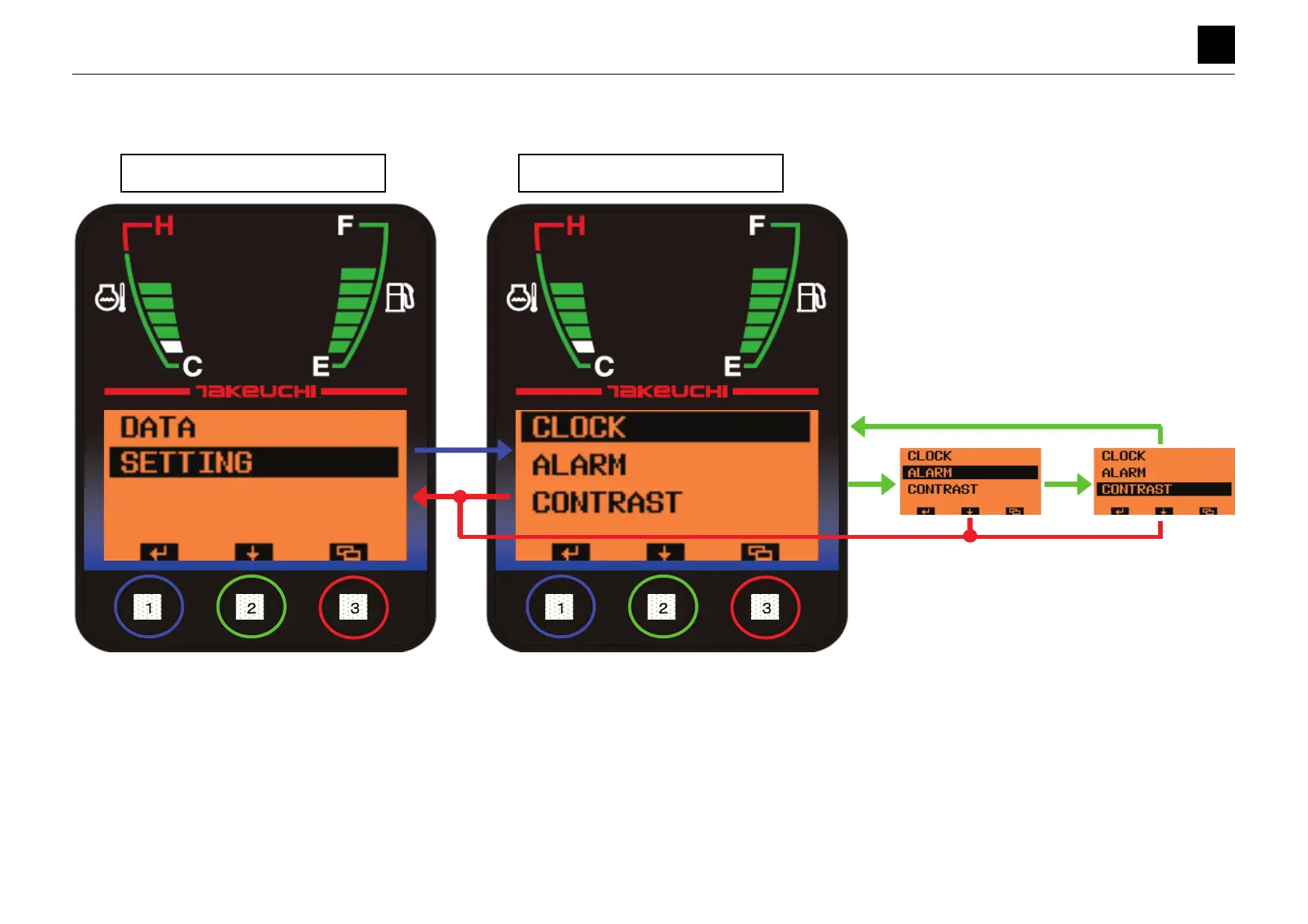

• Pressing Button [1] while [SETTING] is highlighted moves the display to the Settings Selection screen.
• Pressing Button [3] on the Settings Selection screen for a short while moves the display to the Main Menu screen.
• Pressing Button [2] on the Settings Selection screen for a short while moves the bar to the next option.
• Pressing Button [1] on the Data Selection screen for a short while moves the display to the Setting screen for the highlighted option.
Main Menu Screen
Settings Selection Screen
