MONOCHROME LCD CLUSTER PANEL DISPLAY AND LCD SPECIFICATIONS (WITHOUT A CAN)
SETTING SCREEN (CONTRAST ADJ.)
6
16
SETTING SCREEN (CONTRAST ADJ.) 6S3AY00
SETTING SCREEN (CONTRAST ADJ.)

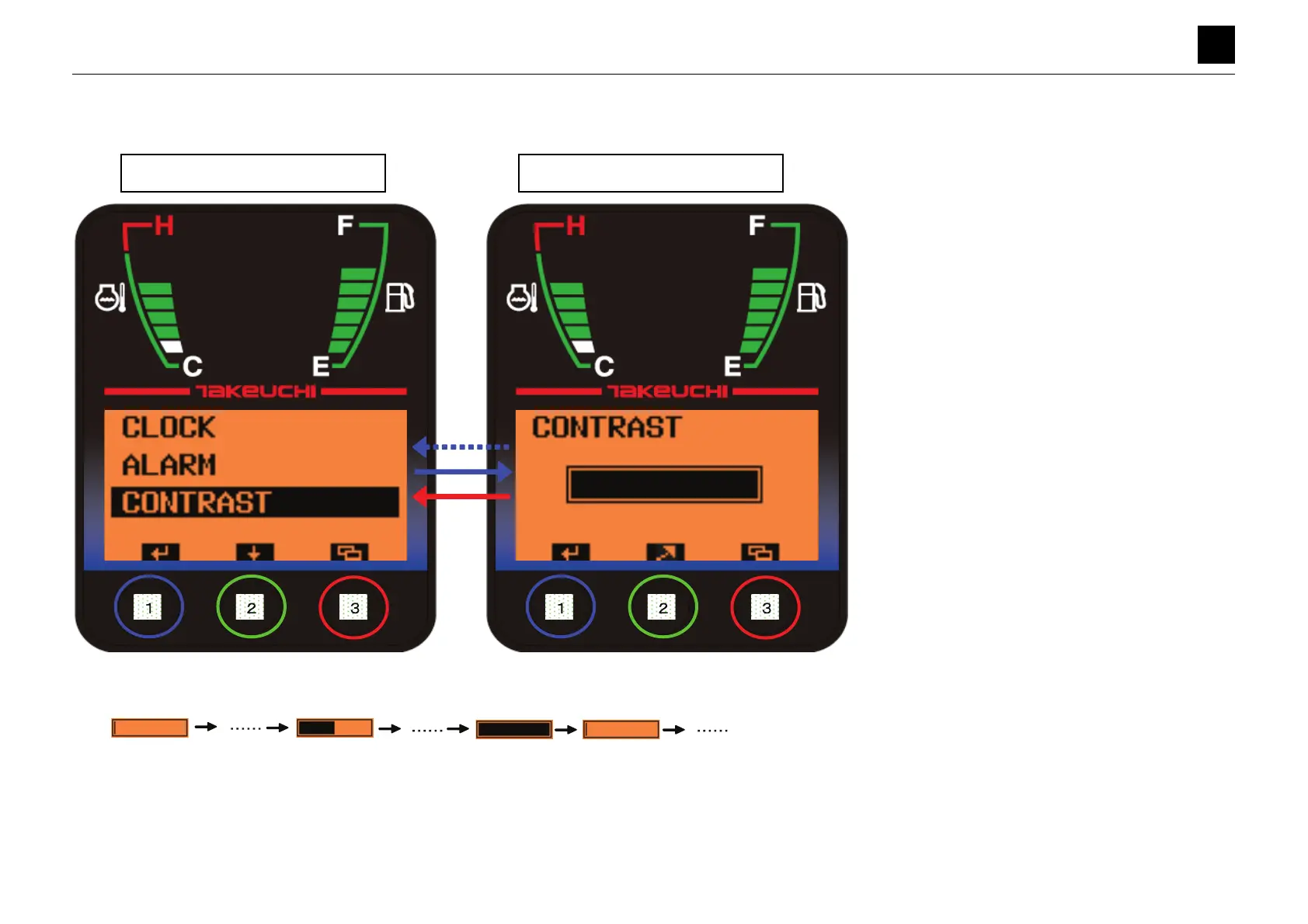

Settings Selection Screen Setting Screen (CONTRAST ADJ.)
• Pressing Button [1] for a short amount of time while [CONTRAST] is highlighted moves the display to the Setting screen (CONTRAST ADJ.).
• Pressing Button [2] on the Setting screen for a short while increases the setting value of the highlighted option. Pressing and holding down Button [2] for 1 second causes
the setting value of the highlighted option to increase at high speed.
•
• The contrast changes as the setting value of the bar increases.
• The contrast can be set to any of the 40 different setting levels available.
• Pressing Button [3] on the Setting screen for a short while moves the display to the Settings Selection screen. (Any changes made to the settings will be canceled.)
• Pressing and holding down Button [1] on the Setting screen for 3 seconds confirms the setting changes and moves the display to the Settings Selection screen.
• The confirmed setting values are saved to the EEPROM when the ACC is turned OFF and enabled until the next time the contrast is adjusted.
