Takeuchi TB215R - Removing the Travel Motor; Installing the Travel Motor

DISASSEMBLY AND ASSEMBLY
TRAVEL SYSTEM
3
4
TRAVEL SYSTEM 4C0AX00
Removing the travel motor
1. Remove the crawler.
“Removing the crawler"

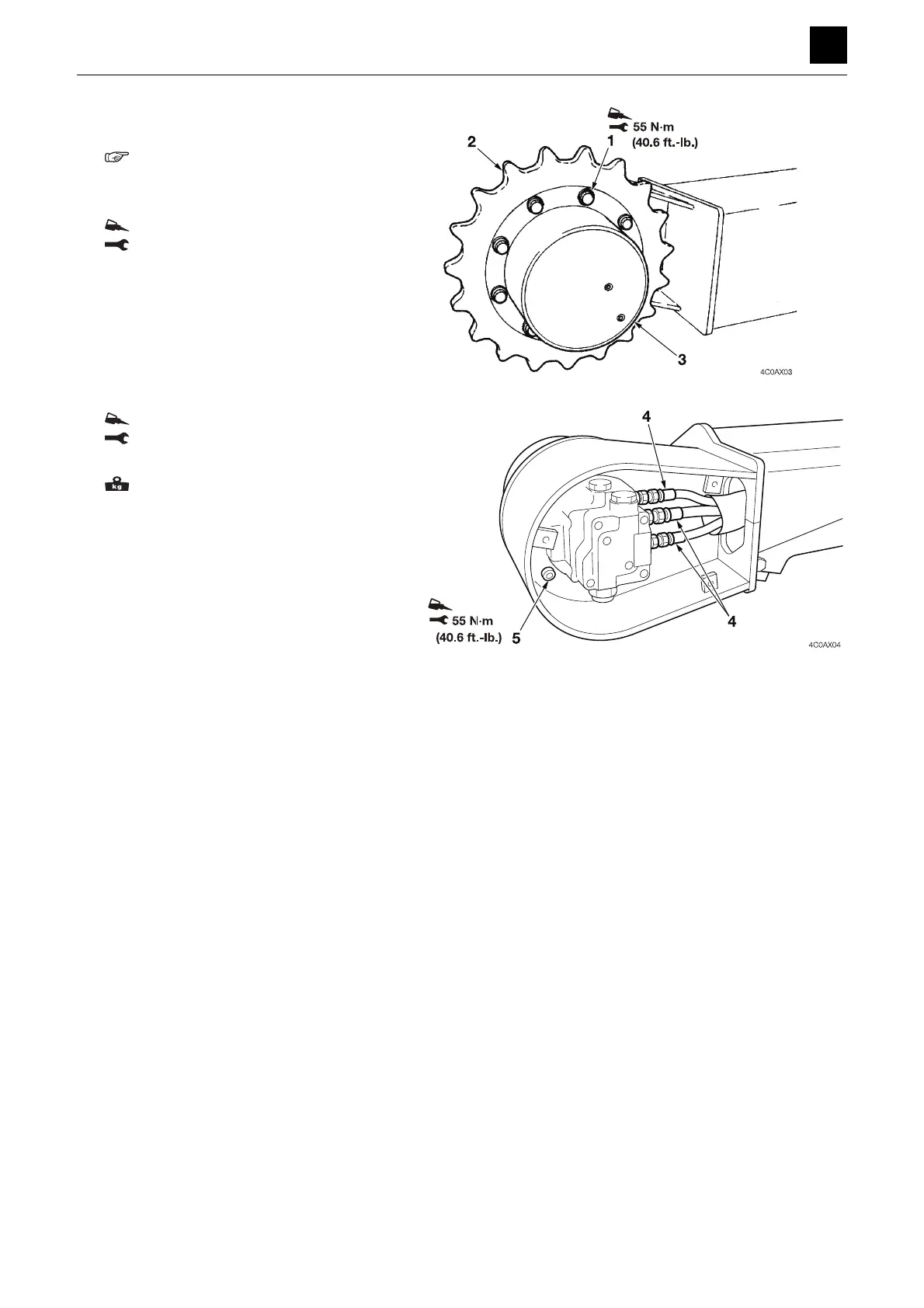

2. Take out the bolts (1), and remove the sprocket
(2).
Bolt: ThreeBond #1324
Bolt: 55 N·m (40.6 ft.-lb)
3. Remove the cover, and disconnect the hydraulic
hoses (4).
• Make sure to attach identification labels to
each of the hoses and the joints before dis-
connecting the hoses.
4. Hoist up the travel motor (3) temporarily, and re-
move the bolts (5).
Bolt: ThreeBond #1324
Bolt: 55 N·m (40.6 ft.-lb)
5. Raise the travel motor (3), and remove it.
Travel motor: 18 kg (40 lb)
Installing the travel motor
To install, follow the same procedures as for removal
but in the reverse order.
