Takeuchi TB215R Workshop Manual
4
of 1
of 1 rating
303 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
DISASSEMBLY AND ASSEMBLY
SLEW EQUI
PMENT
3
4

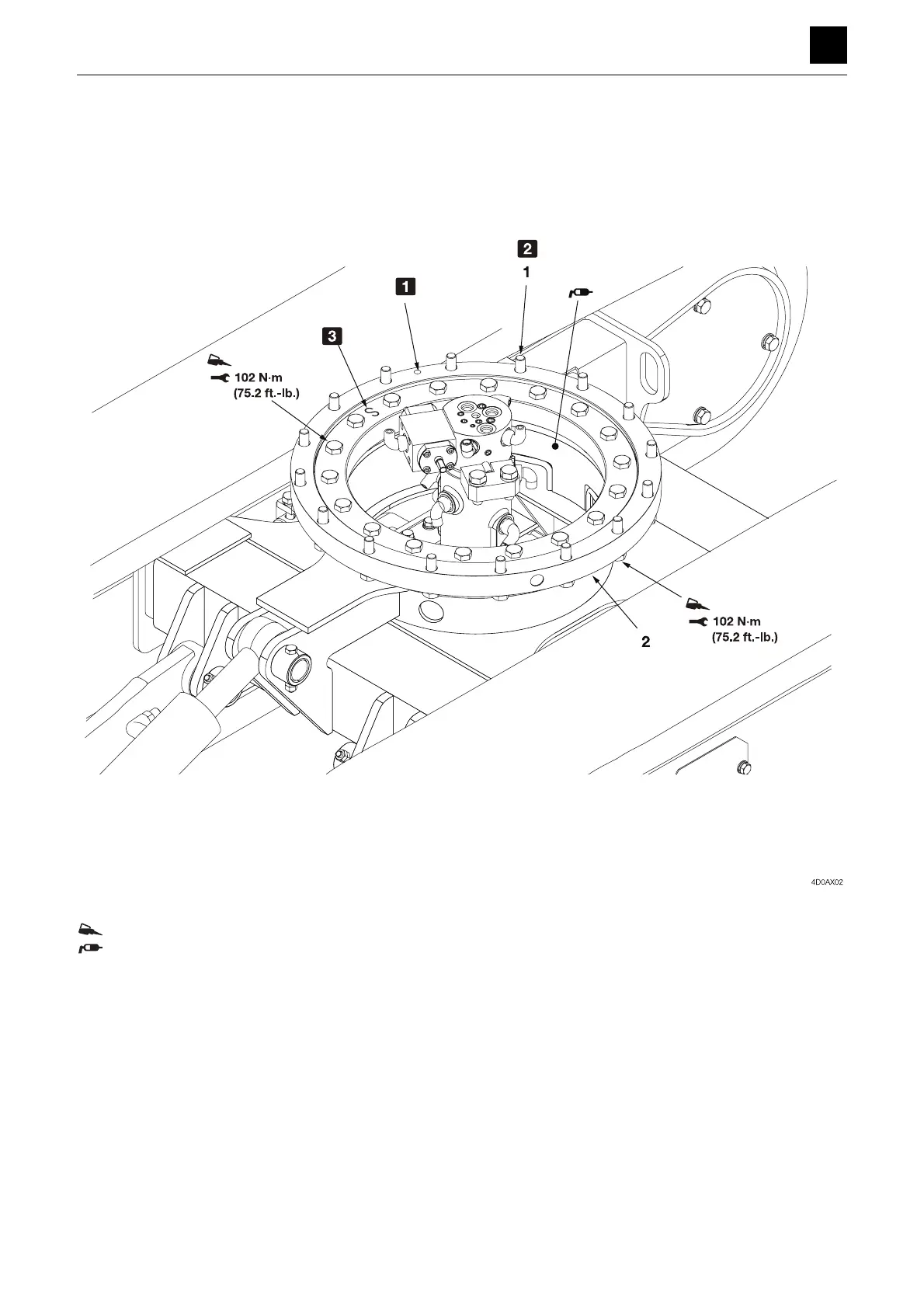

SLEW EQUIPMENT
4D0AX00
Slew bearing
Construction
ThreeBond #1324
Grease the tooth surfaces and grease bus with lithium grease EP-2.
1
Supply port hole
2
Use a reamer bolt at this position only
3
“S” die stamp
1.
Reamer bolt
2.
Slew bearing
108
110
