DISASSEMBLY AND ASSEMBLY
HYDRAULIC PUMP
4
4
HYDRAULIC PUMP
4I0AY001

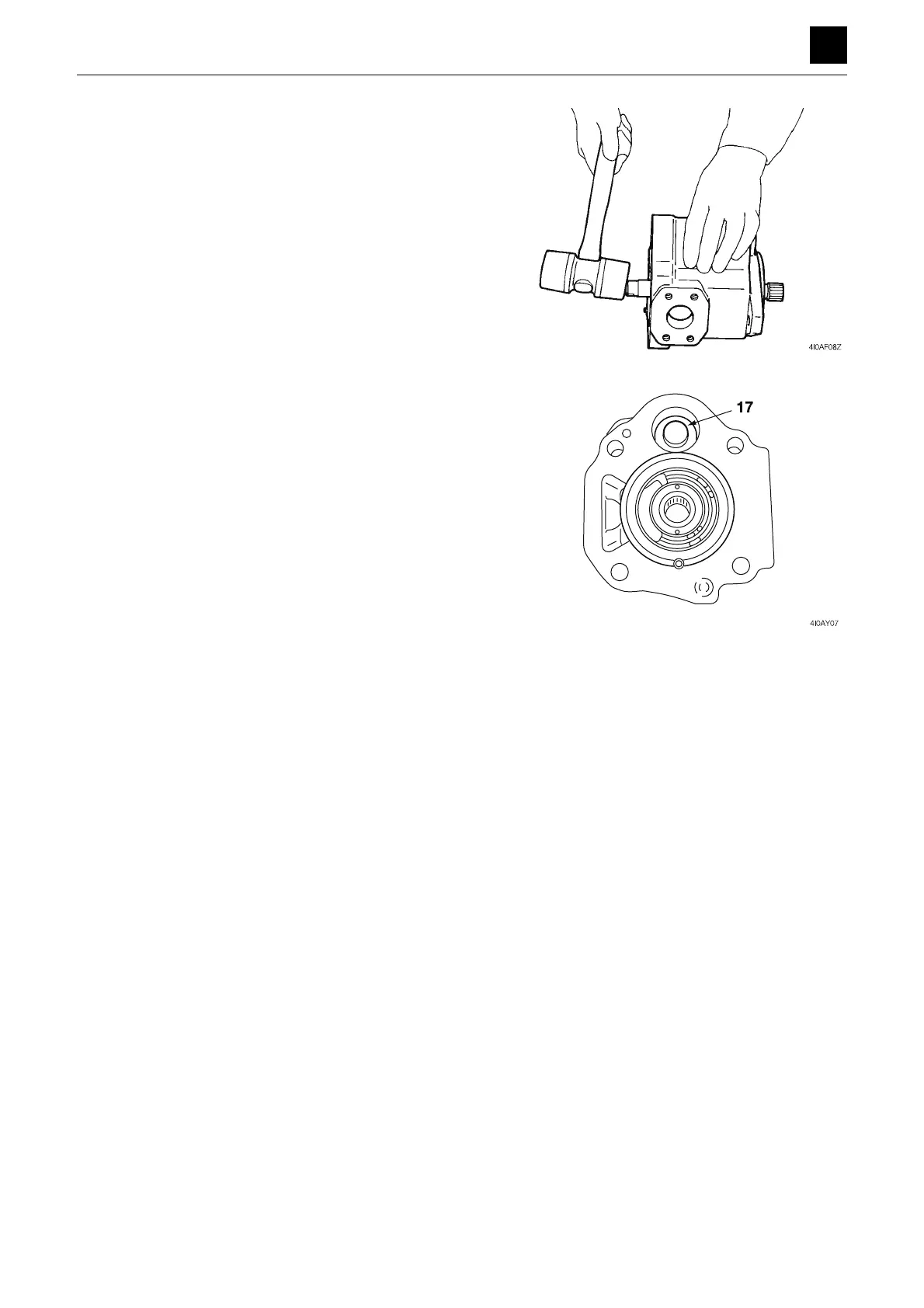

9.
Remove the shaft (3) and oil seal (25) from the body
S (1).
•
Tap the shaft (with the bearing attached) with a
plastic hammer to remove it.
10.
Remove the spring guide (17) from the body H (2).
141
143
