Assembly
Clevis

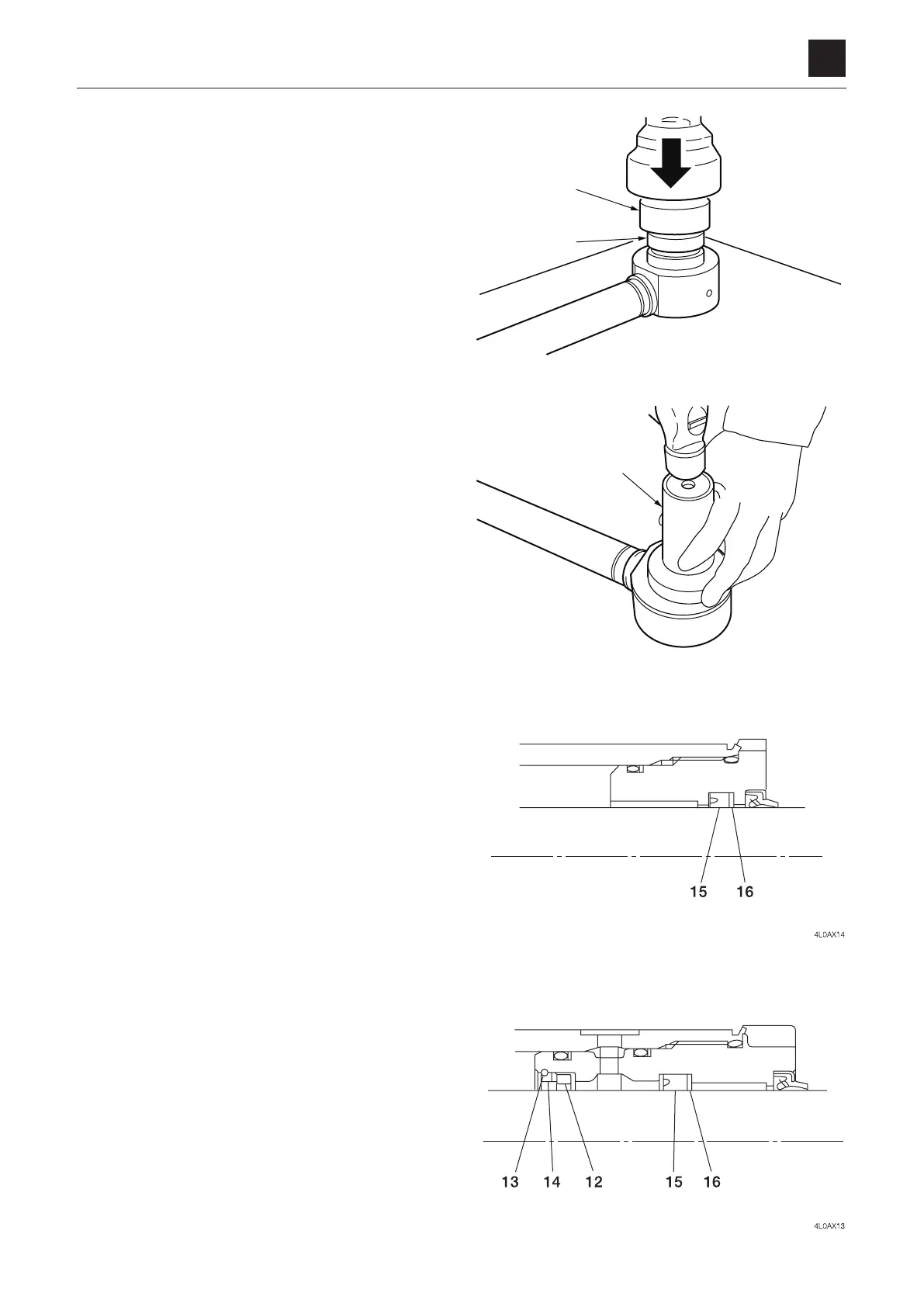

 1.UsingtheinstallationjigB,presstthebushings(28)
into the piston rod and tube.
2. Install the dust seal by using the supporting metal
(29).
Rod cover
1. Install the rod packing.
a. Installthebackupring(16).(Bucketcylinder,Swing
cylinder)
b.Installtherodpacking(15).
<Onlyforswingcylinder>
2. Install the cushion ring.
a. Installthecushionring(12).
b.Installthespacer(14).
c. Installthestopper(13).
