Takeuchi TB215R Workshop Manual

11
4
CYLINDERS
DISASSEMBLY AND ASSEMBLY
4L0AX00CYLINDERS

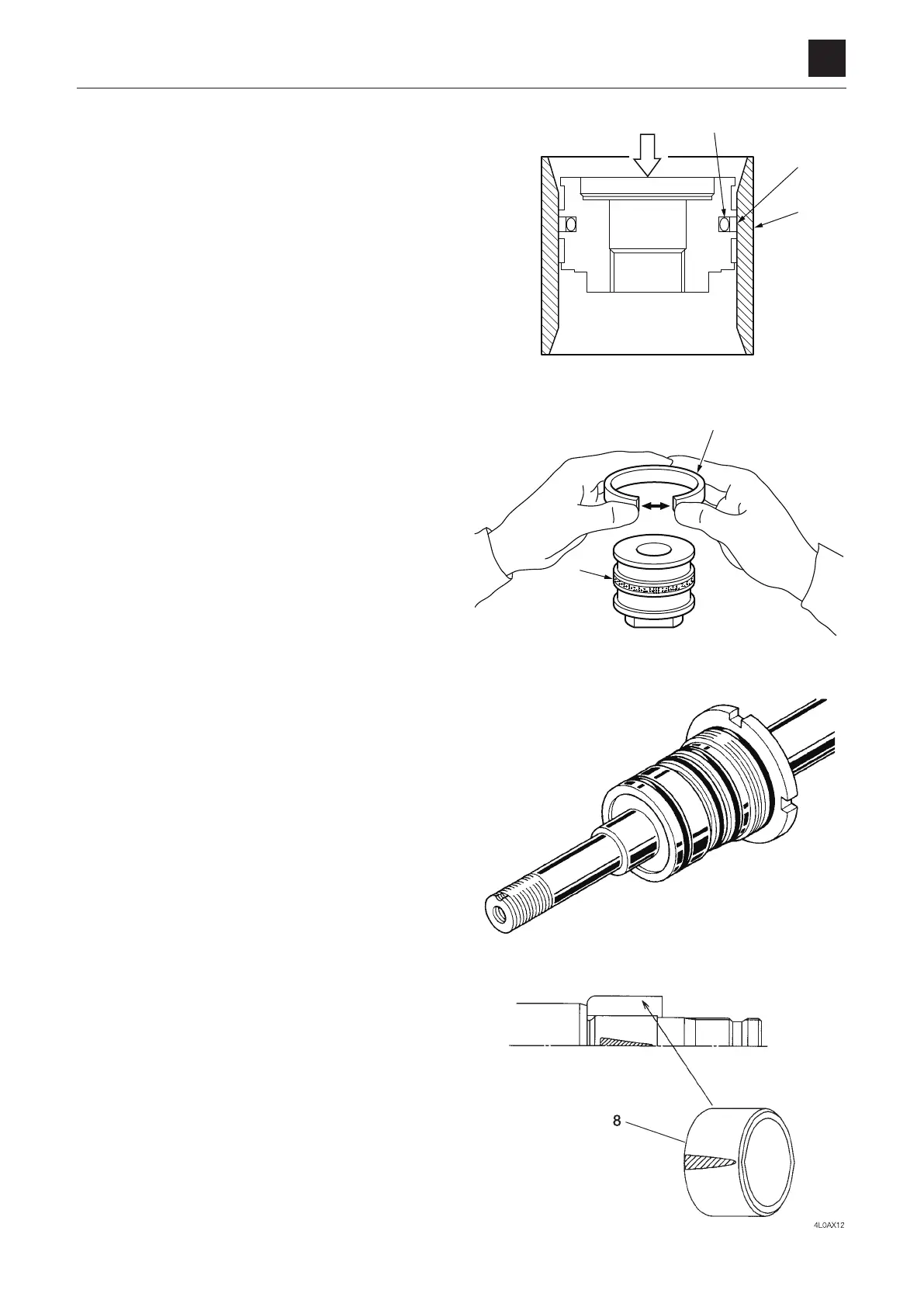

c. Sincetheslipperring(35)isextendedwhenitisin-
stalled,correctitusingthecorrectivejigE.
 2.Installthewearring(10).
• Spreadthewearring(10)justenoughsothatitcan
beinstalledonthepistoninaxialdirection.
Piston rod assembly
1. Install the rod cover assembly on the piston rod.
<Onlyforswingcylinder>
2. Install the cushion bearing on the piston rod.
• Thecushionbearingmustbeinstalledinthecorrect
direction. Place the worked surface portion facing
the correct side as shown in the figure.
E
34
35
4LAA31Z
4LAA16Z
10
11
4LAA13Z
