DISASSEMBLY AND ASSEMBLY
SLEW MOTOR
11
4
SLEW MOTOR 4N0AX00

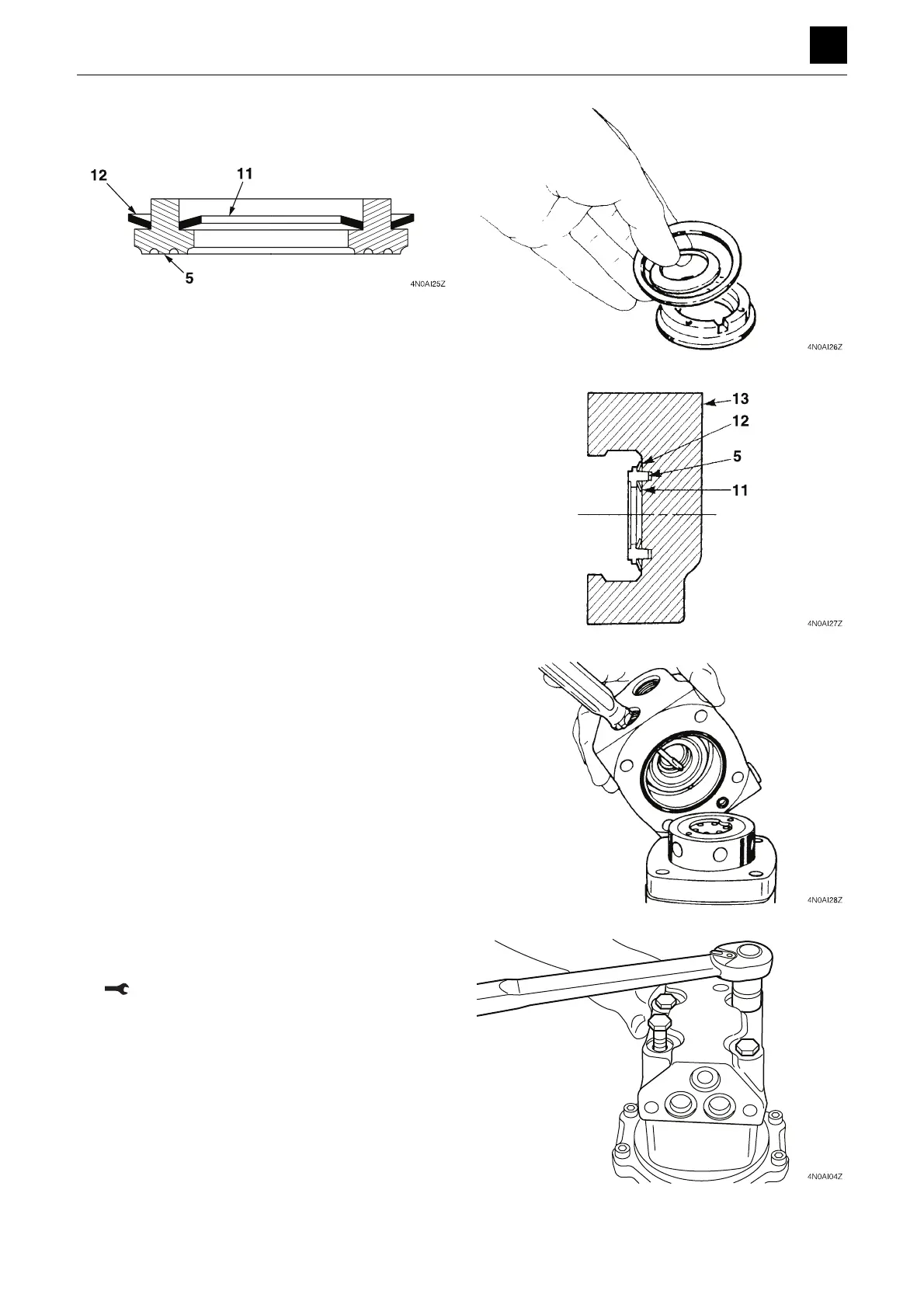

17. Fit the inner face seal (11) and the outer face seal
(12) to the balancing plate (5).
18. Align the notch on the balancing plate (5) with the
pin, and attach the plate to the valve housing (13).
19. Attach the O-rings (large and small) to the housing.
20. Attach the valve housing to the valve while prevent-
ing the balancing plate from becoming disconnect-
ed by pushing against it with a thin bar, such as a
screwdriver, inserted from the port.
• When attaching, be sure to align the drain hole on
the valve housing with the drain hole on the valve
plate.
21. Align the bolt holes, and tighten the bolts.
• Apply Loctite #242 to the bolt threads.
Bolt: 53 N·m (39.1 ft.-lb)
To Next Page
