DISASSEMBLY AND ASSEMBLY
SWIVEL JOINT
3
4
SWIVEL JOINT 4O0AX00
Swivel Joint

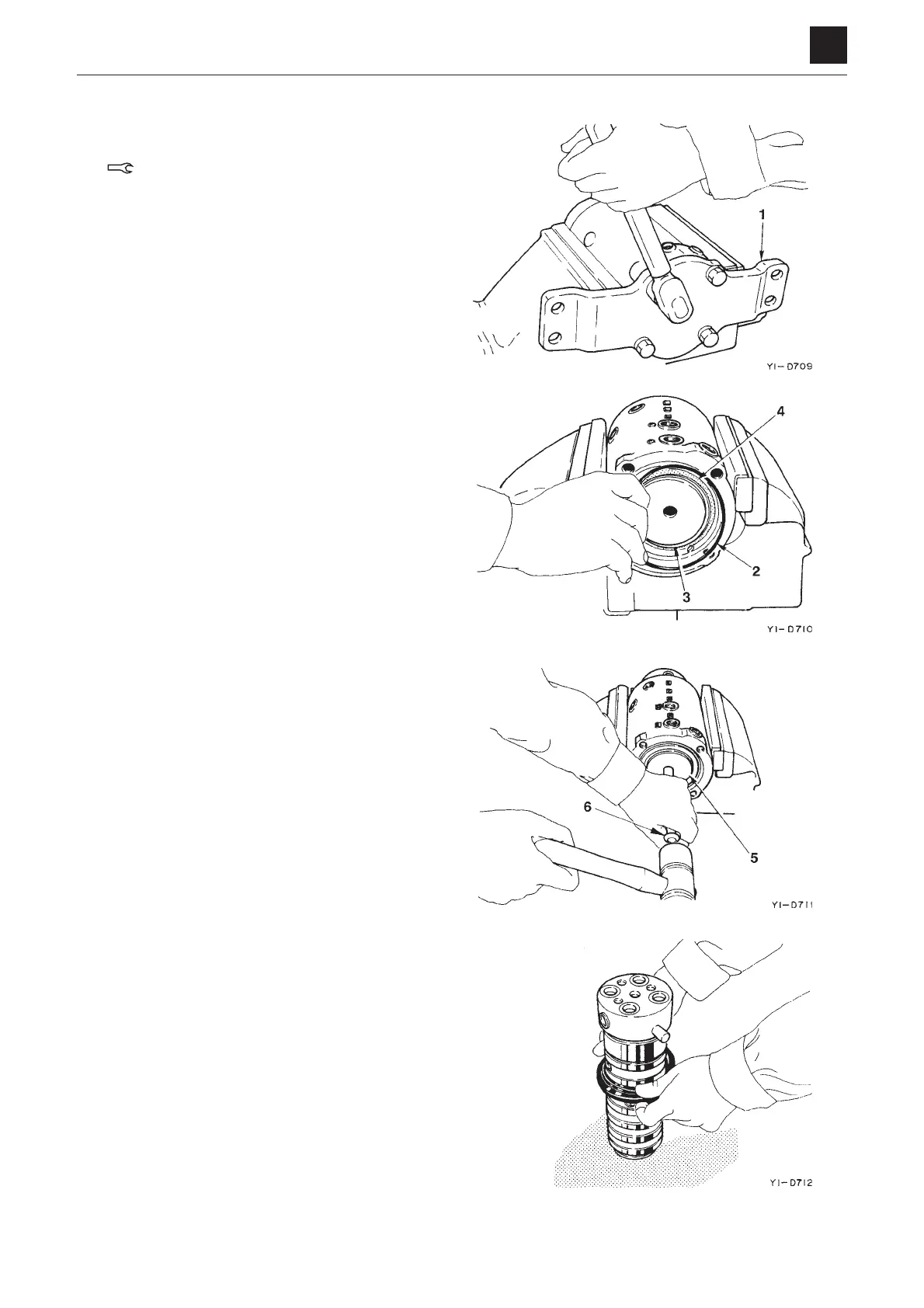

1. Take out the bolts and remove the spring washers,
then remove the flange (1) from the hub.
Bolt: 27.5 N·m
• During assembly, place a pipe on the stopper
pin of the shaft and check if the shaft rotates.
2. Remove the O-ring (2), snap ring (3) and thrust
ring (4).
• During assembly, make sure the snap ring fist
securely in the groove.
3. Remove the shaft (5) from the hub.
• Place a knock pin (6) against the shaft end and
tap with a hammer. Select a knock pin (6) made
of copper or plastic, etc..
• During assembly, apply a thin coat of hydrau-
lic oil to the outer circumference of the shaft.
4. Remove the dust seal from the shaft.
Cap Screw: 6.9 N·m(5.1 ft-lb.)
To Next Page
