DISASSEMBLY AND ASSEMBLY
DRIVE SYSTEM
5
4
DRIVE SYSTEM
4B0AX00

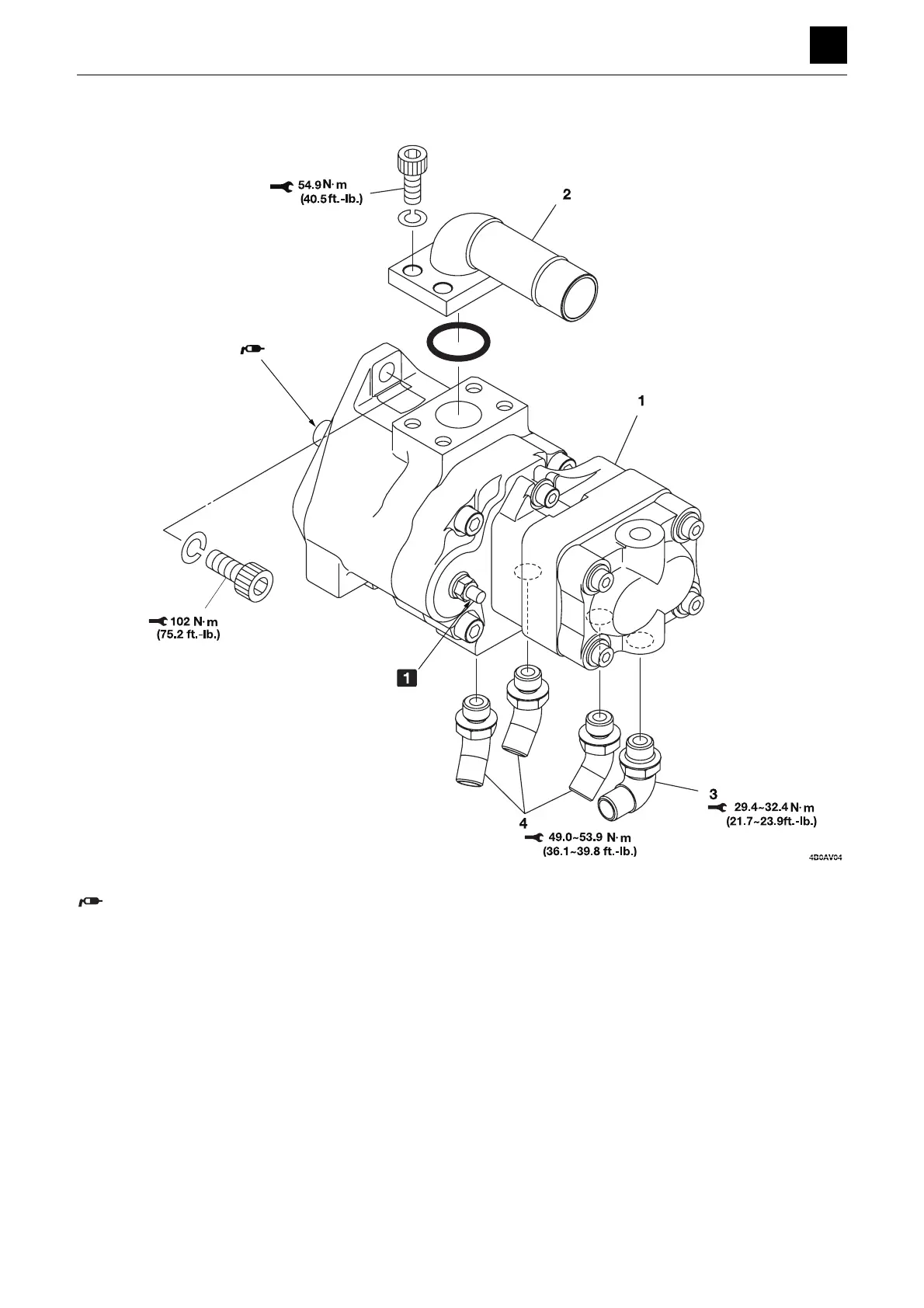

Hydraulic pump
Apply molybdenum disulfide grease on the spline.
•
Applying a large amount of grease on the spline hole
in the coupling assembly may cause the grease to drip
down onto rubber parts and cause the rubber to dete-
riorate.
1
Not adjustable. Do not loosen the lock nut.
1.
Hydraulic pump
2.
Pipe
3.
Elbow
4.
Elbow
95
97
