Opening a Saved File

To open a previously saved ﬁle, designate the ﬁle name to open it.

1. Click [Open] in the [File] Menu.

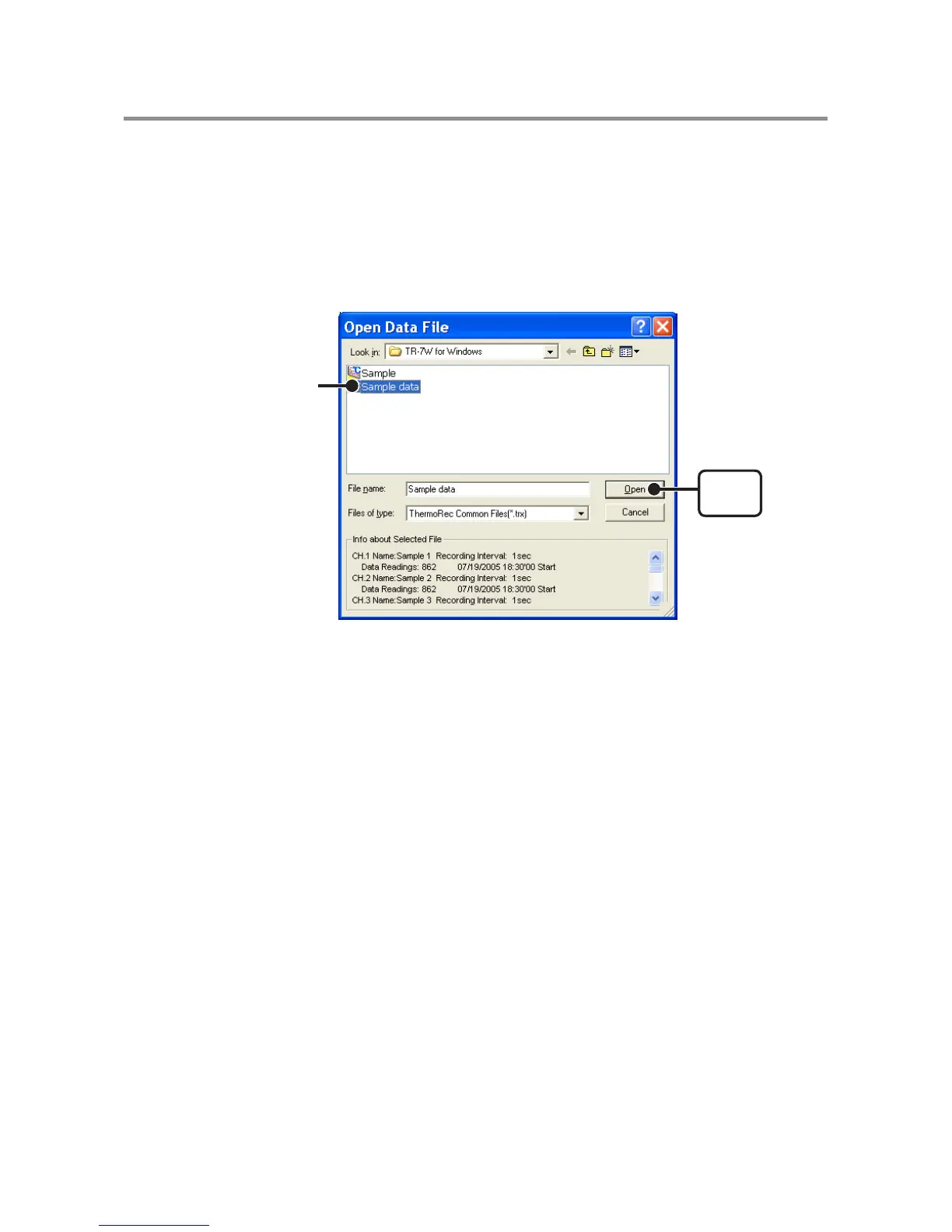

2. Select the name of the data you wish to open and click [Open] to view the data in

graph form.

[Open]

button

Select a ﬁle to open
