Taylor-Dunn MX-026-00 - Page 101

Curtis PMC Troubleshooting
Page 7

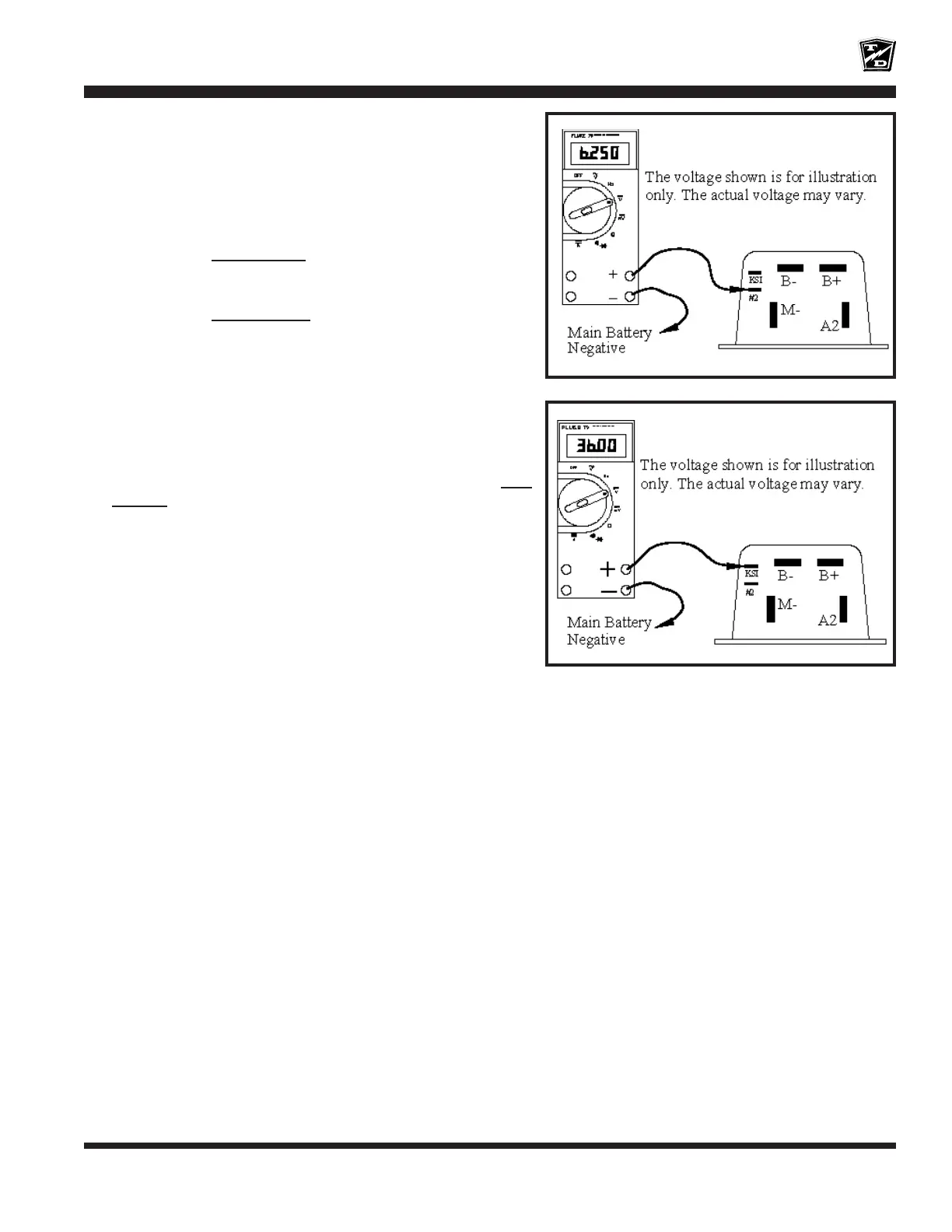

ConnectavoltmeteracrossthePMC#2terminalandbattery
negative.
Closeallinterlockswitches,turntheKeySwitchON,and
placetheF&RSwitchinForward.
Depress the accelerator pedal to engage MS-1 only.
• Ifthevoltageisnotbetween6.0and6.5voltsthen
go to the Accelerator sequence.
Depress the pedal fully.
• Ifthevoltageisnotbetween11.0and11.5voltsthen
go to the Accelerator sequence.
ConnectvoltmeteracrossthePMCKSIterminalandbattery
negative.
With the pedal still fully depressed:
• If the voltage is not at battery volts then go to the Key
Switch sequence.
• If the voltage is at battery volts then continue with the
next test.
