Taylor-Dunn MX-026-00 - Axle Assembly, Front (SS-534, SS-536, MX-600)

Illustrated parts
Parts
Page 3
* Not available at time of printing
Axle Assembly, Front
(SS-534, SS-536, MX-600)

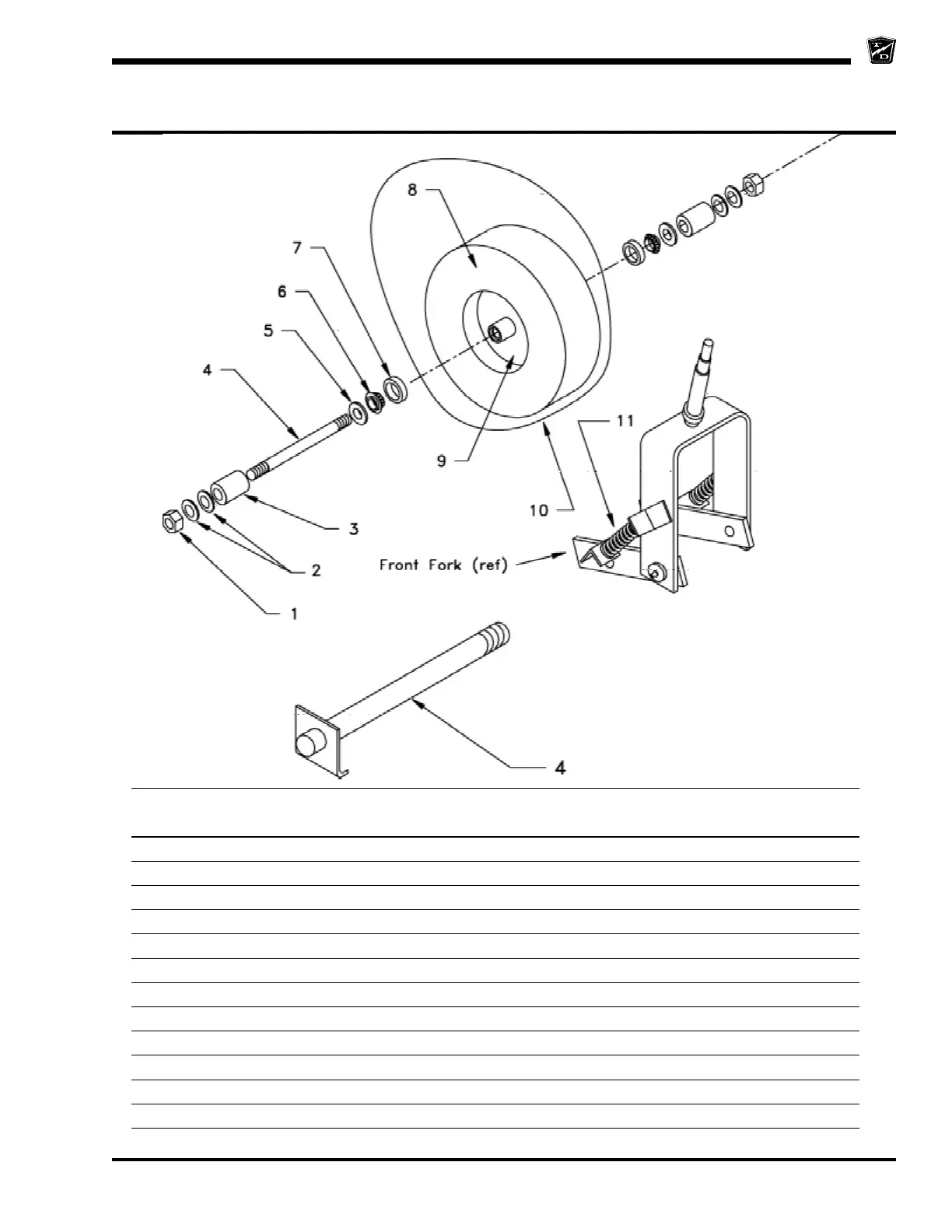

Axle Assembly, Front (SS-534, SS-536, MX-600)
Item No. Part No. Description Qty
1 88-229-81 3/4” NC Locknut 2
2 88-228-61 3/4” NC Washer 2
3 16-206-00 Spacer 2
4 15-010-00 Front Axle(Threaded each end) 1
15-010-10 Front Axle(Single Ended) 1
5 45-308-00 Oil Seal 2
6 80-015-00 Tapered Roller Bearing 2
7 80-105-00 Bearing Race 2
8 See Tire and Wheel
9 See Tire and Wheel
10 See Tire and Wheel
11 85-140-10 Spring 1
