Maintenance, Service, and Repair
Transaxle - SS-536, SS-546, MX-600
Page 6

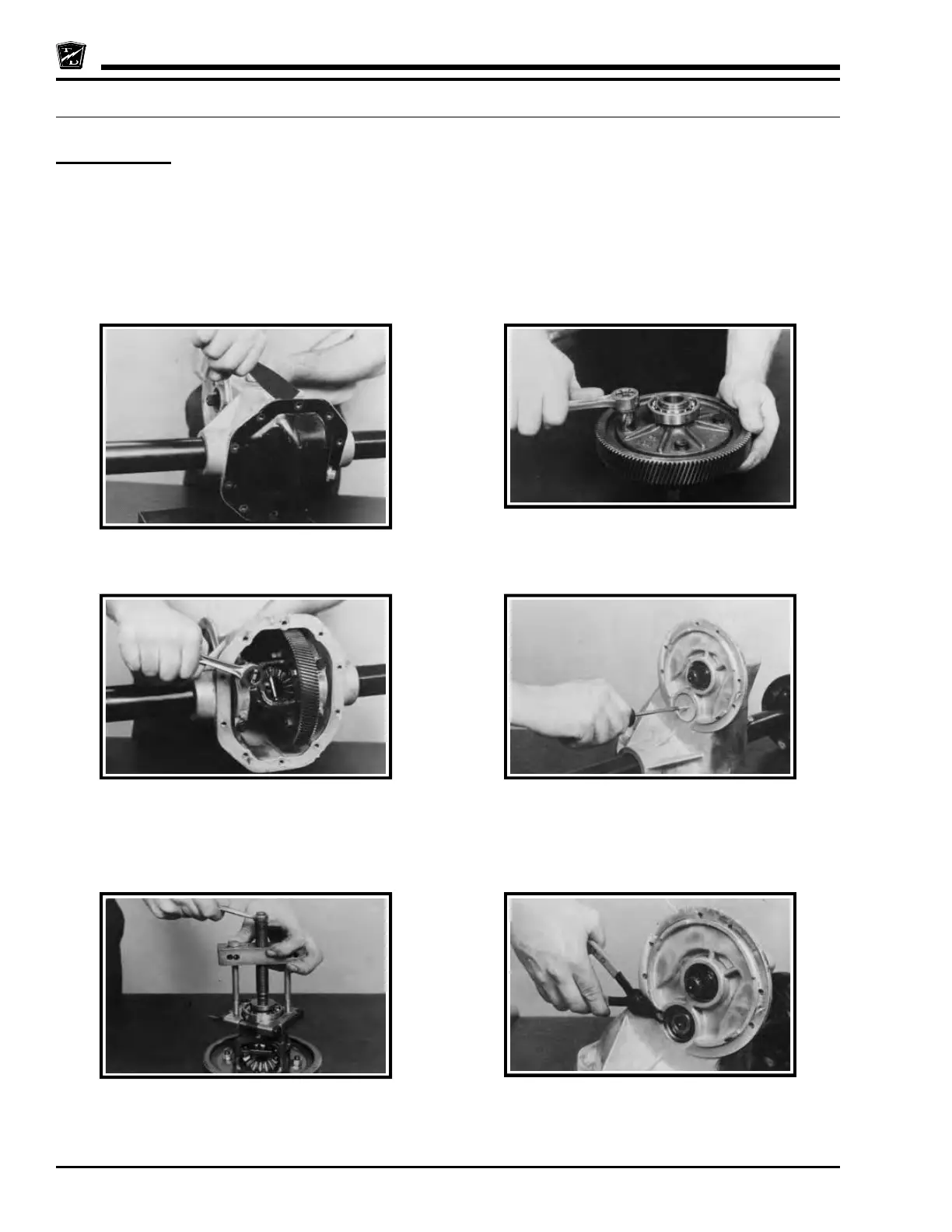

DIFFERENTIAL CASE
Disassemble
1. Remove the transmission from the vehicle. Refer to Transmission-Remove section for information on removing
the transmission.
2. Thoroughly clean the transmission assembly before disassembly.
3. Remove the left and right axles from the transmission assembly. Refer to Rear Axle section for information on
removing the axles.
4. Suspend the differential case over a drain pan that can hold a minimum of 2-quarts of oil.
5. Remove the differential case cover being careful
not to bend or damage the case cover flange or the
sealing surface of the differential case.
6. Remove the differential bearing caps and remove
the differential assembly from the housing.
NOTE: The bearing caps are marked for identification.
When the transmission is reassembled they
must be installed in their original position.
7. Remove both bearings from the differential case.
8. Remove the final drive gear from the differential
housing.
9. Punch or drill a small hole into the center of both of
the intermediate shaft bore plugs.
10. Thread a sheet metal screw into each plug until the
bore plug is forced out.
11. Remove both snap rings from the intermediate shaft
bore.
