Taylor-Dunn MX-026-00 - Control Board Assembly; Profile Setting

Battery Charger
Page 13
Prole Setting

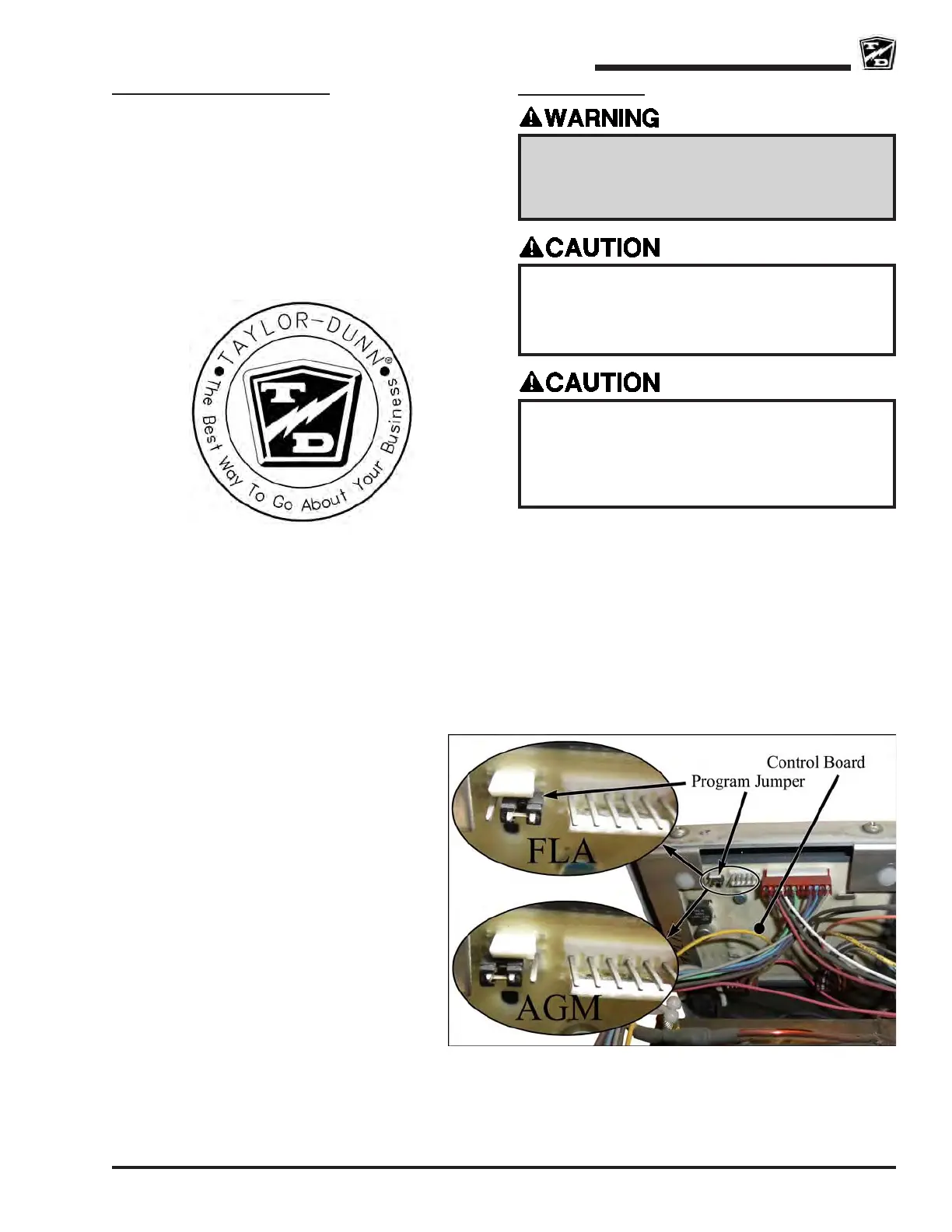

This charger can be set for WET/FLA or SLA/AGM type
batteries. The program setting is determined by the location of
the program jumper as shown in the illustration.
The type of charger is indicated on the charger specication
plate on the charger cover. If the charger type is changed, then
the charger cover should be permanently marked to indicate
the new type.
Note: The Taylor-Dunn AGM charging prole has been
optimized for Full River
®
VRLA AGM DC Series
batteries.
SLA batteries must be charged with a charger
congured for SLA batteries. Use of any other
charger will result in damage to the batteries and
premature failure of the batteries.
Disconnect the charger from the AC power source
before removing the charger cover. Failure to
disconnect the AC power source may result in electric
shock causing personal injury or death.
The type of charger is indicated on the charger
specication plate on the charger cover. If the
charger type is changed, then the charger cover
must be permanently marked to indicate the
change.
Control Board Assembly
There is no test for the control board assembly.
Test all other components and conrm all wiring is OK. If all
components test good, then it is likely that the control board
has failed.
