Taylor-Dunn MX-026-00 - Assemble

Maintenance, Service, and Repair
Transaxle - SS-534
Page 6
Assemble
NOTE: Thoroughly clean and inspect all parts before
reassembly. Apply a small amount of
differential oil to all gears and bearings before
reassembly.

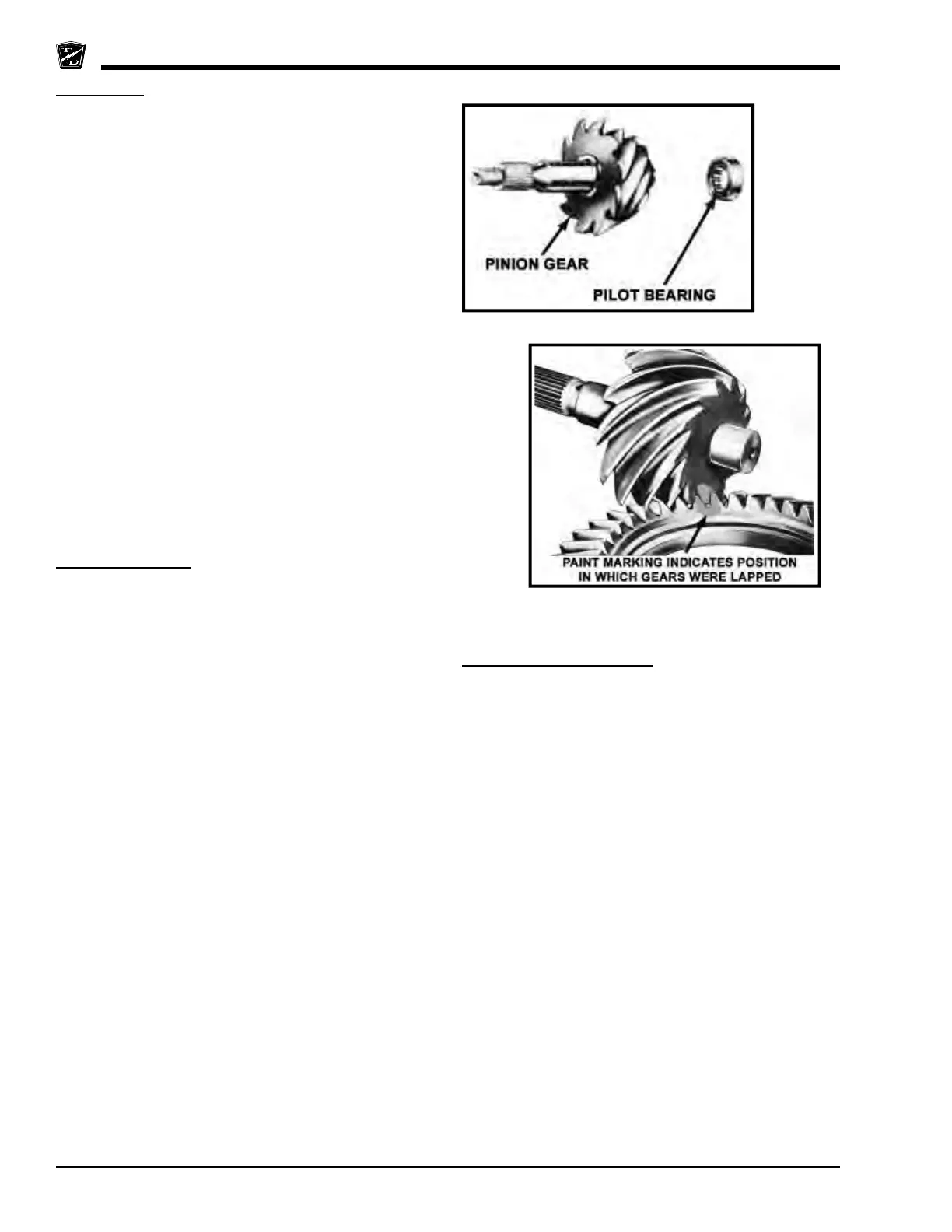

NOTE: Depending on your vehicle config-uration, the
rear pinion pilot bearing is not required and
may not be installed.
NOTE: If the ring and pinion gear set is to be replaced
then the shims for the pinion housing may
have to be adjusted. Refer to section
Selecting the Pinion Housing Shim for
information on adjusting the shim.
NOTE: Most of our gear sets are non-hunting or semi-
hunting gears. With this type of gear the
pinion and ring gears must be aligned
correctly. There will be two teeth marked on
the ring gear and one tooth marked on the
pinion gear. The one tooth on the pinion gear
must be installed so that it is between the
two teeth on the ring gear. The gear ratios
are; 2.50, 2.70, 2.75, 3.25 and 3.00.
Pinion housing
1. If the rear pinion bearing was removed, install a new
bearing.
2. Install the bearing races into the pinion housing.
3. Place the pinion gear into the 3rd member.
4. Install the pinion housing onto the 3rd member.
5. Install the pinion bearing spacers, shims and front
bearing.
6. Install a spacer on the pinion shaft so that the pinion
nut can be installed and tightened.
7. While rotating the pinion shaft, tighten the pinion
nut to 100 foot pounds (142 Nm).
8. Check the torque required to rotate the shaft. If the
torque is not between 6 -10 inch pounds (0.7 - 1.2
Nm) then the bearings must be re-shimmed. Add or
subtract shims as required until the torque is within
specifications.
Differential Assembly
9. Reassemble the differential housing in reverse order.
10. Place the ring gear onto the differential housing
matching the mark made during disassembly.
11. Install two of the ring gear bolts finger tight to align
the gear.
12. Press the ring gear onto the differential housing.
13. Install the ring gear bolts and cross tighten to per
torque listed in the Hardware Torque table at the
end of this section.
14. If the differential bearings were removed, install new
bearings.
15. Place races onto the differential bearings and place
the differential assembly onto the 3rd member.
Position the assembly so that it is just touching the
pinion gear.
16. Install the bearing adjusting nuts making sure that
the nuts are not cross threaded. Position the nuts
so they are in contact with the bearing races.
