Taylor-Dunn MX-026-00 - Motor

Illustrated Parts
Parts
Page 28
Motor
Motor

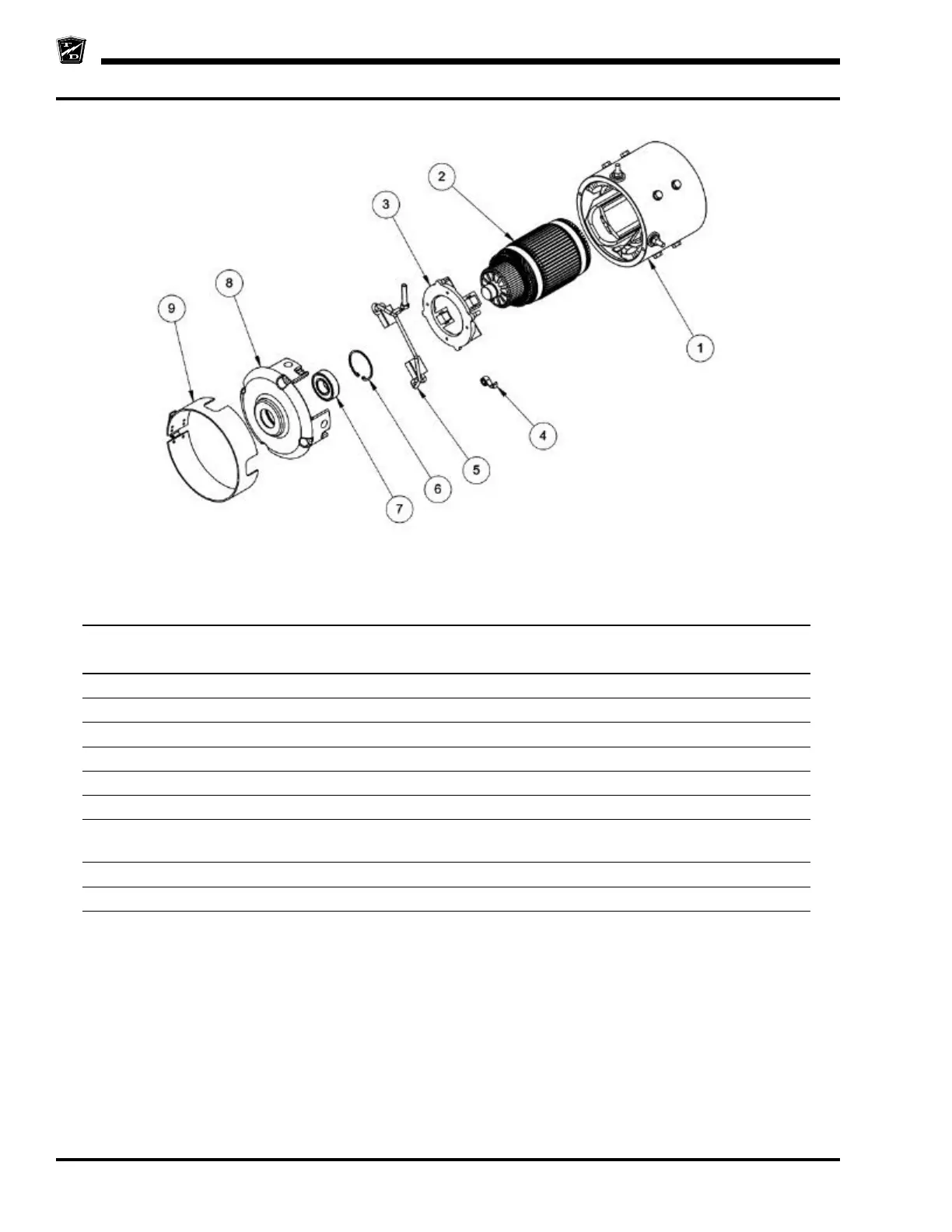

Item No. Part No. Description Qty
1 * Field assembly 1
2 * Armature 1
3 70-180-00 Brush holder 1
4 80-412-20 Brush spring 4
5 70-109-00 Brush pair 2
6 70-417-00 Bearing retainer 1
7 80-212-00 Bearing, rear 1
80-212-00 Bearing, front (SS-534) 1
8 * End cap 1
9 * Brush cover 1
Motor Assemblies:
70-049-05 SS-536, SS-546, MX-600
70-049-00 SS-534
