Taylor-Dunn MX-026-00 - Steering Linkage, Tiller

Illustrated Parts
Parts
Page 30

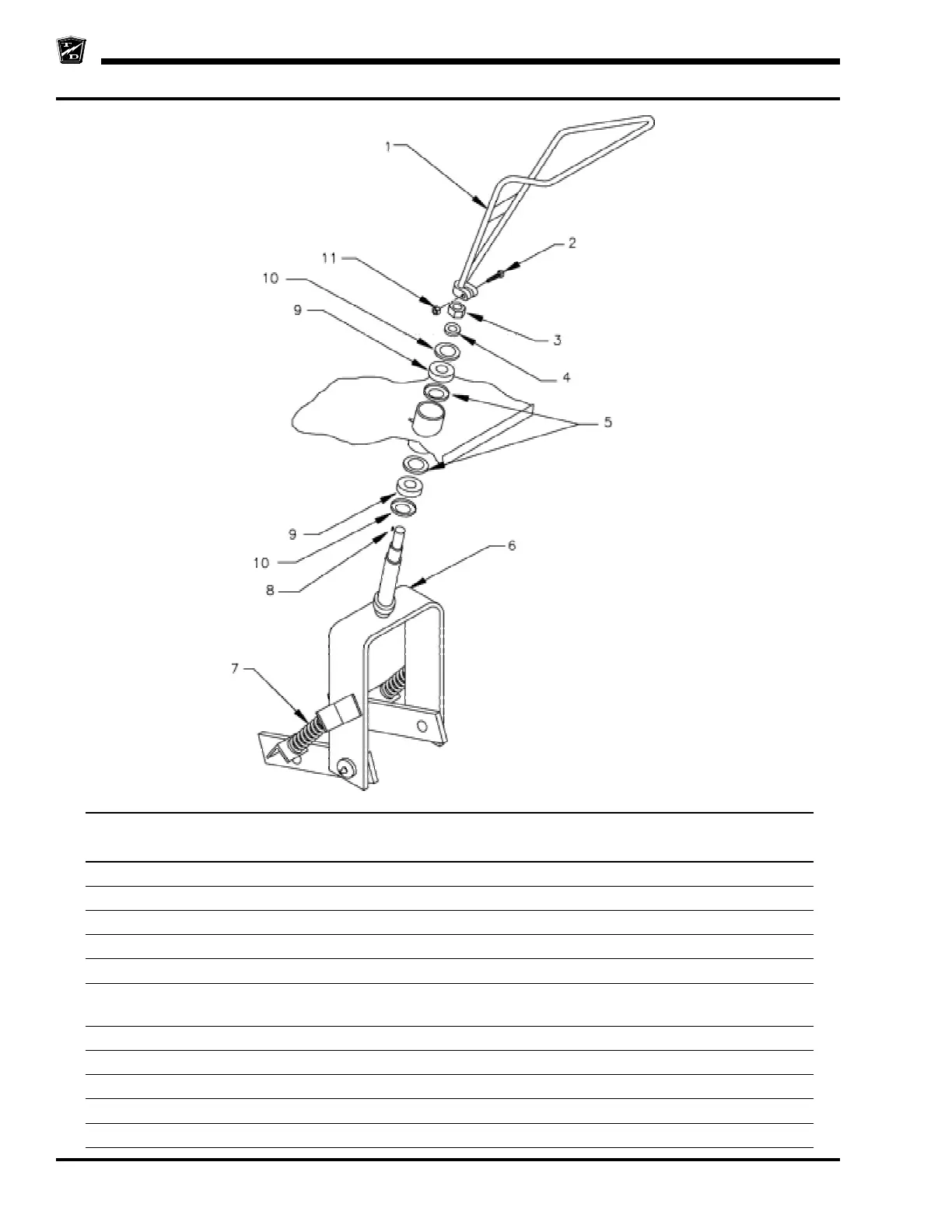

Steering Linkage, Tiller
Steering Linkage, Tiller
Item No. Part No. Description Qty
1 19-101-20 Steering Tiller 1
2 88-140-14 1/2” X 1-1/2” NC Bolt 1
3 97-230-00 1-1/4” NF X 9/16” Locknut 1
4 16-409-00 Spacer 1
5 80-102-00 Bearing Race 2
6 14-079-20 Front Fork with Springs, Model SS 1
14-079-45 Front Fork with Springs, Model MX 1
7 85-140-10 Spring 2
8 97-100-00 Woodruff Key 1
9 80-011-10 1-1/4” Tapered Roller Bearing 2
10 45-307-00 Oil Seal, 1-1/2”ID 2
11 88-149-81 1/2” Locknut 1
