Taylor-Dunn MX-026-00 - Suspension, Rear, SS-534

Illustrated parts
Parts
Page 35
* Not available at time of printing

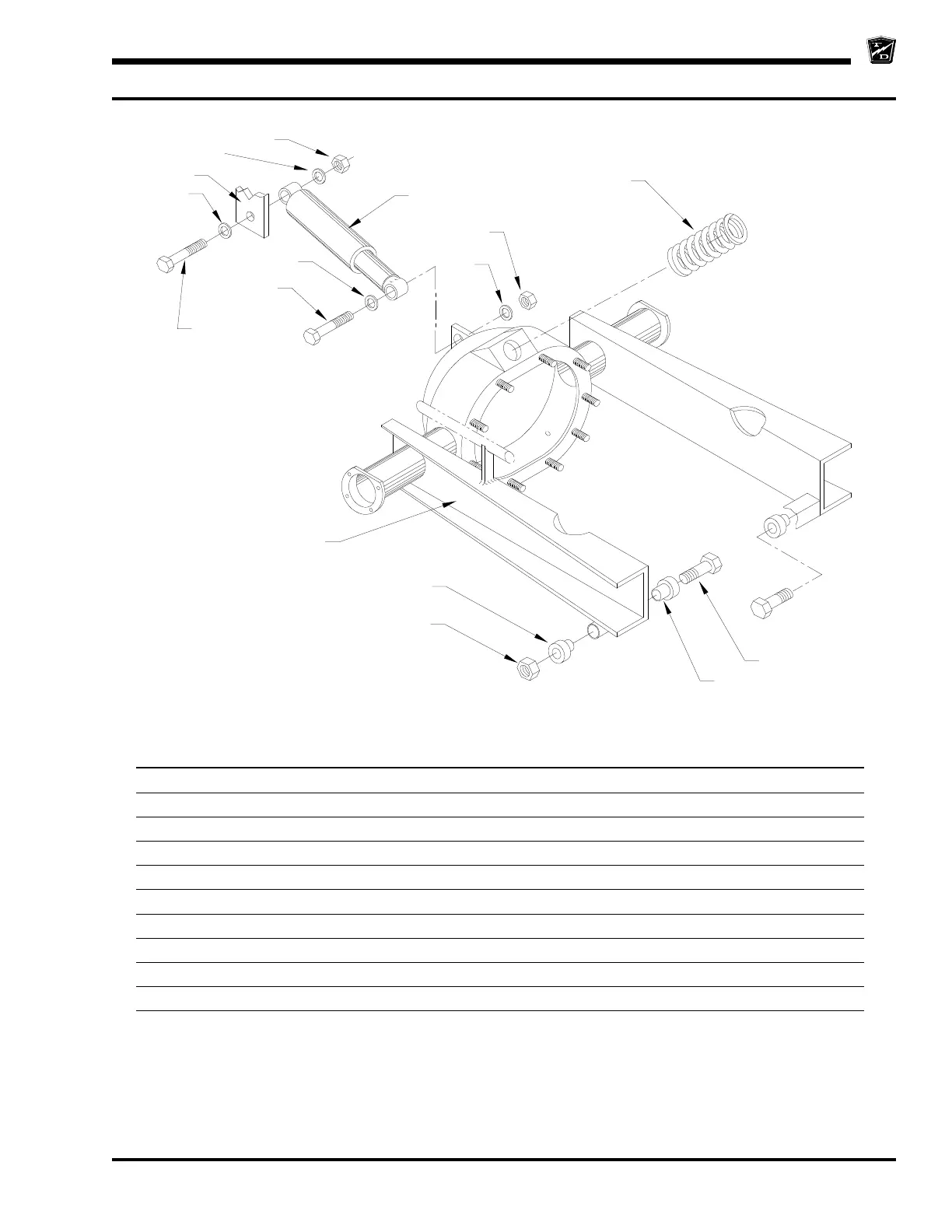

Suspension, Rear, SS-534
1
2
1
2
3
4
5
6
6
7
8
9
9
10
See Differential Case
Frame
Item No. Part No. Description Qty
1 88-189-81 Nut 2
2 88-188-61 Washer 1
3 86-602-00 Shock 1
4 88-180-18 Bolt, 5/8 1
5 88-180-18 Bolt, 5/8 1
6 88-188-61 Washer 1
7 85-140-00 Spring 1
8 88-149-81 Nut 2
9 98-601-00 Bushing 4
10 96-240-00 Bolt 2
