Taylor-Dunn MX 1600 - Replace the Rear Springs

Maintenance, Service, and Repair
Suspension Page 2
REPLACE THE REAR SPRINGS
Leaf
If a spring has failed or is fatigued, then it is recommended that both rear springs are replaced as a set.
HINT : In most vehicles it will be easier if the springs are replaced one at
a time.
6. Raise the rear of the vehicle and support with jack stands.
1. Make sure the key-switch is in the “OFF” position, then remove
the key.
2. Place the forward-reverse switch in the center “OFF” position.
3. Set the park brake.
4. Place blocks under the front wheels to prevent vehicle movement.
5. Disconnect the main positive and negative cables at the batteries.
Always use a lifting strap, hoist, and jack stands, of adequate capacity
to lift and support the vehicle. Failure to use lifting and support devices
of rated load capacity may result in severe bodily injury.
7. Tie up or support the rear axle so it cannot fall out of the vehicle.

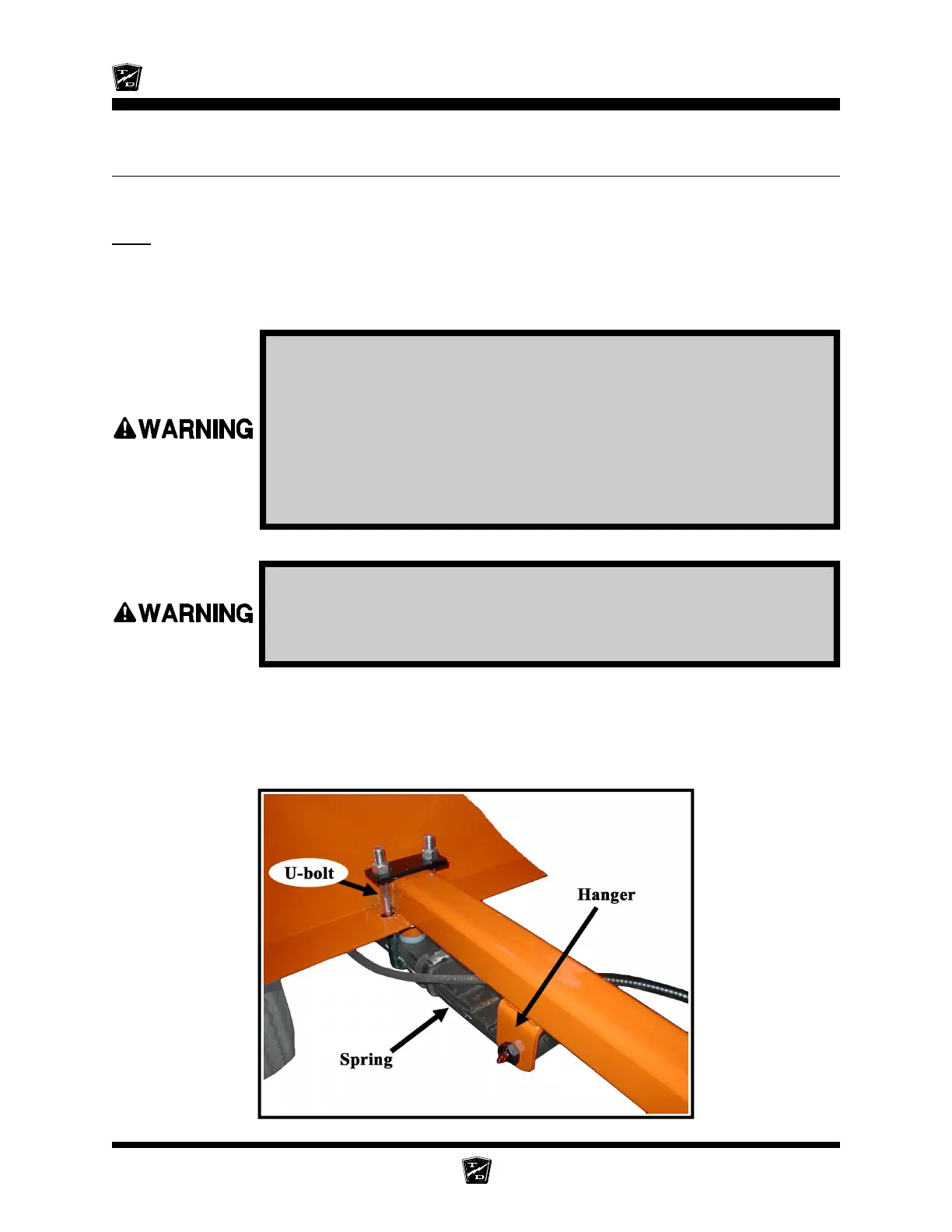

8. Unbolt the spring from the axle housing.
9. Support the spring so that it cannot fall out of the vehicle.
10. Remove the remaining hardware retaining the spring to the frame.
11. Remove the spring from the vehicle.
