Maintenance, Service, and Repair
Transmission Page 5

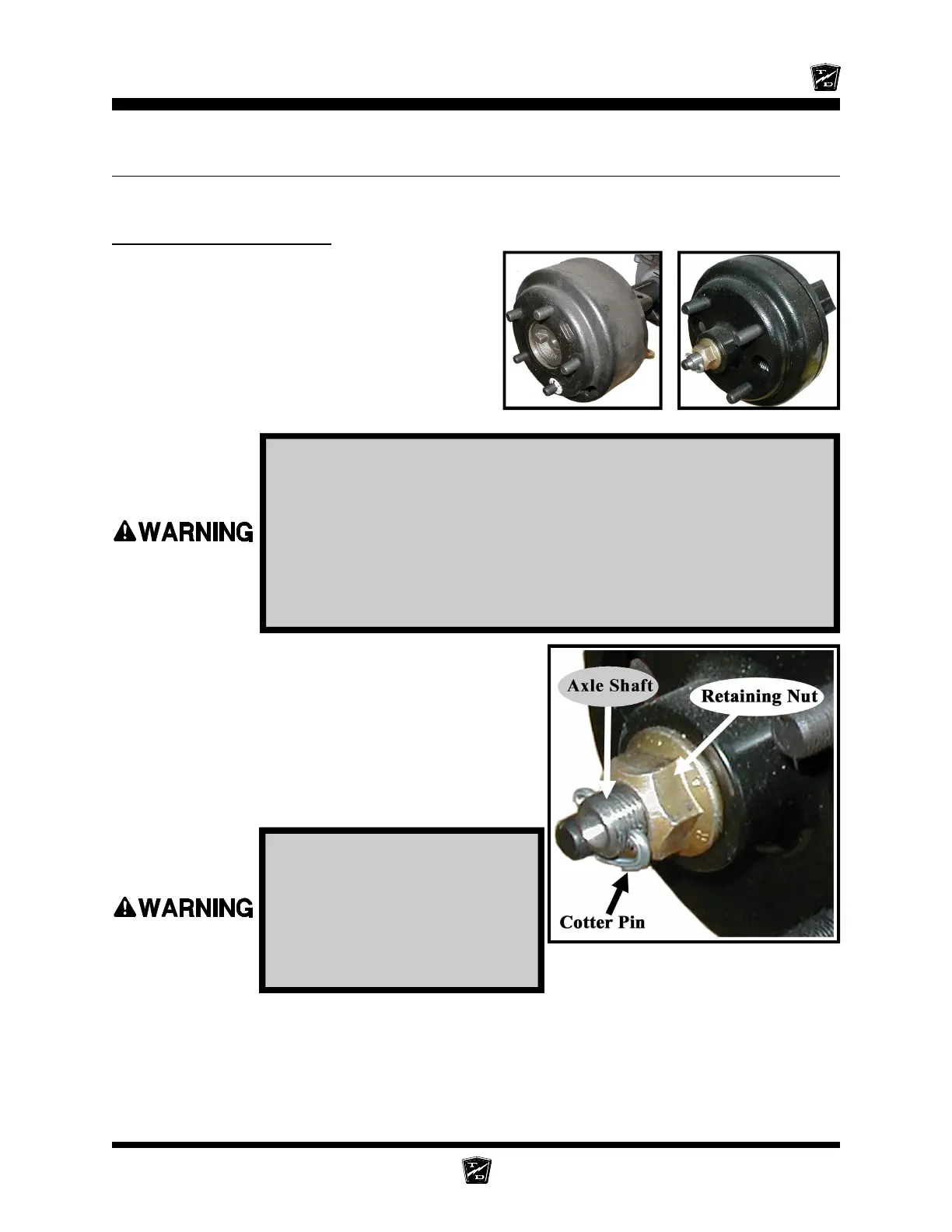

REAR HUB WITH BRAKE DRUM
Removal and Installation
NOTE: Some vehicle configurations do
not have a removable hub. The
hub is an integral part of the rear
axle. See the illustrations to the
right to identify the hub on your
vehicle.
1. Make sure the key-switch is in the “OFF” position, then remove
the key.
2. Place the forward-reverse switch in the center “OFF” position.
3. Set the park brake.
4. Place blocks under the front wheels to prevent vehicle movement.
5. Disconnect the main positive and negative cables at the batteries.
Too much grease on the axle
splines could contaminate the
braking surfaces resulting in
loss of braking power. This
could lead to severe bodily
injury and/or property
damage.
6. Remove the rear wheel. Refer to Replace the
Rear Tire/Wheel section for information regarding
removing the rear wheel.
7. Remove the cotter pin from the axle shaft.
8. Remove the hub retaining nut and remove the hub
from the axle shaft.
9. Install in reverse order.
10. Lightly grease the axle shaft splines.
11. Tighten the axle hub retaining nut to 95-115 ft-lbs.
12. Install the wheel. Refer to Replace the Rear Tire/Wheel section for information regarding
installing the rear wheel.
13. Reconnect the main positive and negative cables at the batteries, remove the blocks from the
wheels, and test drive.
Integral hub Removable hub
