Illustrated Parts
PARTS PAGE 32

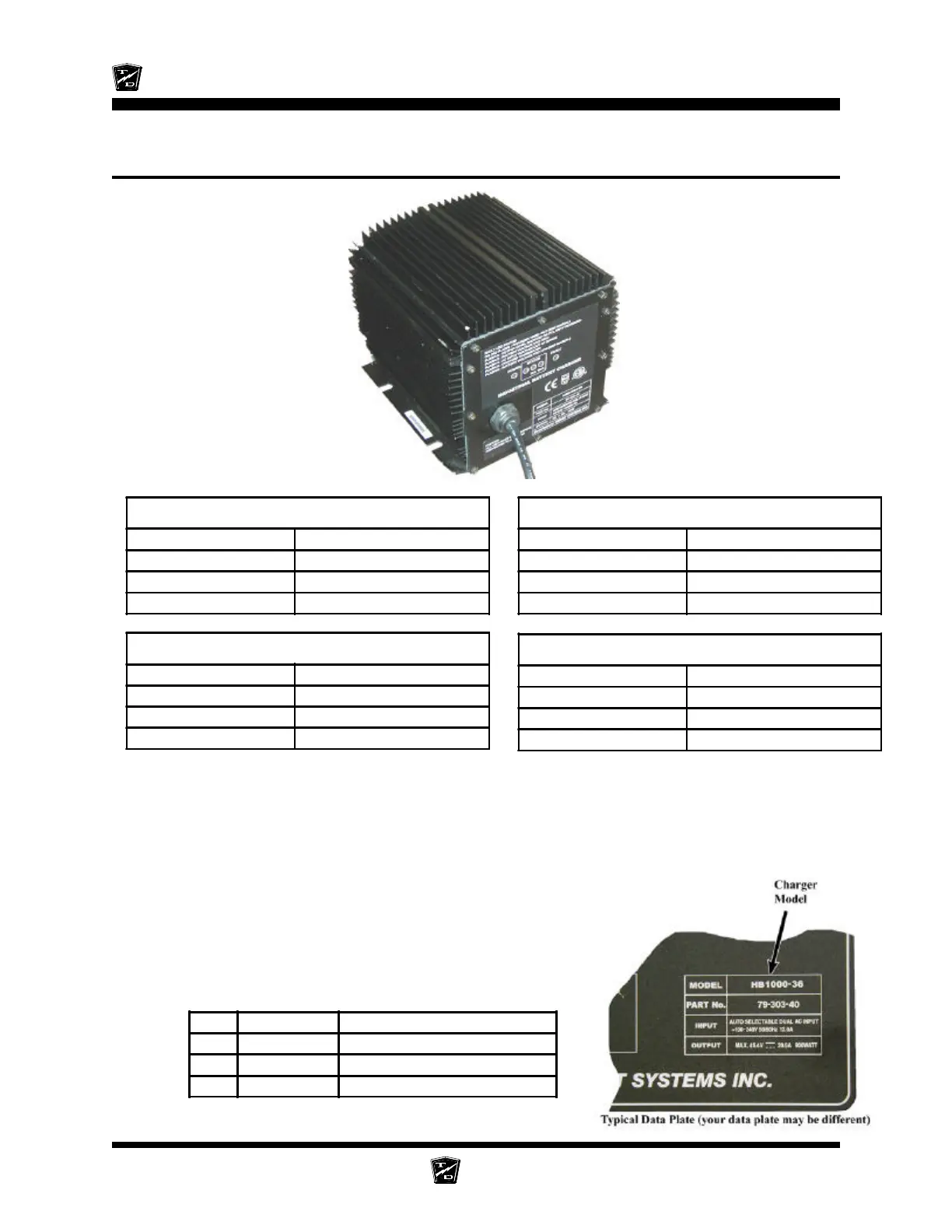

Charger, SignetCharger, Signet
NOTE: The harness connectors and AC plug are not included
with the charger.
QTY PART # DESCRIPTION
2 75-318-20 Butt splice
2 75-320-51 Knife connector
1 76-200-00 AC plug, 115v domestic
Model HBS for Flooded Batteries
PART # DESCRIPTION
* 24 volt Charger Assembly (see note)
79-303-41 36 volt Charger assembly (see note)
79-309-42 48 volt charger assembly (see note)
* - Not available at time of printing
NOTE: There are no user serviceable components inside the charger
NOTE: The charger AC cord is an intergral part of the charger. When
replacing the charger, do not cut and splice the AC cord. Cutting
the AC cord will void the charger warranty.
NOTE: The Signet model HBS series charger replaces all previous Signet
models.
Model HBS series charger shown
Model HBS for GEL Batteries
PART # DESCRIPTION
* 24 volt Charger Assembly (see note)
* 36 volt Charger assembly (see note)
* 48 volt charger assembly (see note)
Model HB for Flooded Batteries
PART # DESCRIPTION
79-302-20 24 volt Charger Assembly (see note)
79-303-40 36 volt Charger assembly (see note)
79-309-40 48 volt charger assembly (see note)
Model HB for GEL Batteries
PART # DESCRIPTION
* 24 volt Charger Assembly (see note)
K4G-CH-003 36 volt Charger assembly (see note)
79-309-41 48 volt charger assembly (see note)
