FRONT AXLE DISASSEMBLY AND ASSEMBLY
Disassembling and reassembling involves removing and replacing the left and right steering knuckles
and king pin bushings. Refer to the following sections for information regarding these procedures:
Replace the Steering Knuckle
Replace the King Pins and Bushings
NOTE: The front axle does not have to be removed unless the axle beam
must be replaced. Refer to Front Axle Removal and
Installation for information regarding removing the front axle.

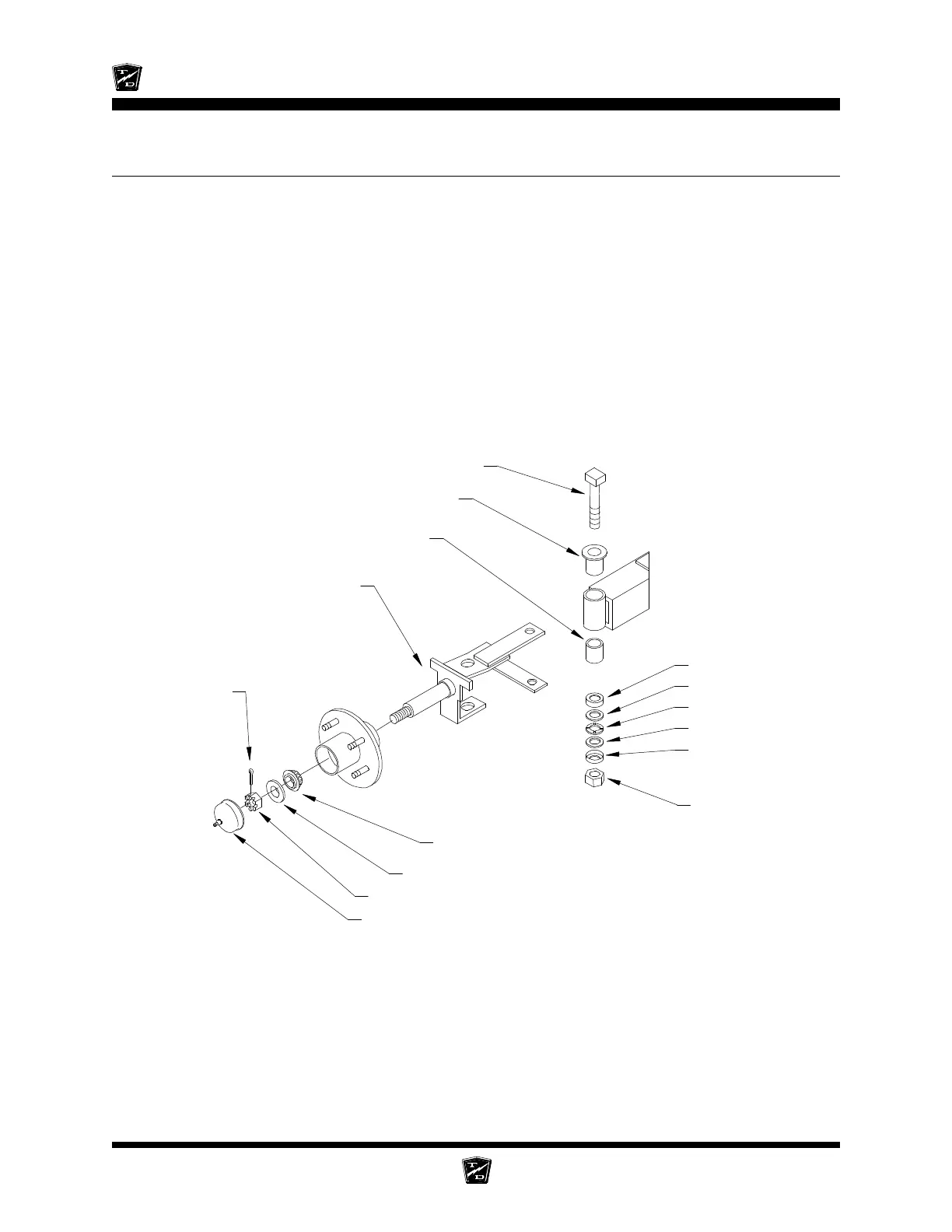

Yoke
Lower Bushing
King Pin Nut
Cotter Pin
Outer Bearing
Bearing Cap
Castle Nut
Flat Washer
Steel Washer
Bronze washer
Steel Washer
Small Cup
Large Cup
Upper Bushing
King Pin
Thrust
Washer
{
