Maintenance, Service, and Repair
Transmission Page 9
TRANSMISSION
Removal
6. Remove the motor from the transmission. Refer to Remove Motor section for information
regarding removing the motor.

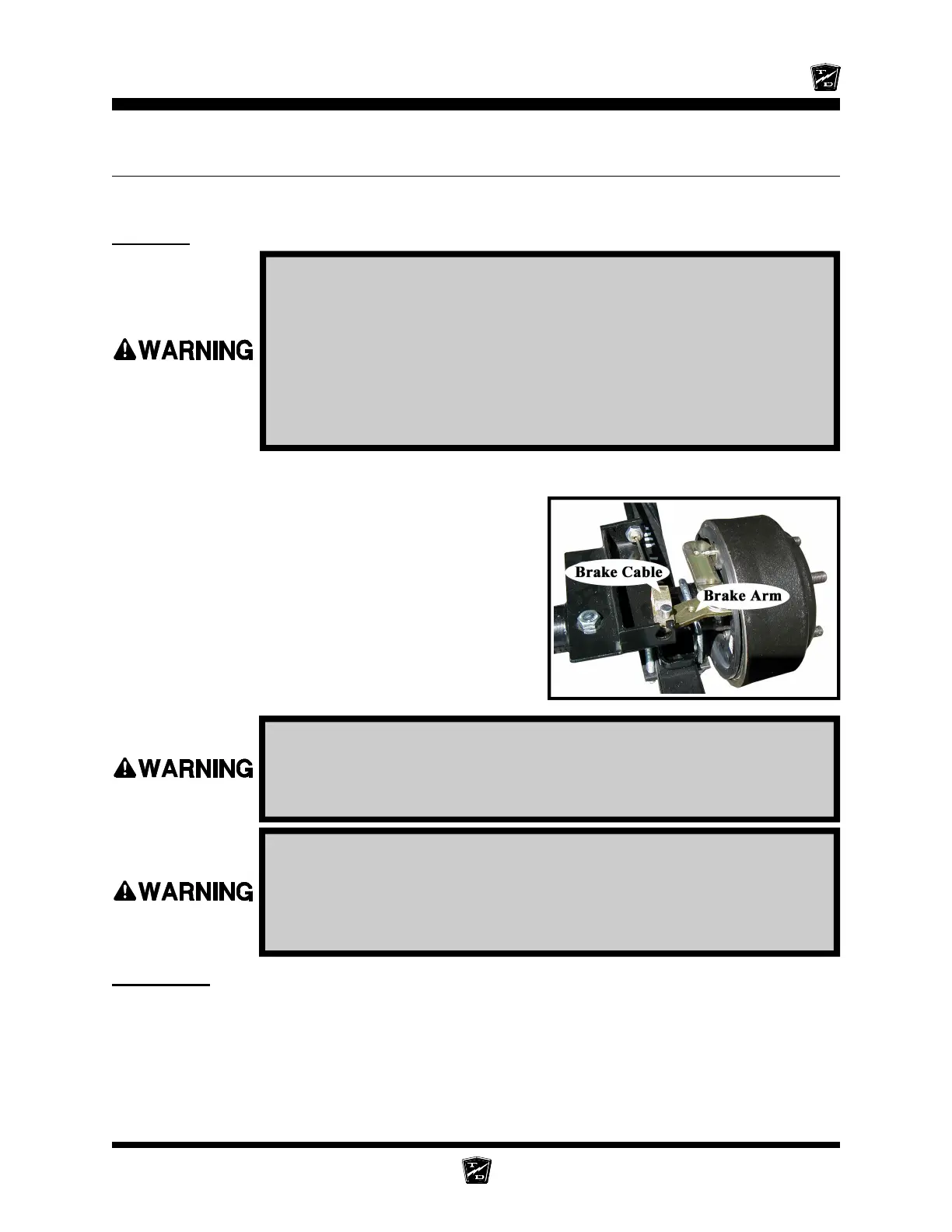

7. Disconnect the brake cables from the left and right
brake arm and cable mounting bracket.
8. Support the frame of the vehicle so it will not drop.
9. Remove the bolts and nuts holding the transmission
to the springs.
10. Lift the vehicle frame and remove the transmission
out from under the vehicle.
1. Make sure the key-switch is in the “OFF” position, then remove
the key.
2. Place the forward-reverse switch in the center “OFF” position.
3. Set the park brake.
4. Place blocks under the front wheels to prevent vehicle movement.
5. Disconnect the main positive and negative cables at the batteries.
Always use a lifting strap, hoist, and jack stands, of adequate capacity
to lift and support the vehicle. Failure to use lifting and support devices
of rated load capacity may result in severe bodily injury.
Do not let the vehicle hang from a hoist or leave the vehicle supported
only by the lifting device. Once the transmission is removed, support
the vehicle frame with jackstands of adequate capacity. Failure to
use lifting and support devices of rated load capacity may result in
severe bodily injury.
Installation
1. Install in reverse order.
2. Adjust the brakes. Refer to Adjust the Service Brakes section for information regarding adjusting
the brakes.
3. Reconnect the main positive and negative at the batteries, remove the blocks from the wheels,
and test drive.
