Maintenance, Service, and Repair
Transmission Page 13

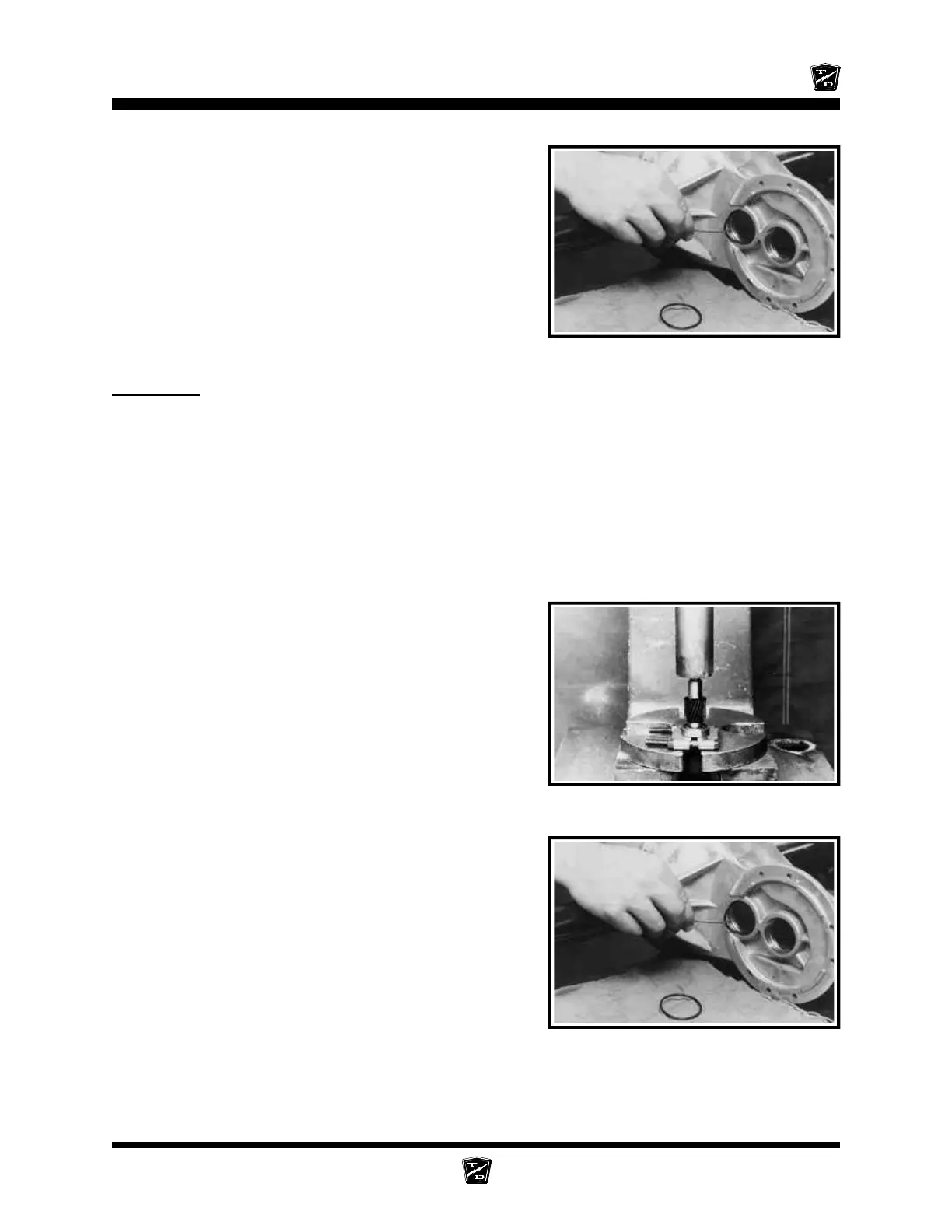

19. Remove the o-rings from both sides of the
intermediate shaft bore and the input shaft bore
and discard the o-rings.
Assemble
NOTE: When pressing bearings, do not press against or support the outer
race as this will damage the bearing.
NOTE: All snap rings should fit tightly into their grooves. If a snap ring is
loose, then it must be replaced.
NOTE: All internal components should fit easily together. Do not hit any
shaft or component with a hard metal hammer or punch.
NOTE: Pre-lube all bearings, seals and o-rings before assembly.
1. Thoroughly clean all components as well as the inside of the housing.
2. Press new bearings onto the input shaft and
differential case.
3. Insert new o-rings into both sides of the intermediate
shaft bore, the input shaft bore and the intermediate
shafts.
