Curtis PMC Troubleshooting
Page 5

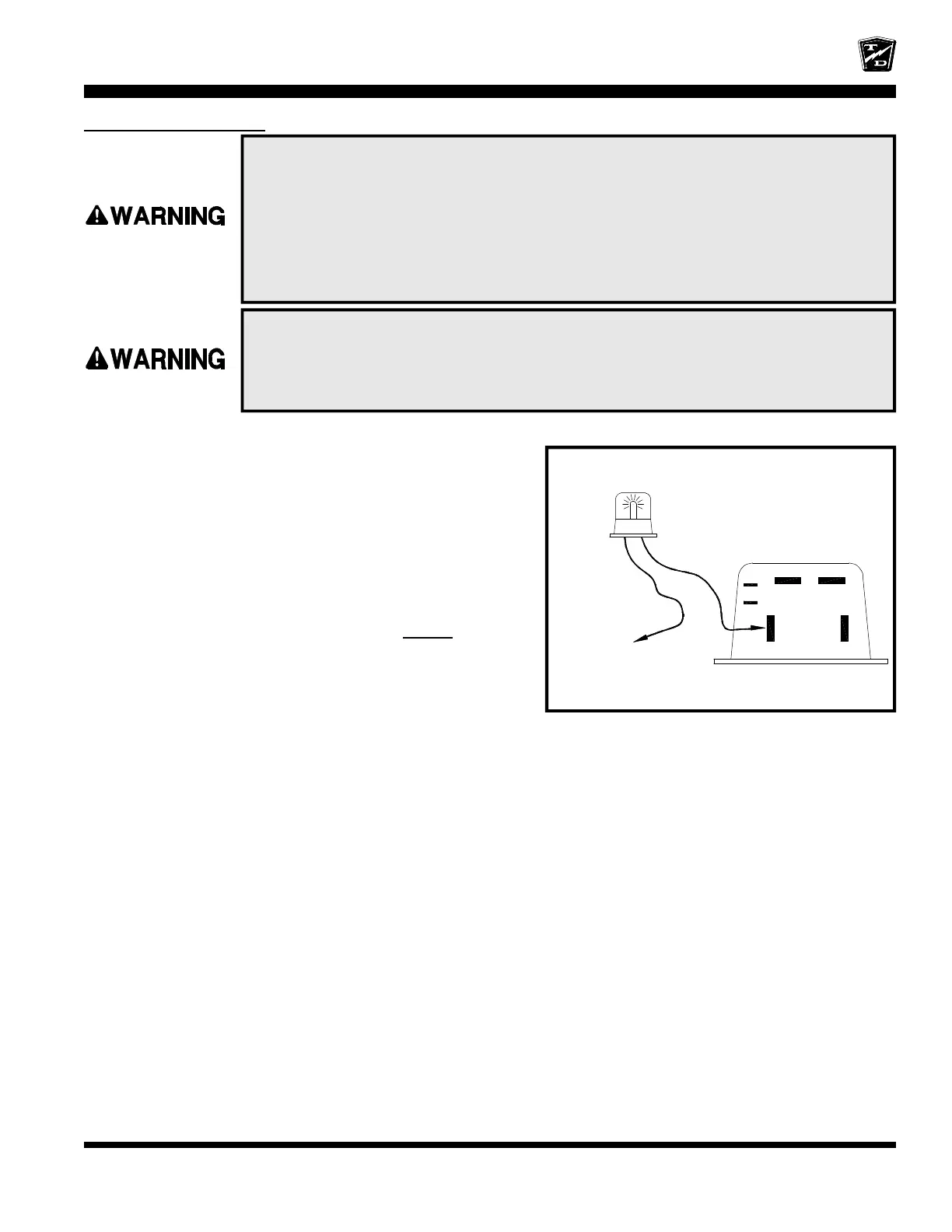

Power Output Test
Set the test light voltage to the same voltage as the battery
volts.
Connect the test light from the PMC ‘M-’ Terminal to battery
positive.
Close all interlock switches, turn the Key Switch ON, and
place the F&R Switch in Forward.
Depress the accelerator pedal fully.
•
If the light comes ON then go to the
Motor
sequence.
•
If the light does not come ON then continue with the
next test.
1. Make sure the key-switch is in the “OFF” position, then remove the key.
2. Place the forward-reverse switch in the center “OFF” position.
3. Set the park brake.
4. Place blocks under the front wheels to prevent vehicle movement.
The rear drive wheels may rotate during some of the following tests. Block the
front wheels, raise the rear drive wheels off the ground, and support the vehicle
with jack stands. Failure to do so may cause the vehicle to move and cause
severe bodily injury and/or property damage.
Rotating rear drive wheels are a potential hazard. Keep hands, arms, legs and
loose clothing away from the rear drive wheels while conducting tests. Failure
to do so may cause serious bodily injury.
Main Battery Positive
Test Light
Face of Controller
B-
M-
A2
B+
#2
KSI
To Next Page
