WARNING IEEE 488/RS232 OPTION
There is a potential shock hazard at the RS232
-
485 and the IEEE port
s when using
power supplies with rated or combined voltage greater than 400V and the Positive
Output of the Power Supply is grounded. Do Not connect the Positive Output to ground
when using the RS232/485 or IEEE.
1.4 MODEL NUMBER FORMAT

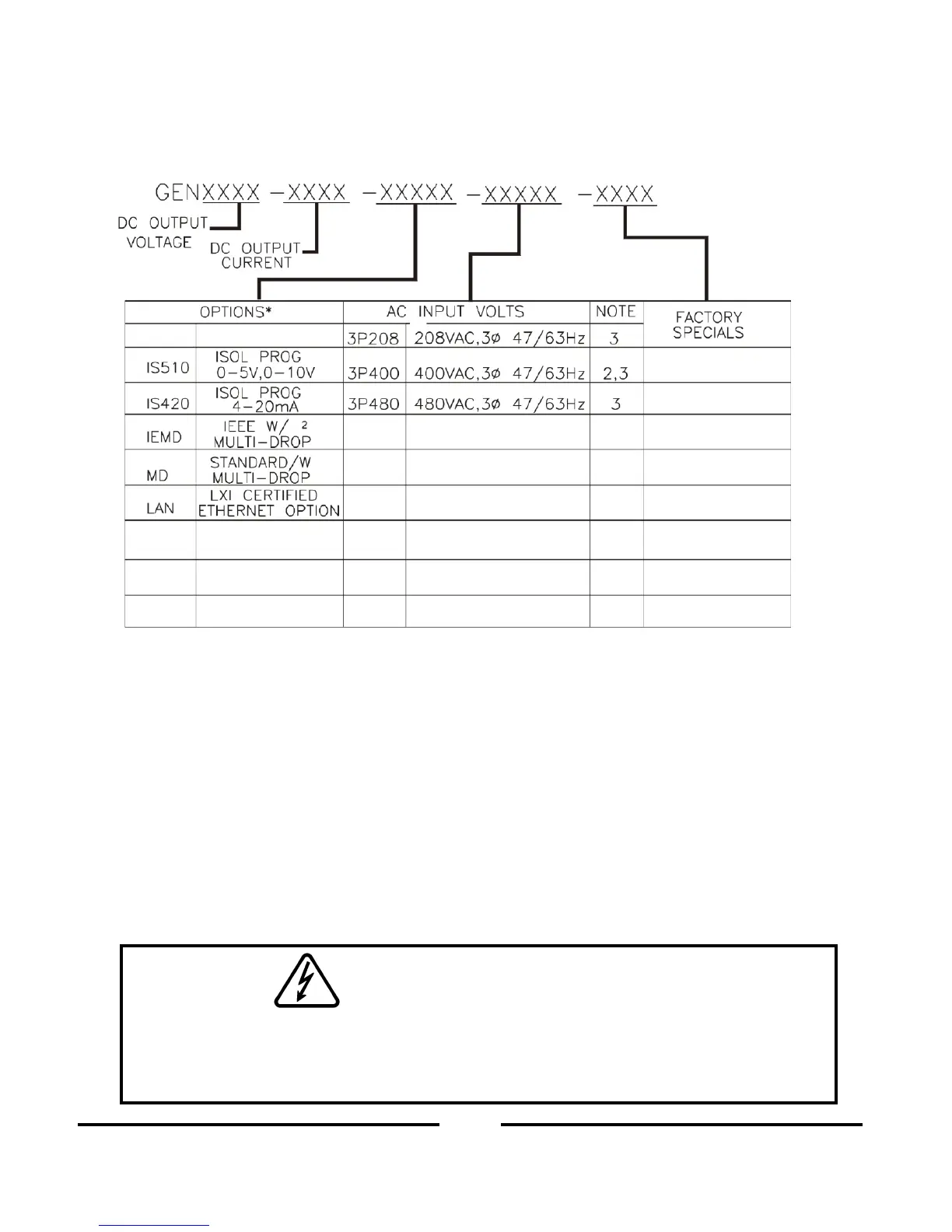

The model numbering system for Genesys
TM
power supply includes symbols for features and o
p-
tions. They are separated by dashes
.
The following chart explains the model number for the GEN Power Supply Family.
* Factory Installed. Limit one (1) per Power Supply.
Note 1:
See Specifications for Input Range.
Note 2:
CE Mark with IEMD to 400VDC Output, without IEMD to 600VDC
Note 3:
All 3

are four wire input = 3

+ GND (No Neutral).
Note 4:
Analog Meters are
NOT
available.
Note 5:
IS510, IS420, IEMD, or LAN may not be installed together.
EXAMPLES:
GEN10
-
1000
-
3P208
GEN10
-
1000
-
IEMD
-
3P400
