7.4 CONNECTING POWER SUPPLIES TO RS232 BUS
7.4.1 Single power supply
1. Select the desired interface RS232 or RS485 using rear panel setup switch SW1
-
6 (Section 4
-
4).
-
RS232: Down position
-
RS485: Up position
2. Connect rear panel IN connector
to the controller RS232 or RS485 port using a suitable shielded
c
a
ble.

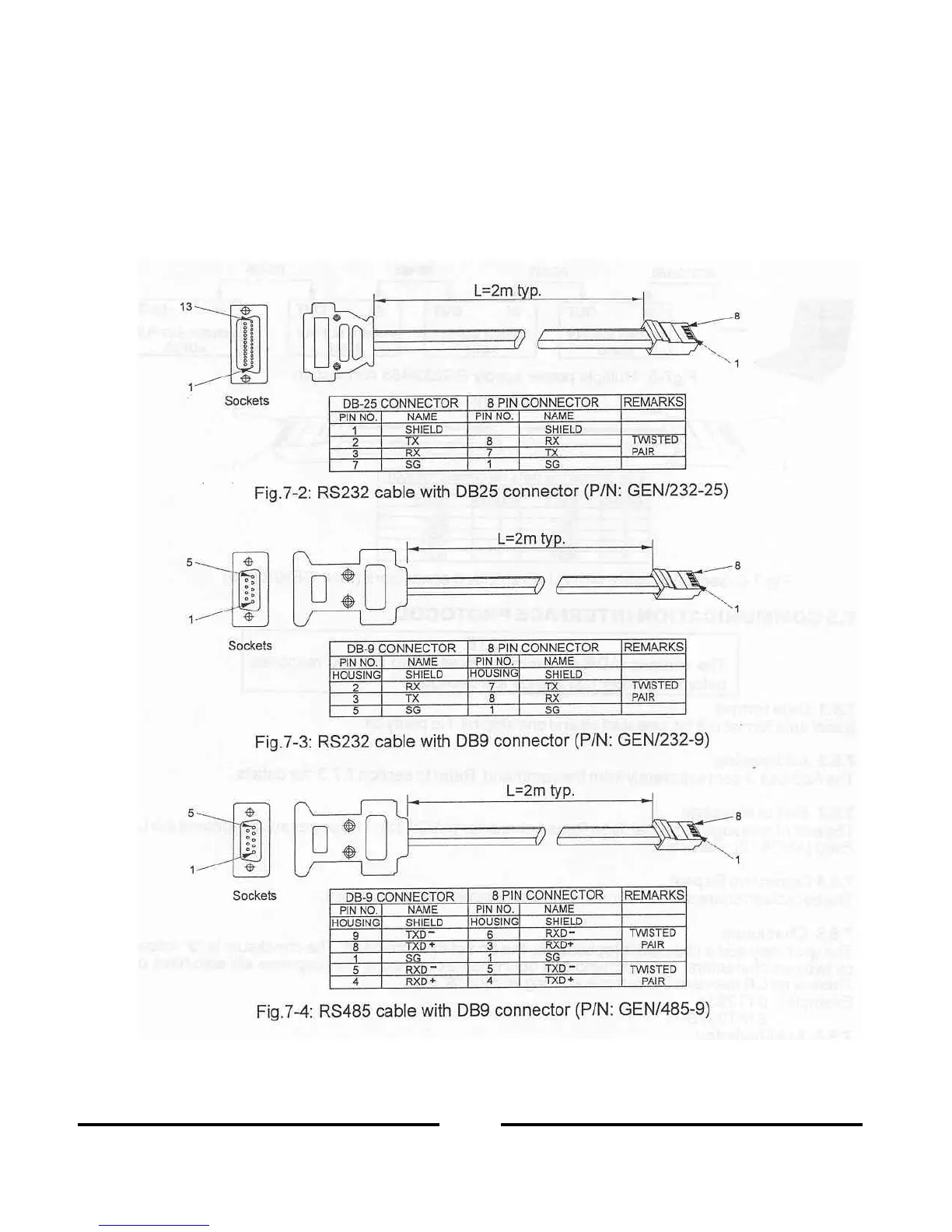

Refer
to
Figures 7
-
2, 7
-
3 and 7
-
4 for available RS232 and RS485 cables.
